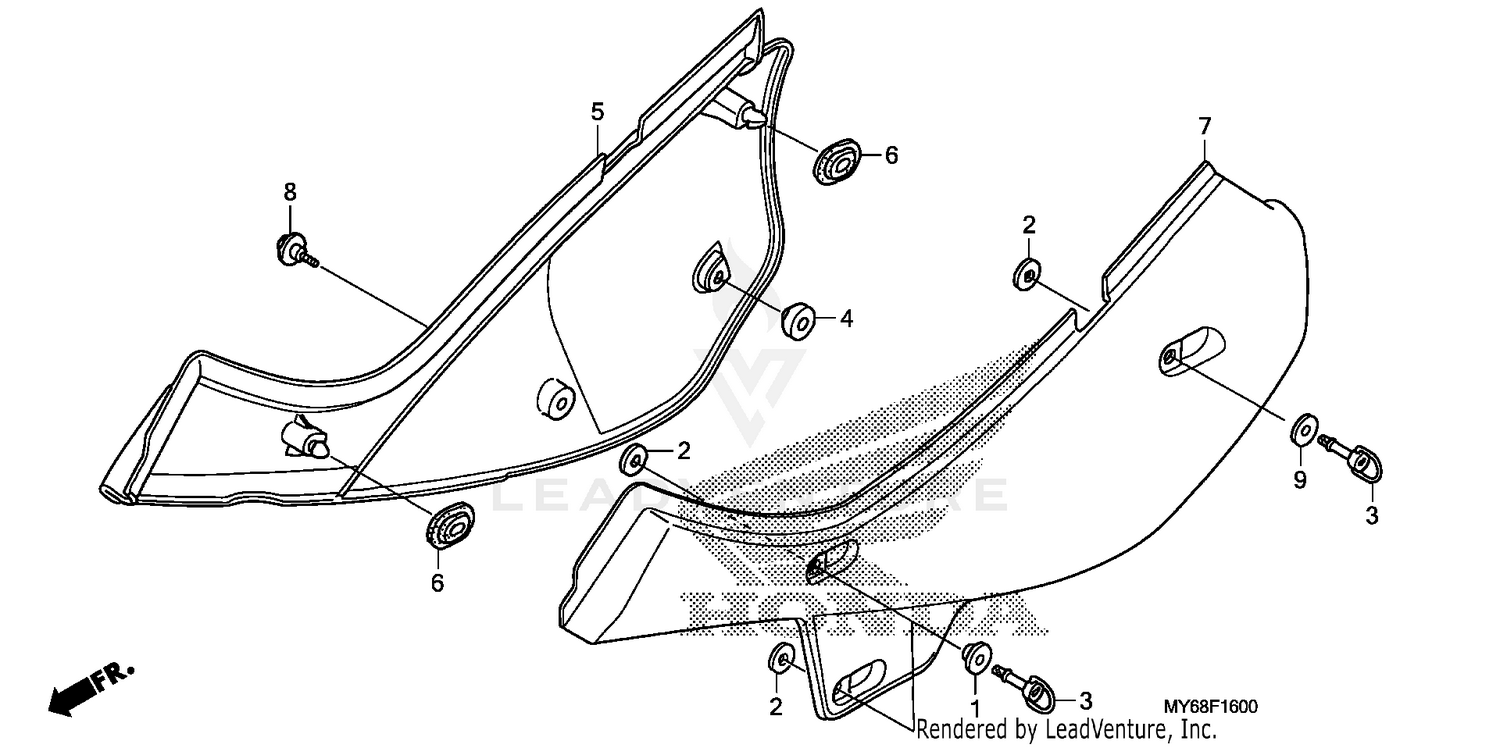

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, AIR CLEANER COVER SETTING
17223-KN5-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (5.4X14X0.5)
90505-MY6-920
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD (6X21)
17225-KN5-671
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, SIDE COVER (PD)
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER SET, R. SIDE *NH196* (WOL) (ROSS WHITE)
83520-MY6-920ZB
|
$102.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER SET, L. SIDE *NH196* (WL) (ROSS WHITE)
83620-MY6-920ZB
|
$109.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6MM)
90111-KM1-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN (7MM)
90501-KV6-670
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
