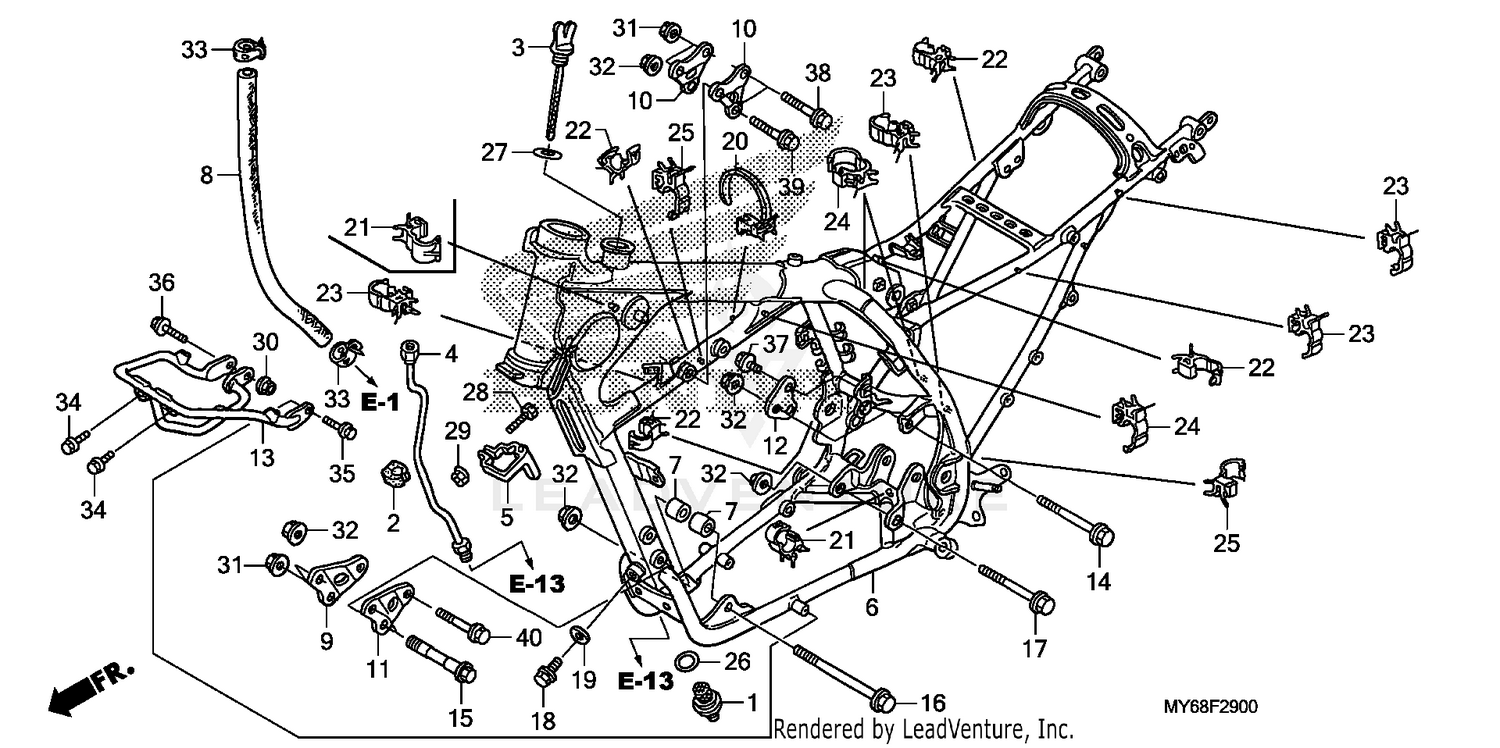

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STRAINER, OIL
15500-MN1-670
|
$56.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, OIL PIPE
15603-KT1-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-MG3-000
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, OIL
15710-MY6-670
|
$66.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, OIL PIPE
15711-MN1-700
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRAME *NH146M* (ACCURATE SILVER METALLIC)
50100-MY6-A00ZA
|
$2,653.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, ENGINE HANGER (LOWER)
50140-MK5-680
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, BREATHER
50185-KCY-670
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, R. FR. ENGINE HANGER
50221-MN1-670
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, ENGINE HANGER (UPPER)
50222-MN9-650
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, L. FR. ENGINE HANGER
50223-MN1-670
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, R. RR. ENGINE HANGER (UPPER)
50224-MN1-670
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SKID *NH146M* (ACCURATE SILVER METALLIC)
50360-MY6-670ZB
|
$184.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, ALTERNATOR
90057-671-000
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X78)
90112-KN5-670
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X105)
90116-MN1-670
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X110)
90117-MN1-670
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, DRAIN PLUG
90131-ZE1-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP, HARNESS BAND (15)
90690-GHB-601
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CABLE (8MM)
90690-GHB-631
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CABLE (10MM) CLIP, CABLE (8MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (25X3)
91305-MN1-670
Superseded by 91305-384-750
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (25X3)
91305-384-750
|
$3.55 | ||
|
Unavailable |
|||
|
#27
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. (5X22)
92101-05022-0G
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE (5MM)
94050-05070
|
$1.35 | ||
|
Unavailable |
|||
|
#30
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP, TUBE (D12.5)
95002-41250-00
|
$1.53 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X70)
96300-06070-00
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X18)
96300-08018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (8X65)
96400-08065-00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (10X65)
96400-10065-00
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (10X75)
96400-10075-00
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
