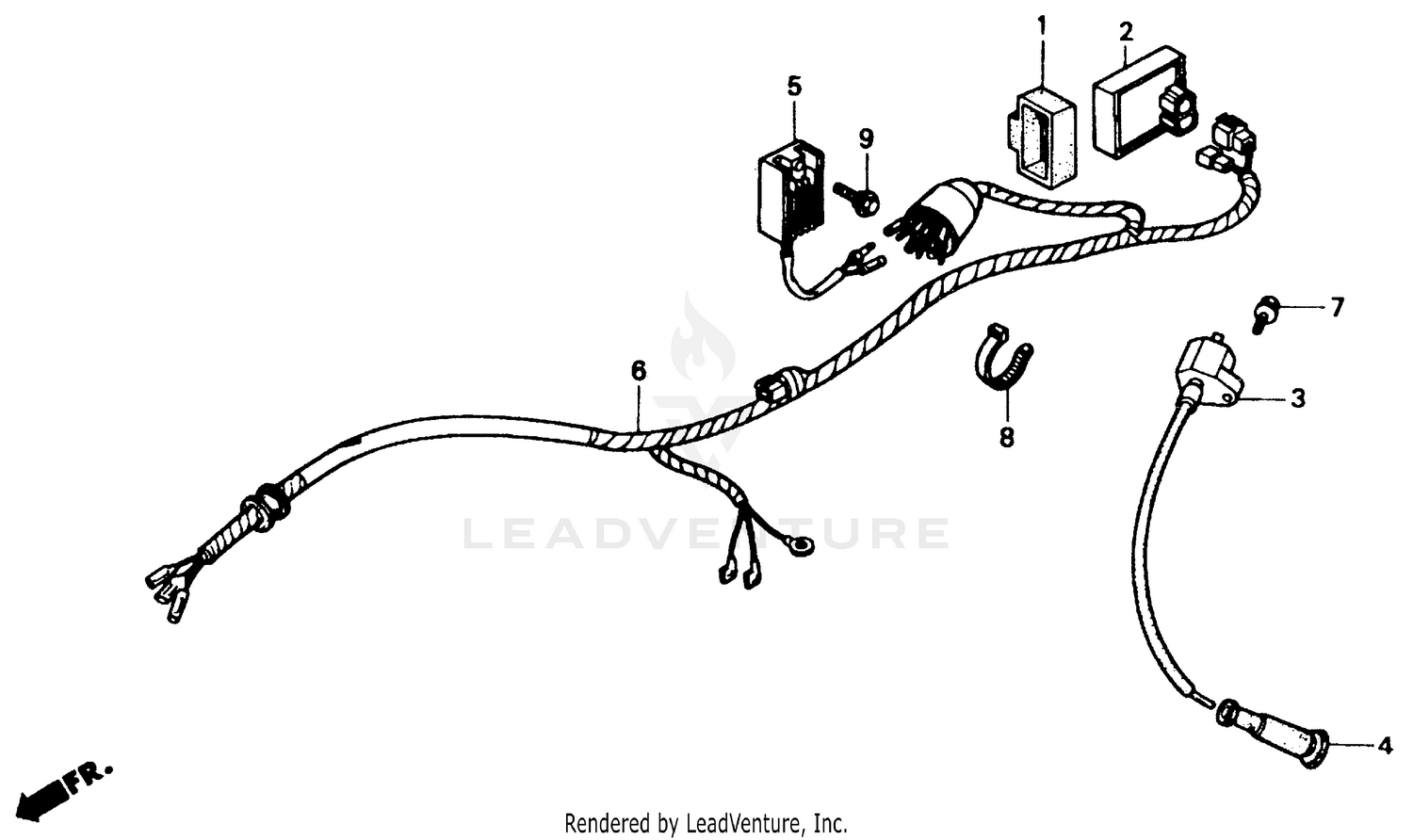

Wire Harness 88-92 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KK0-770
Superseded by 30401-KT1-670
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-MN1-670
|
$162.09 | ||
|
Unavailable |
|||
|
#3
COIL ASSY., IGNITION
30510-GF9-405
|
$102.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30510-MN1-670
Superseded by 30510-GF9-405
|
$102.18 | ||
|
Unavailable |
|||
|
#4
CAP ASSY,NOISE SU
30700-KF0-153
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#4
CAP ASSY,NOISE SU
30700-KF0-163
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#4
CAP ASSY,NOISE SU
30700-MK4-611
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#5
REGULATOR, A.C.
31400-MN1-640
|
$121.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
REGULATOR, A.C.
31400-MN1-670
Superseded by 31400-MN1-640
|
$121.29 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS
32100-MN1-670
|
$76.15 | ||
|
Unavailable |
|||
|
#7
BOLT-WASHER (5X20)
90189-MG3-000
|
$3.05 | ||
|
Unavailable |
|||
|
#8
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X30)
96300-06030-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X30)
96500-06030-00
Superseded by 96300-06030-00
|
$2.29 | ||
|
Unavailable |
|||
