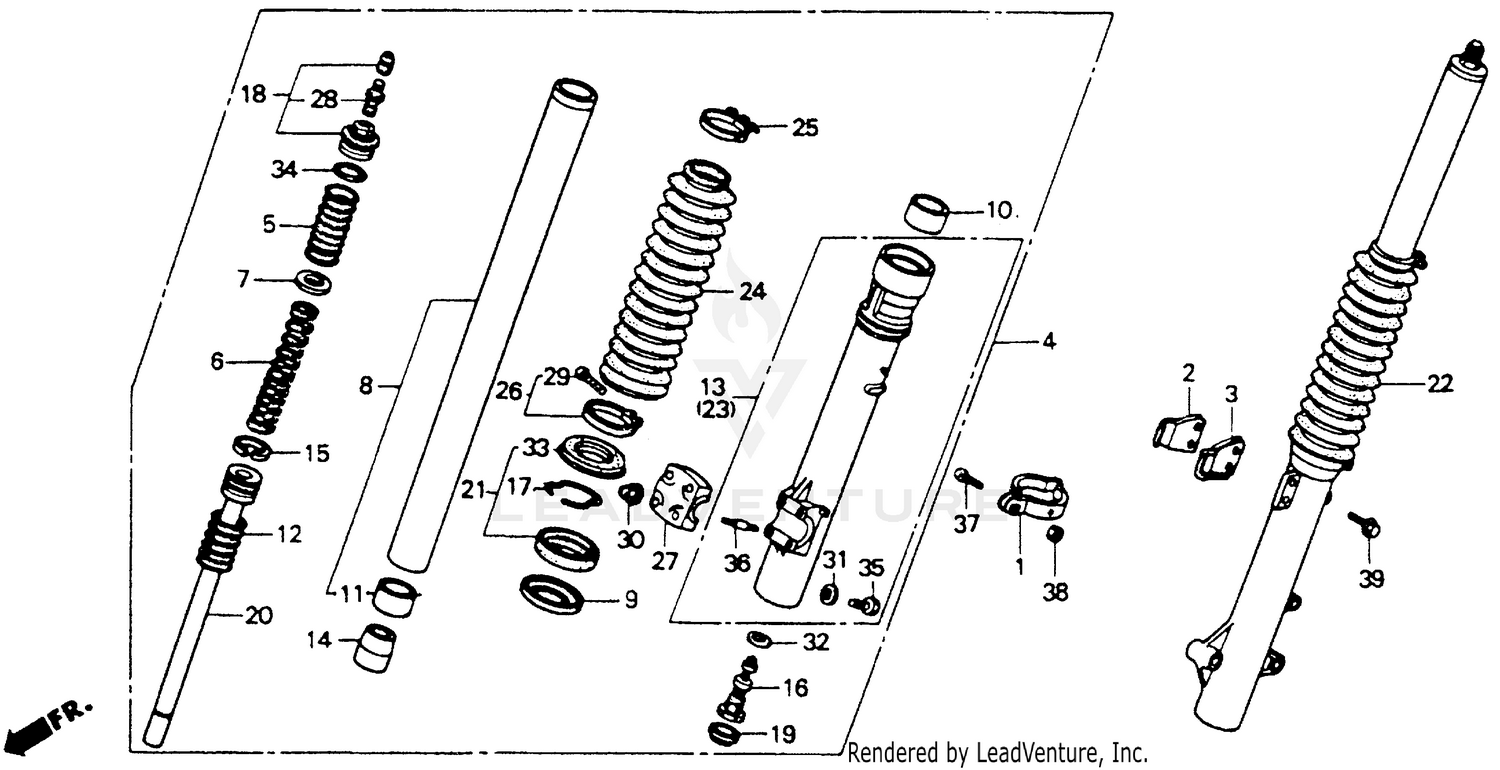

Front Fork 88-90 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, SPEEDOMETER CABLE
44832-KT1-670
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP A, FR. BRAKE CABLE
45461-KG0-000
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP B, FR. BRAKE CABLE
45462-KG0-000
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
FORK ASSY., R. FR. *R119* (SHOWA) (FLASH RED)
51400-MN1-671ZA
|
$927.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING A, FR. FORK
51401-MN1-671
|
$17.92 | ||
|
Unavailable |
|||
|
#6
SPRING B, FR. FORK
51402-MN1-671
|
$62.07 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING
51405-KA4-711
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FR. FORK
51410-MN1-671
|
$346.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, BACK-UP
51412-KA4-711
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, GUIDE
51414-MAZ-751
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, GUIDE
51414-MN1-671
Superseded by 51414-MAZ-751
|
$8.96 | ||
|
Unavailable |
|||
|
#11
BUSH, SLIDER
51415-MN1-671
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
51416-KA4-831
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, R. (LOWER)
51420-MN1-671
|
$343.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIECE, OIL LOCK (SHOWA)
51432-KA4-831
|
$13.85 | ||
|
Unavailable |
|||
|
#15
RING, PISTON (SHOWA)
51437-KA4-711
|
$9.93 | ||
|
Unavailable |
|||
|
#16
BOLT, CENTER
51441-MN1-671
|
$42.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)
51450-KA4-711
|
$59.92 | ||
|
Unavailable |
|||
|
#19
CAP, FR. FORK (SHOWA)
51461-KA4-831
|
$5.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIPE, SEAT
51470-MN1-671
|
$80.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL SET, FR. FORK (SHOWA)
51490-KA4-831
|
$36.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
FORK ASSY., L. FR. *R119* (SHOWA) (FLASH RED)
51500-MN1-671ZA
|
$927.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE, L. (LOWER)
51520-MN1-671
|
$343.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT, FR. FORK *R119* (FLASH RED)
51611-MN1-671ZA
|
$41.49 | ||
|
Unavailable |
|||
|
#25
BAND, BOOT (UPPER) (SHOWA)
51612-KA4-831
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, BOOT (LOWER) (SHOWA)
51613-MK2-003
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, AXLE
51634-MA0-003
|
$45.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
CORE, VALVE
52426-381-771
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (3.5X25)
90202-MK2-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, SPECIAL (NOT AVAILABLE)
90544-KA4-831
|
$2.00 | ||
|
Unavailable |
|||
|
#33
DUST SEAL, FR. FORK
91254-KA4-831
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (35.2X2.4)
91356-KA4-711
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX. (6X8)
92201-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#36
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (5X25)
93500-05025-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, HEX. (5MM)
94001-05070-0S
|
$1.08 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
