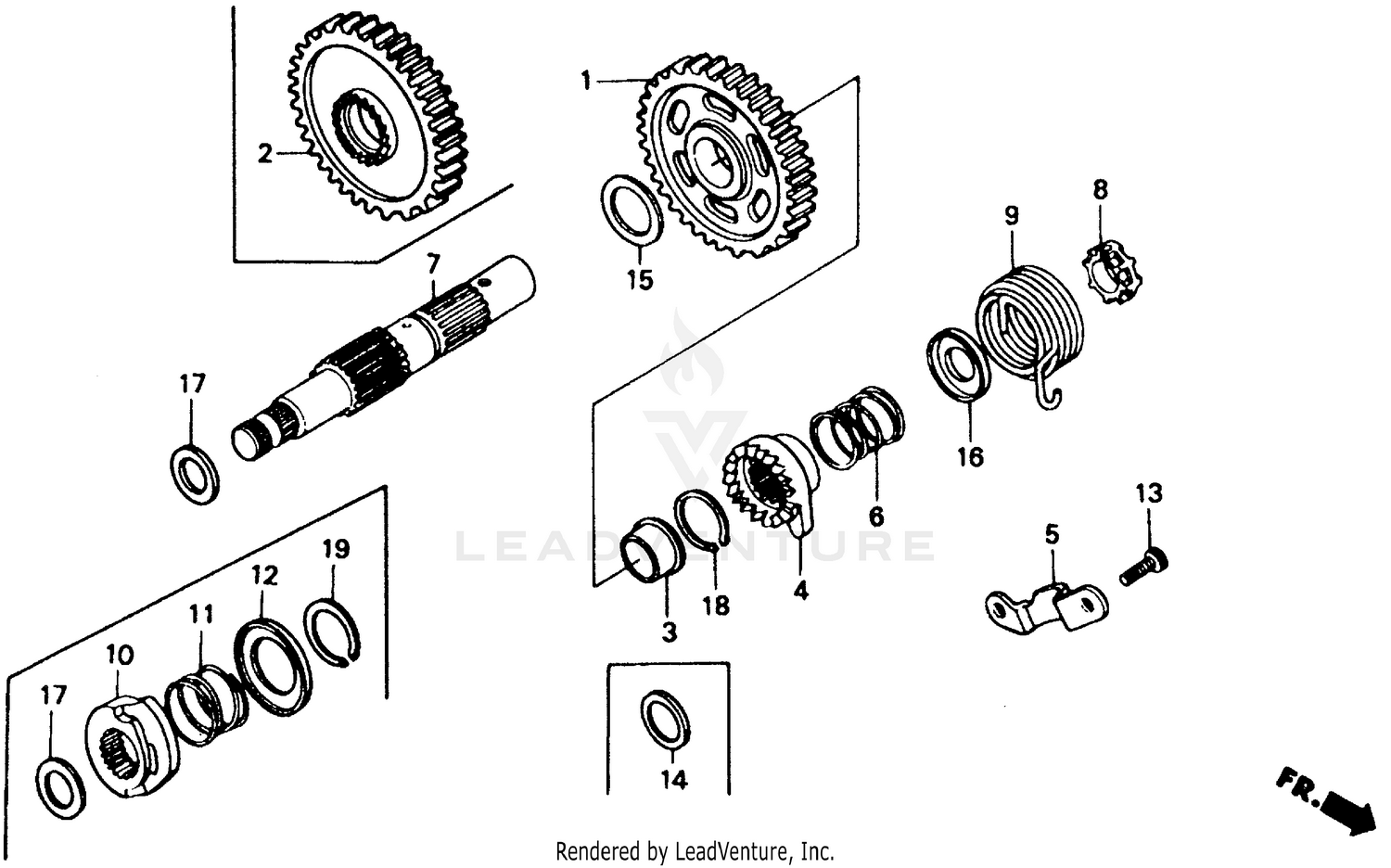

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, ONLY KICK (36T)
28211-MN1-670
|
$178.12 | ||
|
Unavailable |
|||
|
#3
COLLAR, KICK START
28212-MK2-680
|
$18.75 | ||
|
Unavailable |
|||
|
#4
RATCHET, KICK STARTER
28213-KCY-670
|
$47.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
RATCHET, KICK STARTER
28213-MN1-670
Superseded by 28213-KCY-670
|
$47.44 | ||
|
Unavailable |
|||
|
#5
PLATE, KICK STOPPER
28215-MK2-000
|
$12.81 | ||
|
Unavailable |
|||
|
#6
SPRING, KICK STARTER RATCHET
28223-KF0-004
|
$3.38 | ||
|
Unavailable |
|||
|
#7
SPINDLE, KICK STARTER
28250-MG3-000
|
$153.07 | ||
|
Unavailable |
|||
|
#8
COLLAR, KICK STARTER
28255-MG3-010
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, KICK STARTER
28261-MK2-000
|
$16.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (8X20)
90131-MA7-000
|
$4.21 | ||
|
Unavailable |
|||
|
#15
WASHER, THRUST (22X40X1)
90452-VM0-000
|
$6.51 | ||
|
Unavailable |
|||
|
#16
WASHER, KICK RATCHET SPRING
90501-KF0-000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (20MM)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (20X1.00)
90554-700-000
Superseded by 90454-428-000
|
$3.04 | ||
|
Unavailable |
|||
|
#18
CIRCLIP (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
