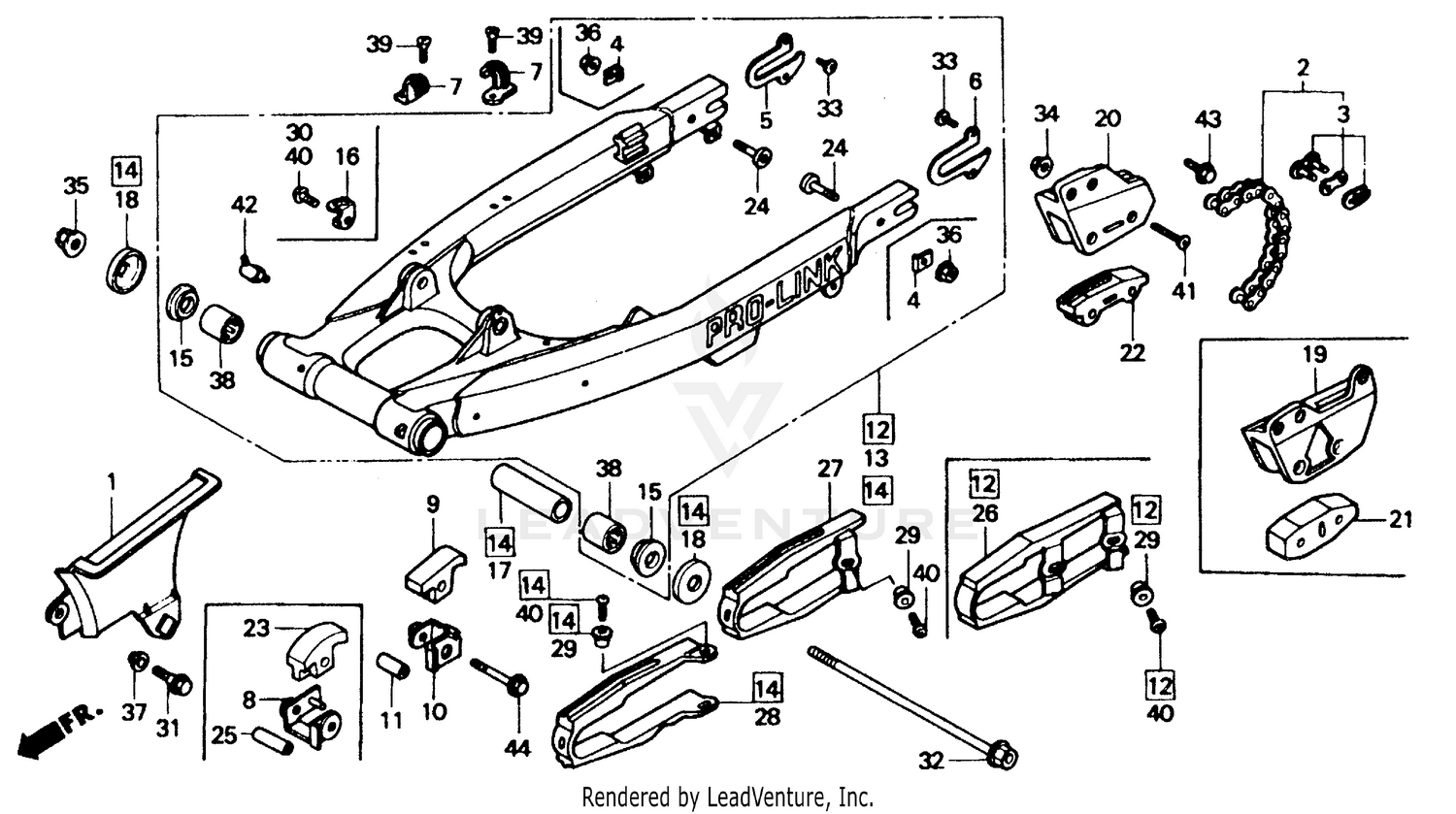

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN (NOT AVAILABLE)
40510-KN5-670
|
$14.61 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (520K0-108FJ)
40530-MK2-005
Superseded by 405W3-MN1-505
|
$173.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (520K0-108FJ) (DAIDO)
405W3-MN1-505
|
$173.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (520K0-108FJ)
40530-MK2-003
Superseded by 405W3-MN1-505
|
$173.18 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (TAKASAGO)
40531-MK2-005
|
$5.08 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (DAIDO)
40531-MK2-003
|
$5.08 | ||
|
Unavailable |
|||
|
#4
CLAMP, CHAIN ADJUSTER (NOT AVAILABLE)
40546-KN5-000
|
$3.01 | ||
|
Unavailable |
|||
|
#5
WASHER, R. RR. SWINGARM
42307-KT1-770
|
$28.74 | ||
|
Unavailable |
|||
|
#6
WASHER, L. RR. SWINGARM
42308-KT1-770
|
$33.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, TENSIONER
50143-MA0-770
|
$16.76 | ||
|
Unavailable |
|||
|
#12
SWINGARM ASSY., RR. (WL)
52100-MK2-680
|
$715.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, PIVOT THRUST
52109-430-300
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOOK, BRAKE SPRING
52115-KN5-000
|
$3.35 | ||
|
Unavailable |
|||
|
#17
COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)
52141-KF0-000
|
$51.51 | ||
|
Unavailable |
|||
|
#18
CAP, DUST SEAL (NOK)
52144-268-000
Superseded by 52144-356-005
|
$20.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CAP, DUST SEAL (NOK)
52144-286-000
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#18
CAP, DUST SEAL (NOK)
52144-329-000
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#18
CAP, DUST SEAL (NOK)
52144-356-003
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#18
CAP, SWINGARM DUST SEAL (NOK)
52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#19
GUIDE, CHAIN
52146-KT1-770
|
$45.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLIDER, CHAIN GUIDE
52147-KN5-005
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
SLIDER, CHAIN
52155-KK0-771
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CHAIN ADJUSTING (NOT AVAILABLE)
52156-KN5-000
|
$3.54 | ||
|
Unavailable |
|||
|
#25
COLLAR, CHAIN ROLLER
52159-169-000
|
$3.92 | ||
|
Unavailable |
|||
|
#26
SLIDER, CHAIN
52170-KT1-770
|
$77.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW, PAN (5X12)
90109-MK5-000
|
$1.92 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X14)
96300-06014-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, RR. SWINGARM PIVOT
90121-KN5-000
|
$59.35 | ||
|
Unavailable |
|||
|
#33
SCREW, FLAT (5X4)
90124-KA3-711
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER (6X20)
90512-300-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, SWINGARM PIVOT (NTN)
91071-MA0-003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RR. SWINGARM PIVOT (TOYO)
91071-MA0-004
Superseded by 91071-MA0-003
|
$40.11 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, FLAT (6X45)
93600-06045-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#42
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X45)
96300-06045-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
