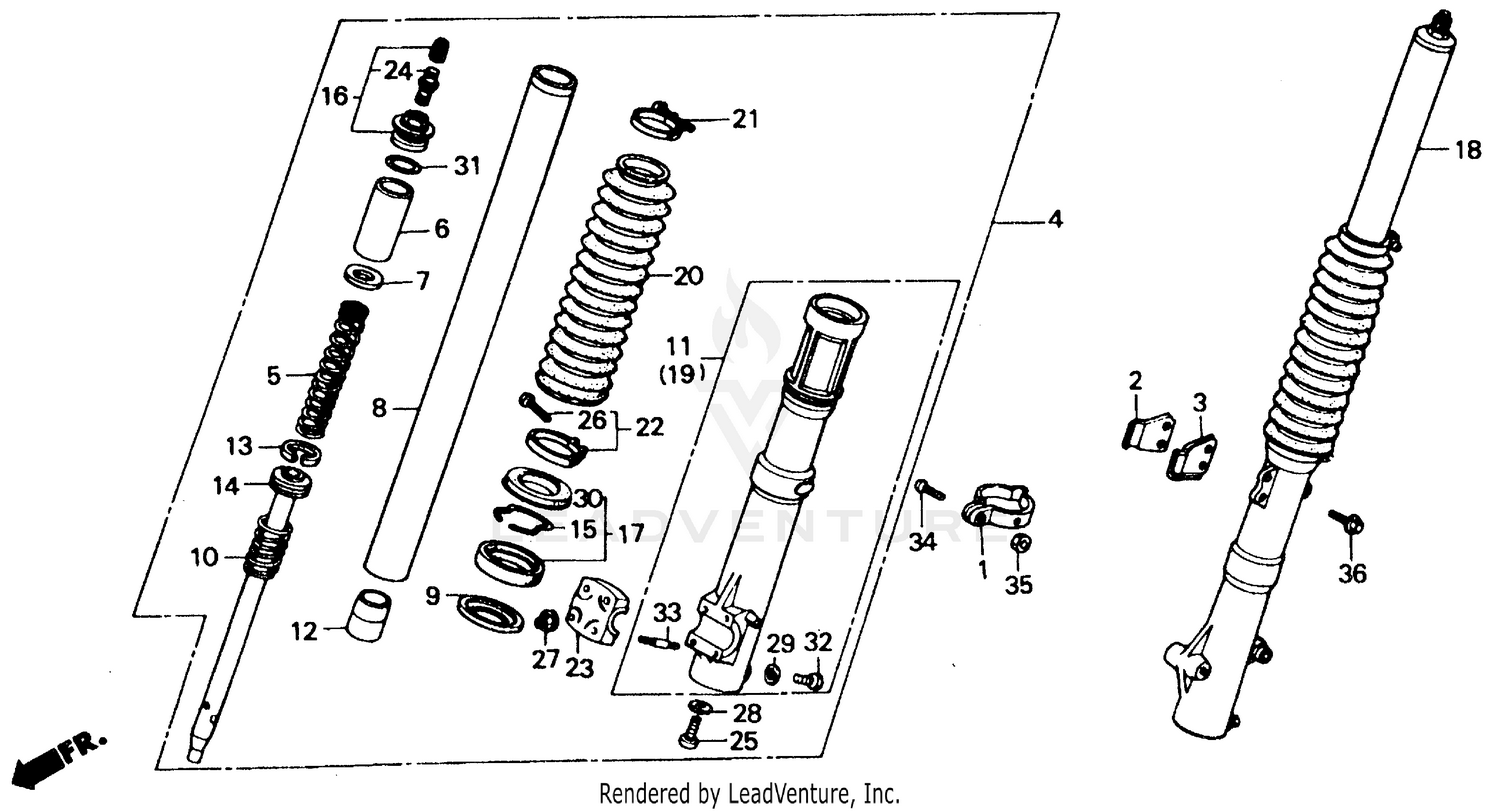

Front Fork 85-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)
44832-MG3-000
|
$5.69 | ||
|
Unavailable |
|||
|
#2
CLAMP A, FR. BRAKE CABLE
45461-MG3-650
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP B, FR. BRAKE CABLE
45462-MG3-650
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
FORK ASSY., R. FR. (SHOWA)
51400-MK2-771
|
$864.53 | ||
|
Unavailable |
|||
|
#5
SPRING, FR. FORK (NOT AVAILABLE)
51401-MK2-003
|
$44.55 | ||
|
Unavailable |
|||
|
#6
SPACER, SPRING (SHOWA)
51404-KA4-731
|
$8.55 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING
51405-KA4-711
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FR. FORK (NOT AVAILABLE)
51410-MK2-003
|
$272.32 | ||
|
Unavailable |
|||
|
#9
RING, BACK-UP
51412-KA4-711
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FR. REBOUND
51416-KA4-711
|
$10.31 | ||
|
Unavailable |
|||
|
#11
CASE, R. (LOWER)
51420-MK2-003
|
$332.24 | ||
|
Unavailable |
|||
|
#12
PIECE, OIL LOCK
51432-KF0-003
|
$23.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, PISTON (SHOWA)
51437-KA4-711
|
$9.93 | ||
|
Unavailable |
|||
|
#14
PIPE, SEAT
51440-MK2-771
|
$49.20 | ||
|
Unavailable |
|||
|
#15
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)
51450-KA4-711
|
$59.92 | ||
|
Unavailable |
|||
|
#17
SEAL SET, FR. FORK (SHOWA)
51490-KA4-831
|
$36.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
FORK ASSY., L. FR. (SHOWA)
51500-MK2-771
|
$864.53 | ||
|
Unavailable |
|||
|
#19
CASE, L. (LOWER)
51520-MK2-003
|
$286.58 | ||
|
Unavailable |
|||
|
#20
BOOT, FR. FORK (SHOWA)
51611-KA4-831
|
$67.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, BOOT (UPPER) (SHOWA)
51612-KA4-831
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, BOOT (LOWER) (SHOWA)
51613-MK2-003
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, AXLE
51634-MA0-003
|
$45.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
CORE, VALVE
52426-381-771
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SOCKET (8X27)
90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (3.5X25)
90202-MK2-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
DUST SEAL, FR. FORK
91254-KA4-831
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (35.2X2.4)
91356-KA4-711
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#33
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
