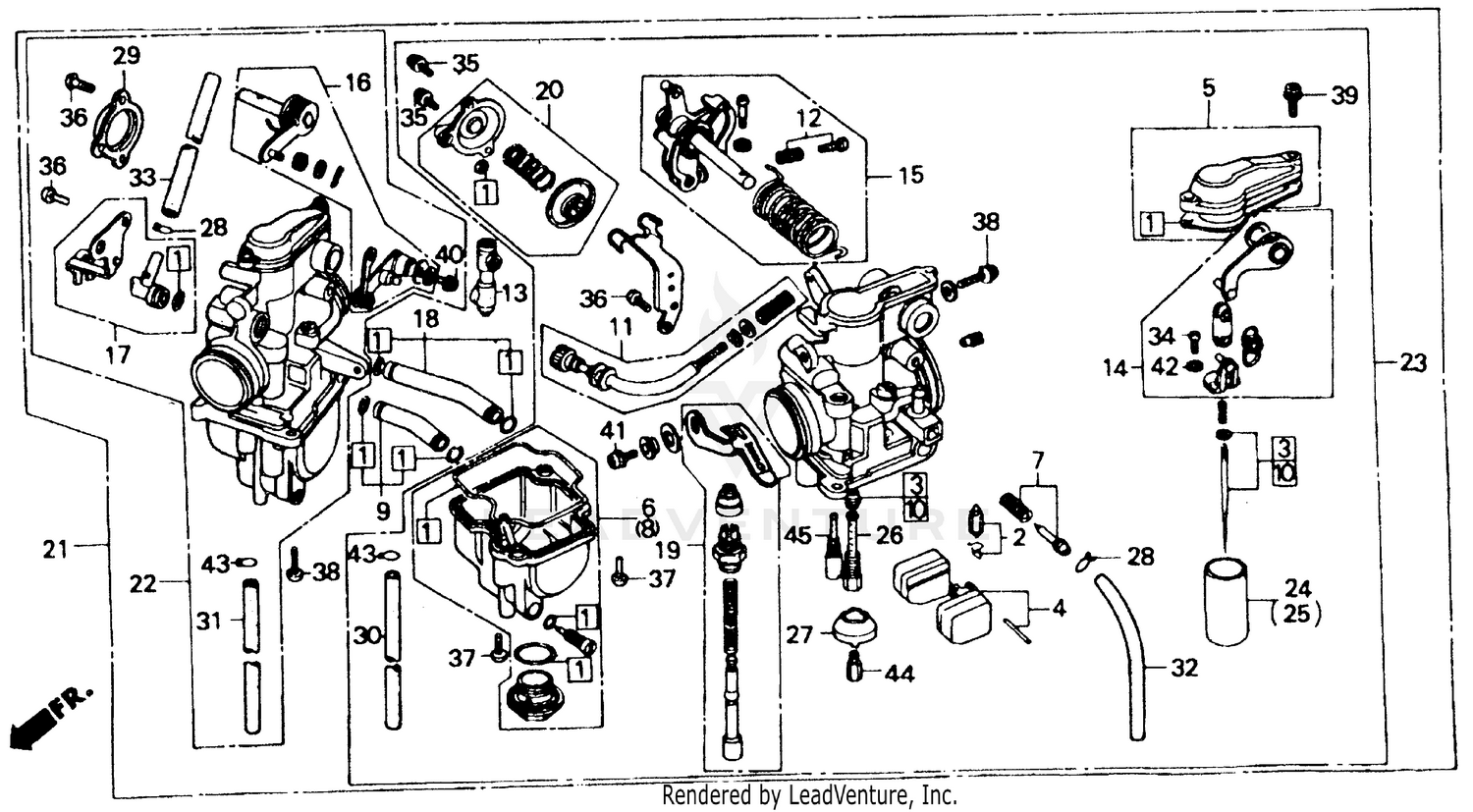

Carburetor 85-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MG3-771
|
$55.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KG0-891
Superseded by 16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16012-MK2-004
|
$45.53 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KG0-891
|
$38.46 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-MG2-601
|
$28.88 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-MK2-014
|
$118.32 | ||
|
Unavailable |
|||
|
#7
SCREW SET
16016-MG3-004
|
$15.86 | ||
|
Unavailable |
|||
|
#8
CHAMBER SET, FLOAT
16023-MK2-004
|
$118.32 | ||
|
Unavailable |
|||
|
#9
JOINT SET, FUEL
16026-KF0-004
|
$39.31 | ||
|
Unavailable |
|||
|
#10
NEEDLE SET, SECONDARY JET
16027-MK2-004
|
$45.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW SET
16028-KF0-004
|
$32.34 | ||
|
Unavailable |
|||
|
#12
SCREW SET
16029-KG0-004
|
$16.40 | ||
|
Unavailable |
|||
|
#13
HOLDER SET, ADJ.
16030-MK5-004
|
$42.85 | ||
|
Unavailable |
|||
|
#14
ARM SET, PRIMARY LINK (NOT AVAILABLE)
16031-MG3-004
|
$83.83 | ||
|
Unavailable |
|||
|
#15
LINK SET, PRIMARY THROTTLE
16032-MK2-014
|
$101.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
LINK SET, LEVER
16035-MK2-014
|
$27.07 | ||
|
Unavailable |
|||
|
#17
JOINT SET, FUEL
16037-MG3-004
|
$27.58 | ||
|
Unavailable |
|||
|
#18
JOINT SET, FUEL
16042-KK0-771
|
$17.08 | ||
|
Unavailable |
|||
|
#19
VALVE SET, STARTER
16046-MK2-004
Superseded by 16046-MK2-014
|
$48.62 | ||
|
Unavailable |
|||
|
#19
VALVE SET, STARTER
16046-MK2-014
|
$48.62 | ||
|
Unavailable |
|||
|
#19
VALVE SET, STARTER
16046-MK2-014
|
$48.62 | ||
|
Unavailable |
|||
|
#20
VALVE SET, AIR CUT
16048-KG0-891
|
$61.16 | ||
|
Unavailable |
|||
|
#21
CARBURETOR ASSY. (PH52A D) (NOT AVAILABLE)
16100-MK2-064
Superseded by 16100-MK2-074
|
$563.75 | ||
|
Unavailable |
|||
|
#21
CARBURETOR ASSY. (PH52A D) (NOT AVAILABLE)
16100-MK2-074
|
$563.75 | ||
|
Unavailable |
|||
|
#22
CARBURETOR ASSY., R.
16101-MK2-014
|
$409.58 | ||
|
Unavailable |
|||
|
#23
CARBURETOR ASSY., L. (NOT AVAILABLE)
16102-MK2-024
Superseded by 16102-MK2-034
|
$381.26 | ||
|
Unavailable |
|||
|
#23
CARBURETOR ASSY., L. (NOT AVAILABLE)
16102-MK2-034
|
$381.26 | ||
|
Unavailable |
|||
|
#24
VALVE, PRIMARY THROTTLE
16111-MK2-004
|
$77.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE, THROTTLE (A)
16112-MG3-004
|
$93.71 | ||
|
Unavailable |
|||
|
#26
HOLDER, NEEDLE JET
16165-MG2-761
|
$25.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, JET
16168-KF0-004
|
$10.62 | ||
|
Unavailable |
|||
|
#28
CLIP, TUBE
16179-KE5-004
|
$2.59 | ||
|
Unavailable |
|||
|
#29
COVER, AIR CUT VALVE (NOT AVAILABLE)
16193-KB4-671
|
$5.35 | ||
|
Unavailable |
|||
|
#30
PIPE, OVERFLOW
16198-MG3-004
Superseded by 16198-ML4-405
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, OVERFLOW
16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#31
TUBE, OVERFLOW (440MM)
16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#31
PIPE, OVERFLOW
16199-KF0-004
Superseded by 16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#32
PIPE, AIR VENT
16198-MK2-004
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, AIR VENT
16199-MK2-004
|
$6.29 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN (3X8)
93500-03008-0H
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (4X8)
93500-04008-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (4X10)
93500-04010-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (4X14)
93500-04014-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN (5X12)
93500-05012-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#39
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#40
SCREW-WASHER (4X20)
93892-04020-08
|
$0.68 | ||
|
Unavailable |
|||
|
#40
SCREW-WASHER (4X20)
93892-04020-18
Superseded by 93892-04020-08
|
$0.68 | ||
|
Unavailable |
|||
|
#41
SCREW-WASHER (5X14)
93892-05014-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW-WASHER (5X14)
93892-05014-18
Superseded by 93892-05014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#42
WASHER, SPRING (3MM)
94111-03800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
JET, MAIN (#122)
99101-357-1220
|
$21.80 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#108)
99101-357-1080
Superseded by 99113-GHB-1080
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#110)
99101-357-1100
Superseded by 99113-GHB-1100
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#112)
99101-357-1120
Superseded by 99113-GHB-1120
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#115)
99101-357-1150
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#118)
99101-357-1180
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#120)
99101-357-1200
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#125)
99101-357-1250
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#128)
99101-357-1280
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#130)
99101-357-1300
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#132)
99101-357-1320
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#108)
99113-GHB-1080
|
$11.29 | ||
|
Unavailable |
|||
|
#44
JET, MAIN (#110)
99113-GHB-1100
|
$11.29 | ||
|
Unavailable |
|||
|
#44
JET, MAIN (#112)
99113-GHB-1120
|
$11.29 | ||
|
Unavailable |
|||
|
#45
JET, SLOW (#45)
99103-GC8-0450
|
$13.62 | ||
|
Unavailable |
|||
|
#45
JET, SLOW (#42)
99103-GC8-0420
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET, SLOW (#48)
99103-GC8-0480
|
$13.62 | ||
|
Unavailable |
|||
