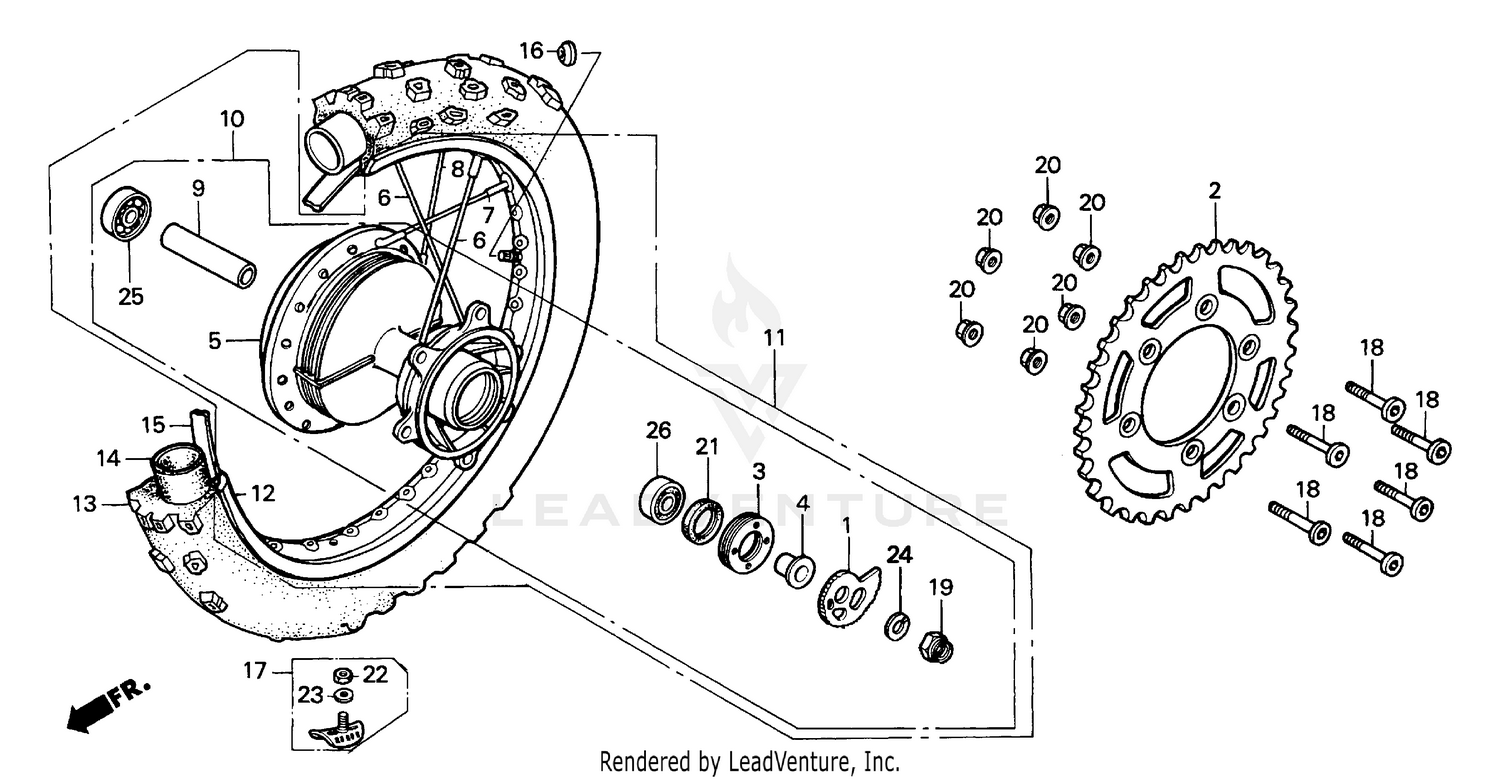

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER, L. CHAIN
40545-MN1-670
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (47T)
41201-KT0-910
|
$63.24 | ||
|
Unavailable |
|||
|
#3
RETAINER, BEARING
41231-429-000
|
$37.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL
42312-KF0-000
|
$29.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET A (9X182)
42610-KT0-405
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPOKE SET B (9X164)
42611-KT0-405
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET C (9X162)
42612-KT0-405
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42620-KT0-830
|
$21.05 | ||
|
Unavailable |
|||
|
#10
HUB SUB-ASSY., RR.
42635-KT0-A00
|
$404.16 | ||
|
Unavailable |
|||
|
#11
WHEEL SET, RR.
42650-KT0-305
|
$962.38 | ||
|
Unavailable |
|||
|
#12
RIM, RR. WHEEL
42701-KK0-003
|
$445.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE, RR. (100/100-17) (58M ED8) (BS) (NA USE ALT:42711-KT0-672)
42711-KT0-671
|
$80.06 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (100/100-17) (58M VE33) (INOUE)
42711-KT0-672
|
$187.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
08400-37100
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-KB7-902
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-KK0-003
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-MA0-003
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-MC4-005
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-MC4-009
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (120/90-17) (BS)
42712-MN9-003
|
|||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-371-003
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (5.10-17) (INOUE)
42712-371-004
Superseded by 42712-MA0-005
|
$14.56 | ||
|
Unavailable |
|||
|
#15
FLAP, TIRE (IRC)
42713-MA0-005
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLAP, TIRE (1.60-17) (BS)
44713-200-003
|
$5.71 | ||
|
Unavailable |
|||
|
#16
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD (1.85)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (8X29)
90125-KT1-670
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, AXLE (16MM)
90305-MA0-003
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-GE2-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-KT1-771
Superseded by 90309-GE2-000
|
$4.71 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (8MM)
90309-KZ9-003
Superseded by 90309-GE2-000
|
$4.71 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (25X40X7)
91216-729-921
|
$9.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
OIL SEAL (25X40X7)
91252-428-000
Superseded by 91216-729-921
|
$9.36 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, SPRING (16MM)
94111-16000
|
$1.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6203U)
96140-62030-10
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6303U)
96140-63030-10
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
