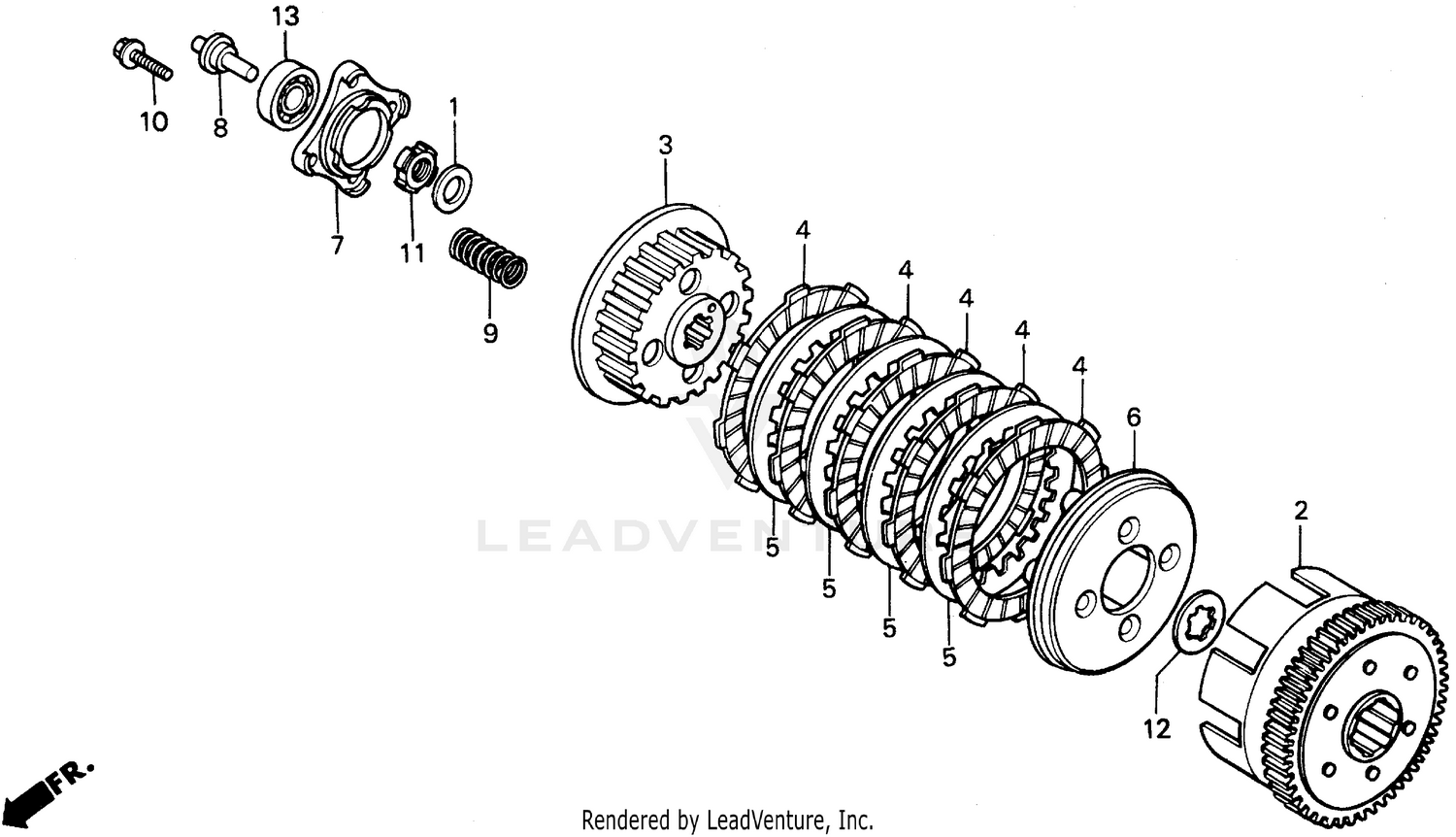

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, OIL FILTER ROTOR LOCKING
15451-107-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER)
22100-437-020
|
$371.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH
22121-KCS-650
|
$43.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISK, CLUTCH FRICTION
22201-166-000
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH
22311-KN4-680
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH
22311-107-000
Superseded by 22311-KN4-680
|
$7.93 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH PRESSURE
22350-107-010
|
$37.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LIFTER
22361-437-000
|
$17.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, CLUTCH LIFTER
22366-KCN-000
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-KT0-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL FLANGE (6X22)
90050-357-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, LOCK (16MM)
90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER B, SPLINE (20MM)
90461-107-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (16003)
91008-KK6-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (16003)
91010-HC0-003
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#13
BEARING, RADIAL BALL (16003)
91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
