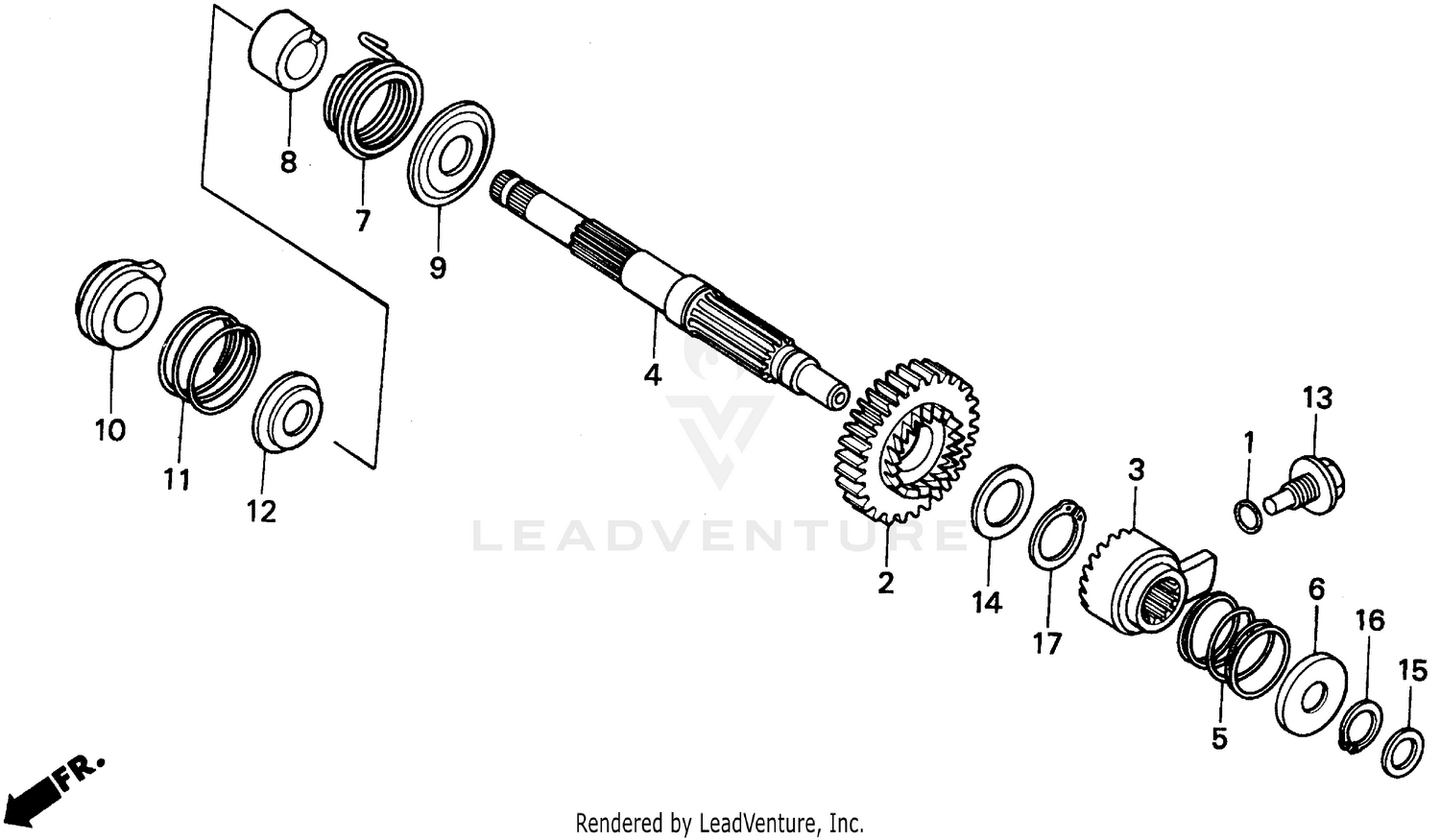

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
O-RING (11.8X2.4)
16997-357-003
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (11.8X2.4)
91302-ZE9-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91320-HA5-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91320-HA5-003
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#2
PINION, KICK STARTER (21T)
28211-KT0-770
|
$62.87 | ||
|
Unavailable |
|||
|
#3
RATCHET, KICK STARTER
28221-437-000
|
$73.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPINDLE, KICK STARTER
28251-KT0-000
|
$58.00 | ||
|
Unavailable |
|||
|
#5
SPRING, KICK STARTER RATCHET
28253-KA2-000
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, RATCHET SPRING
28254-437-000
|
$2.24 | ||
|
Unavailable |
|||
|
#7
SPRING, KICK STARTER
28261-437-000
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, KICK SPINDLE
28262-437-000
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, STARTER SPRING
28263-437-000
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, KICK SHAFT
28272-427-000
|
$49.10 | ||
|
Unavailable |
|||
|
#11
SPRING, CAM RESET
28283-428-000
|
$3.05 | ||
|
Unavailable |
|||
|
#12
SEAT, CAM RESET SPRING
28284-KG1-000
|
$4.65 | ||
|
Unavailable |
|||
|
#13
BOLT, KICK RATCHET
90004-437-000
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER A, THRUST (20MM)
90453-107-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (12MM)
90459-107-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP, OUTER (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP, OUTER (20MM)
94510-20000
|
$1.38 | ||
|
Unavailable |
|||
