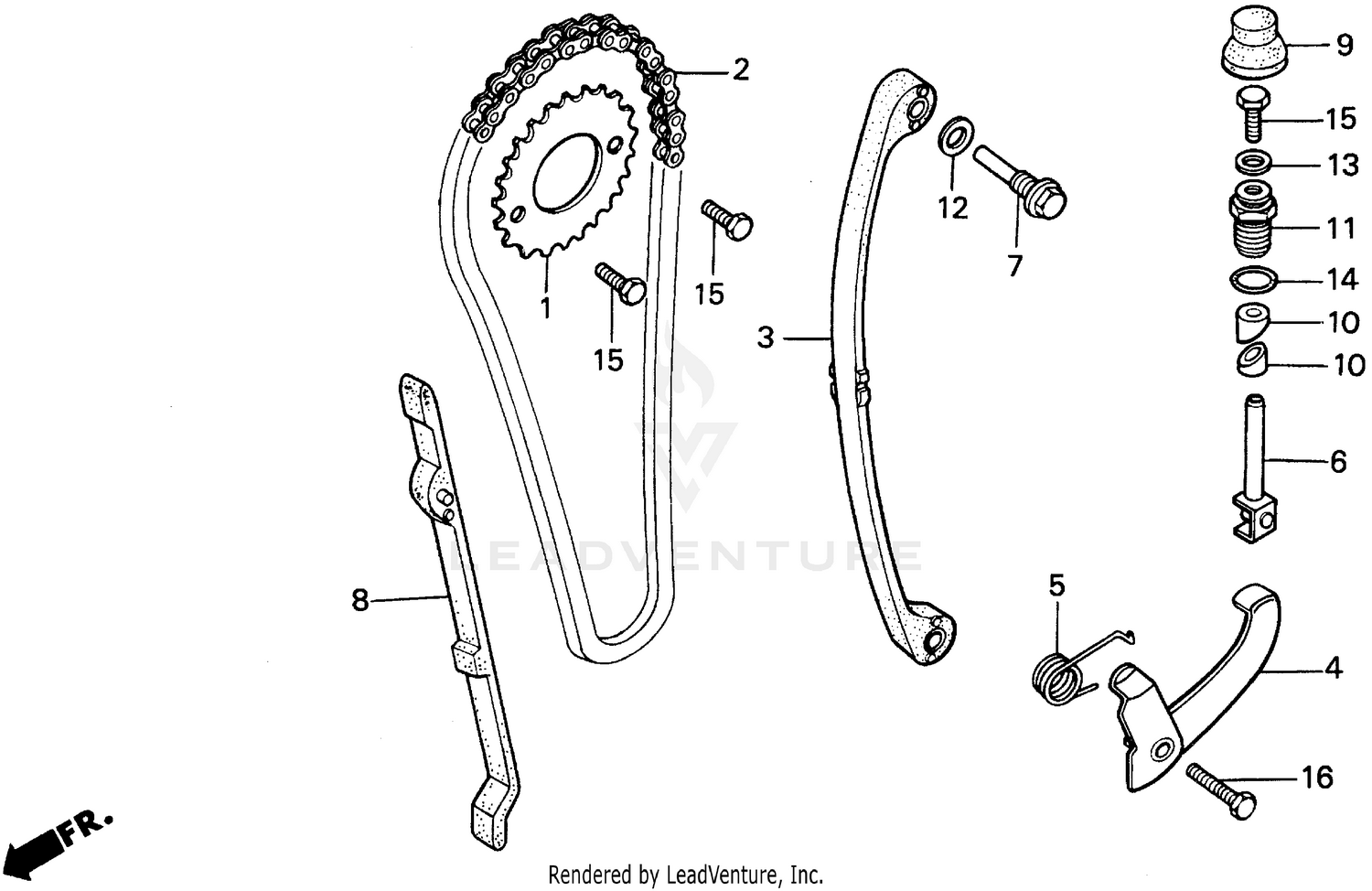

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (32T)
14321-440-000
|
$54.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (100L) (DAIDO)
14401-427-003
Superseded by 14401-958-003
|
$102.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (100L) (DAIDO)
14401-958-003
|
$102.09 | ||
|
Unavailable |
|||
|
#3
TENSIONER, CAM CHAIN
14500-427-000
|
$93.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, CAM CHAIN TENSIONER
14510-383-000
|
$37.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CAM CHAIN TENSIONER
14515-383-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, TENSIONER SETTING
14520-969-010
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CAM CHAIN TENSIONER PIVOT
14535-437-000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CAM CHAIN
14550-427-000
|
$64.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, TENSIONER ADJ.
14564-383-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SET BAR LOCKING
14626-383-000
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPECIAL (16MM)
90082-383-000
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER C (8MM)
90475-703-000
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER A (6MM)
90478-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (13X2.5)
91335-567-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X18)
92101-06018-0A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
