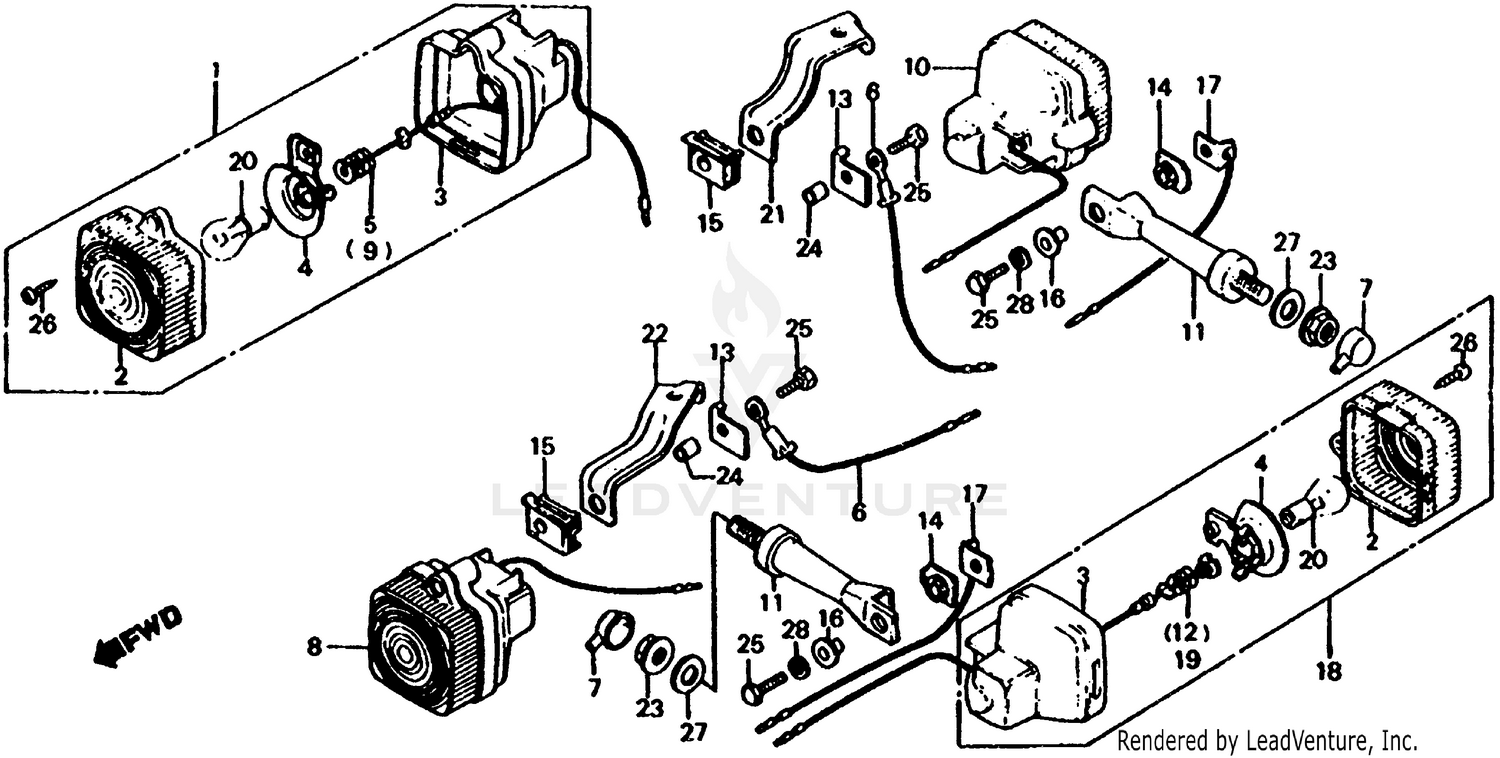

Turn Signal 83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TURN SIGNAL ASSY., R. FR. (STANLEY)
33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#1
TURN SIGNAL ASSY., R. FR.
33400-459-771
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#1
TURN SIGNAL ASSY., R. FR.
33400-459-772
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#2
LENS, TURN SIGNAL
33402-195-013
Superseded by 33402-195-023
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TURN SIGNAL
33402-195-023
|
$10.58 | ||
|
Unavailable |
|||
|
#3
BASE, TURN SIGNAL
33403-195-003
Superseded by 33403-195-013
|
$26.43 | ||
|
Unavailable |
|||
|
#3
BASE, TURN SIGNAL
33403-195-013
|
$26.43 | ||
|
Unavailable |
|||
|
#4
REFLECTOR, TURN SIGNAL (NOT AVAILABLE)
33404-174-771
|
$12.26 | ||
|
Unavailable |
|||
|
#5
WIRE, R. TURN SIGNAL
33410-KB9-000
|
$10.25 | ||
|
Unavailable |
|||
|
#5
WIRE, R. TURN SIGNAL
33410-167-013
Superseded by 33410-KB9-000
|
$10.25 | ||
|
Unavailable |
|||
|
#6
WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)
33415-437-840
|
$5.02 | ||
|
Unavailable |
|||
|
#7
COVER, TURN SIGNAL STAY (NOT AVAILABLE)
33425-428-003
|
$2.41 | ||
|
Unavailable |
|||
|
#8
TURN SIGNAL ASSY., L. FR. (STANLEY)
33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#8
TURN SIGNAL ASSY., R. FR.
33450-459-771
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#8
TURN SIGNAL ASSY., R. FR.
33450-459-772
Superseded by 33400-174-406
|
$33.76 | ||
|
Unavailable |
|||
|
#9
CORD,L.WINKER
33460-167-013
Superseded by 33460-KB9-000
|
$10.25 | ||
|
Unavailable |
|||
|
#10
TURN SIGNAL, R. RR.
33600-KA8-719
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#10
TURN SIGNAL, R. RR.
33600-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#10
TURN SIGNAL, R. RR.
33650-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#11
BOLT, TURN SIGNAL
33605-KF9-671
|
$34.20 | ||
|
Unavailable |
|||
|
#12
WIRE, R. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33610-437-710
|
$9.25 | ||
|
Unavailable |
|||
|
#13
WASHER, TURN SIGNAL MOUNT
33611-437-710
|
$1.82 | ||
|
Unavailable |
|||
|
#14
RUBBER, TURN SIGNAL MOUNTING
33612-KF9-670
|
$5.80 | ||
|
Unavailable |
|||
|
#15
RUBBER, TURN SIGNAL MOUNT (NOT AVAILABLE)
33612-437-710
|
$4.96 | ||
|
Unavailable |
|||
|
#16
COLLAR, TURN SIGNAL SETTING
33613-KF9-670
|
$3.14 | ||
|
Unavailable |
|||
|
#17
WIRE, RR. TURN SIGNAL GROUND
33615-KF9-671
|
$8.93 | ||
|
Unavailable |
|||
|
#18
TURN SIGNAL, R. RR.
33600-KA8-719
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#18
TURN SIGNAL, R. RR.
33650-437-711
Superseded by 33600-KA8-406
|
$23.05 | ||
|
Unavailable |
|||
|
#19
WIRE, L. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)
33660-437-710
|
$9.25 | ||
|
Unavailable |
|||
|
#20
BULB, TURN SIGNAL (6V17W) (STANLEY)
34905-358-003
|
$6.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BRACKET, R. FR. TURN SIGNAL
53101-KB1-600
|
$13.68 | ||
|
Unavailable |
|||
|
#22
BRACKET, L. FR. TURN SIGNAL
53102-KB1-600
|
$13.68 | ||
|
Unavailable |
|||
|
#23
NUT, FLANGE (10MM)
90201-428-003
Superseded by 94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#24
COLLAR (7.5X6.8)
90501-437-710
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (5X16)
92000-05016-0A
Superseded by 92101-05016-0A
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (5X16)
92101-05016-0A
|
$0.85 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING (4X16)
93901-14480
|
$0.61 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (10MM)
94101-10800
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING (5MM)
94111-05800
|
$1.18 | ||
|
Unavailable |
|||
