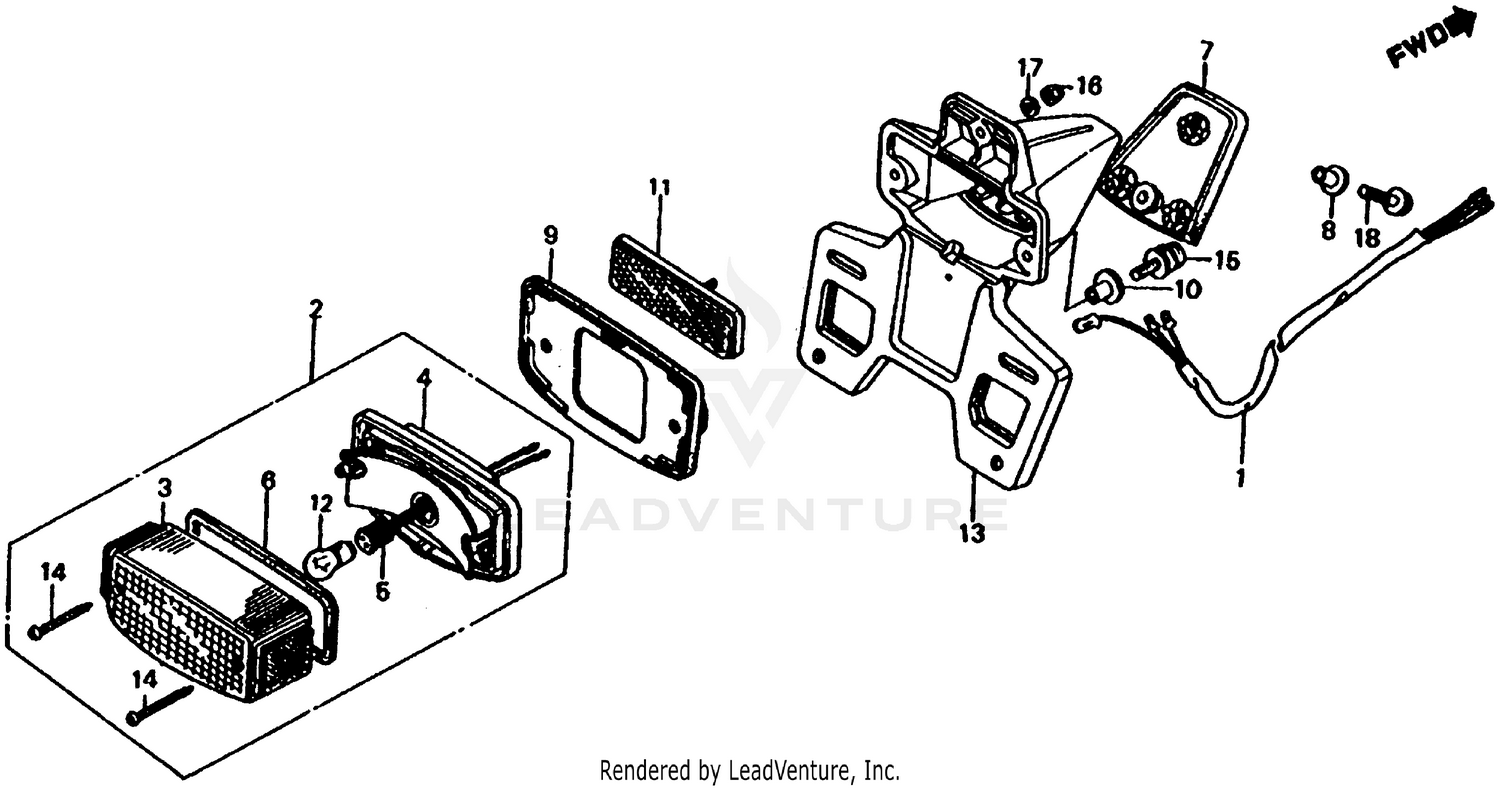

Taillight 83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-WIRE HARNESS A
32101-GC5-000
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAILLIGHT UNIT (NOT AVAILABLE)
33701-KA8-711
|
$77.56 | ||
|
Unavailable |
|||
|
#3
LENS, TAILLIGHT (COO) (STANLEY)
33702-MC4-671
Superseded by 33702-MGR-305
|
$37.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, TAILLIGHT
33703-MC4-671
|
$73.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, TAILLIGHT
33708-147-003
|
$10.91 | ||
|
Unavailable |
|||
|
#6
GASKET, TAILLIGHT LENS
33709-KB7-003
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, BASE SEAT
33712-KA8-711
|
$12.62 | ||
|
Unavailable |
|||
|
#8
COLLAR, TAILLIGHT SETTING
33715-KA8-710
|
$5.37 | ||
|
Unavailable |
|||
|
#9
GASKET, TAILLIGHT
33718-KF9-670
|
$12.41 | ||
|
Unavailable |
|||
|
#10
COLLAR, TAILLIGHT GASKET
33719-KB7-000
|
$5.00 | ||
|
Unavailable |
|||
|
#11
REFLECTOR, REFLEX
33741-MC7-611
Superseded by 33741-MC7-612
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
REFLECTOR, REFLEX
33741-MC7-612
|
$17.49 | ||
|
Unavailable |
|||
|
#12
BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)
34906-329-671
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, LICENSE PLATE
84701-MC4-671
|
$75.35 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING (4X40)
90105-GA7-003
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (5X18)
93893-05018-00
|
$0.88 | ||
|
Unavailable |
|||
|
#16
NUT, CAP (5MM)
94021-05020-0S
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
