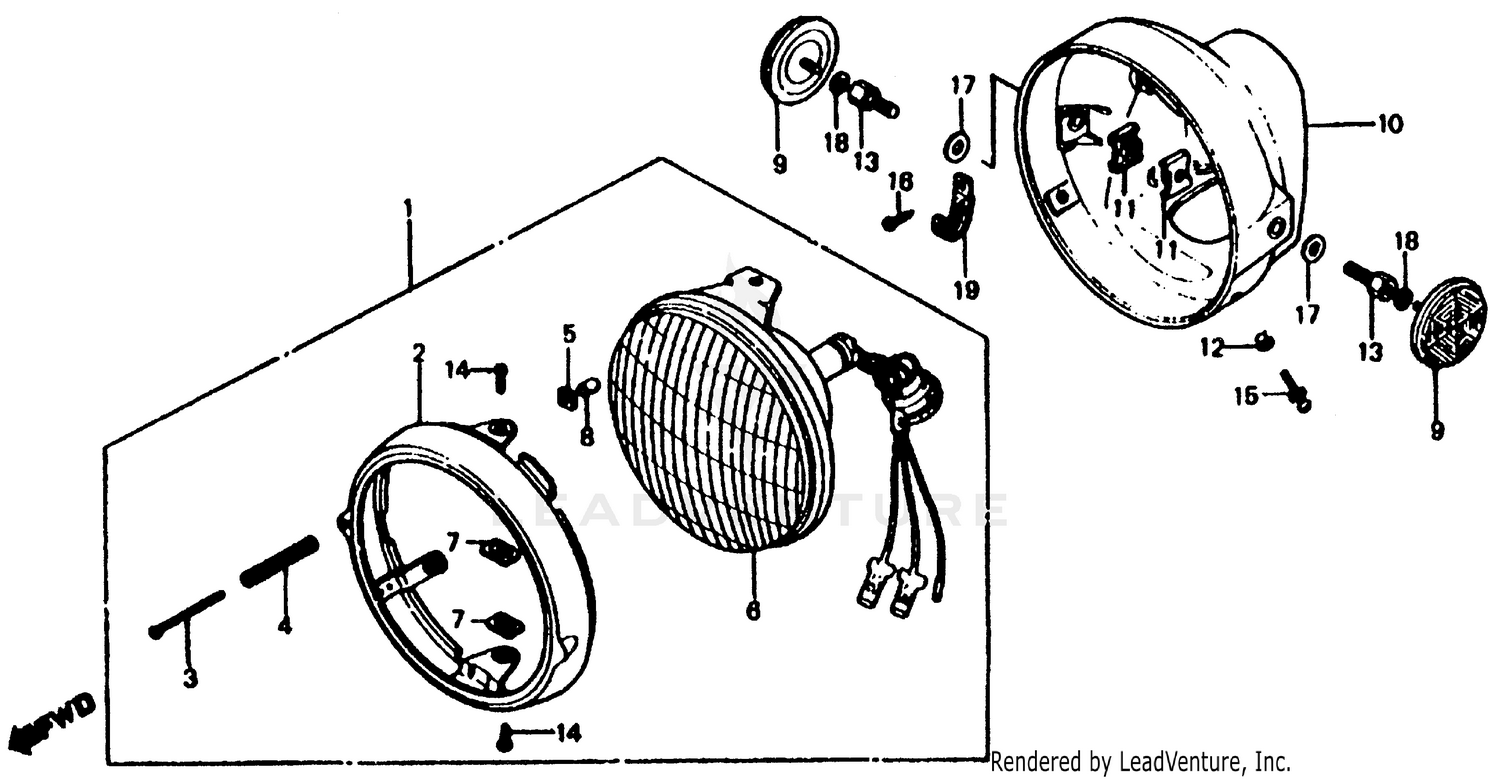

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (6V 35/36.5W) (NOT AVAILABLE)
33100-428-671
|
$101.32 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT (NOT AVAILABLE)
33101-329-671
|
$29.28 | ||
|
Unavailable |
|||
|
#3
SCREW, HEADLIGHT BEAM ADJUSTING
33103-329-003
|
$3.96 | ||
|
Unavailable |
|||
|
#3
SCREW, HEADLIGHT BEAM ADJUSTING
33103-329-671
Superseded by 33103-329-003
|
$3.96 | ||
|
Unavailable |
|||
|
#4
SPRING, HEADLIGHT BEAM ADJUSTING
33107-200-023
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, HEADLIGHT BEAM ADJUSTING
33107-283-023
Superseded by 33107-200-023
|
$3.78 | ||
|
Unavailable |
|||
|
#5
NUT, HEADLIGHT BEAM ADJ.
33117-001-023
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEADLIGHT UNIT
33120-428-671
|
$98.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, UNIT HOLDER
33128-200-033
|
$1.93 | ||
|
Unavailable |
|||
|
#8
COVER, SCREW
33136-426-830
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLECTOR, FR. REFLEX
33741-102-870
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLECTOR, FR. REFLEX
33741-428-671
Superseded by 33741-102-870
|
$43.44 | ||
|
Unavailable |
|||
|
#10
CASE, HEADLIGHT *NH1* (BLACK)
61301-399-000ZA
|
$63.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEADLIGHT CASE
61303-105-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, HEADLIGHT SETTING
61304-292-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEADLIGHT STAY
90123-428-000
|
$6.22 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (5X8)
93500-05008-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (5X16)
93892-05016-00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (4X8) (NOT AVAILABLE)
93901-14110
|
$0.47 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (8MM)
94102-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLIP, WIRE (4X50)
94591-45000
|
$3.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
