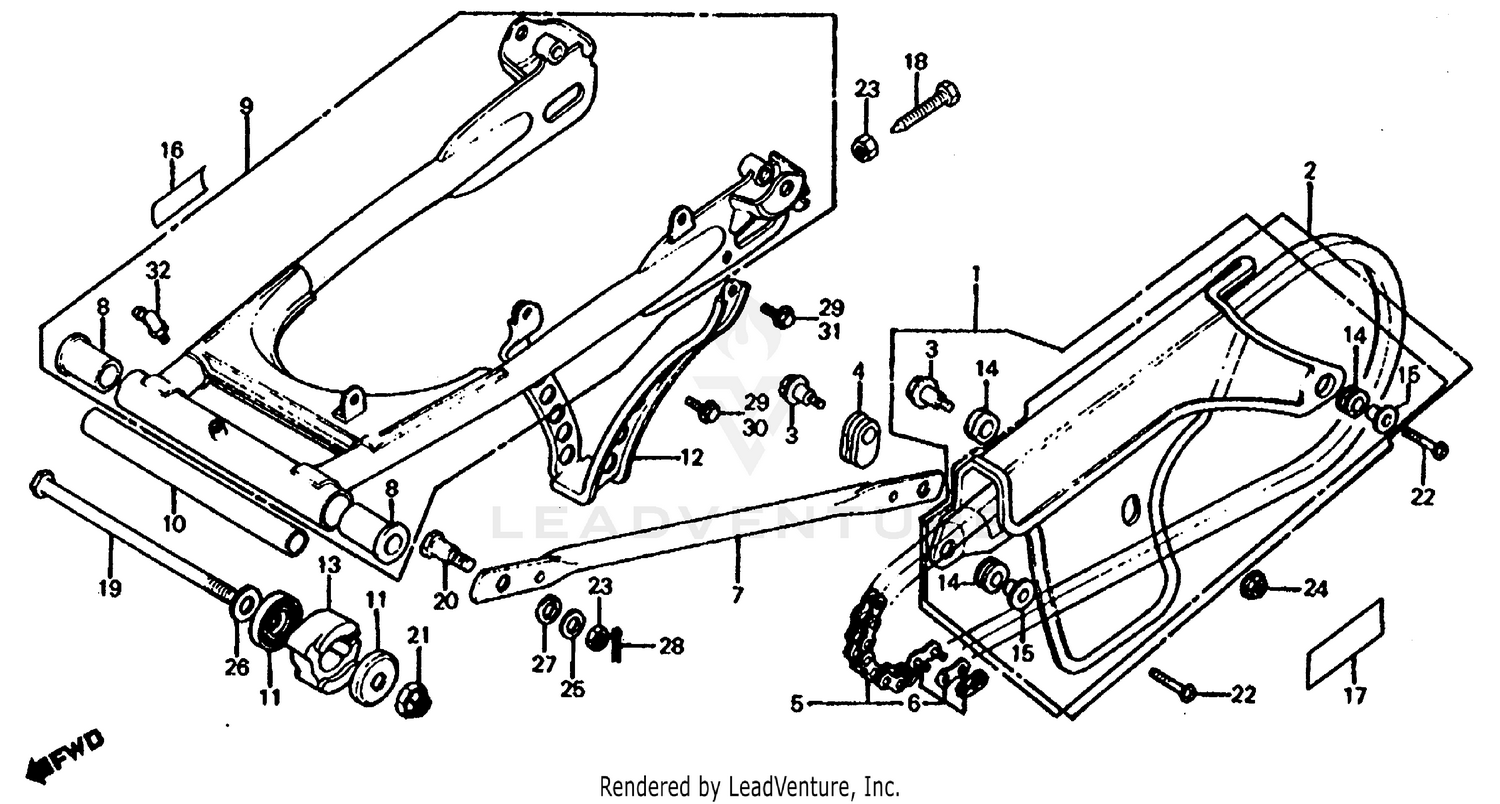

Swingarm + Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
GUARD, DRIVE CHAIN
40510-446-010
|
$68.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, CHAIN GUARD
40512-437-000
|
$6.75 | ||
|
Unavailable |
|||
|
#4
RUBBER, CHAIN GUARD SETTING (NOT AVAILABLE)
40513-446-770
|
$2.26 | ||
|
Unavailable |
|||
|
#5
CHAIN, DRIVE
405W3-KE1-505
|
$96.14 | ||
|
Unavailable |
|||
|
#5
CHAIN, DRIVE
40530-437-671
Superseded by 405W3-KE1-505
|
$96.14 | ||
|
Unavailable |
|||
|
#5
CHAIN, DRIVE
40530-437-672
Superseded by 405W3-KE1-505
|
$96.14 | ||
|
Unavailable |
|||
|
#5
CHAIN, DRIVE
40530-437-673
Superseded by 405W3-KE1-505
|
$96.14 | ||
|
Unavailable |
|||
|
#6
MASTER LINK (DAIDO)
40531-355-013
|
$5.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
MASTER LINK (TAKASAGO)
40531-437-602
|
$7.59 | ||
|
Unavailable |
|||
|
#7
ARM, RR. BRAKE STOPPER
43431-437-000
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, PIVOT THRUST
52109-360-310
|
$49.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWINGARM ASSY., RR. *R110* (MONZA RED)
52110-437-710ZB
|
$262.05 | ||
|
Unavailable |
|||
|
#10
COLLAR, SWINGARM
52141-437-010
|
$41.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, SWINGARM DUST SEAL (NOK)
52144-360-000
Superseded by 52144-360-005
|
$14.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP, SWINGARM DUST SEAL (NOK)
52144-360-003
Superseded by 52144-360-005
|
$14.29 | ||
|
Unavailable |
|||
|
#11
CAP, SWINGARM DUST SEAL (NOK)
52144-360-005
|
$14.29 | ||
|
Unavailable |
|||
|
#12
GUARD, CHAIN *R110* (MONZA RED) (NOT AVAILABLE)
52156-437-940ZC
|
$30.84 | ||
|
Unavailable |
|||
|
#13
SLIDER, CHAIN
52170-437-000
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, FR. FENDER SETTING
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, RR. FENDER
61105-428-000
|
$4.03 | ||
|
Unavailable |
|||
|
#15
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#17
LABEL, TIRE CAUTION (NOT AVAILABLE)
87505-437-710
|
$4.56 | ||
|
Unavailable |
|||
|
#18
BOLT, CHAIN ADJUSTING
90119-300-000
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SWINGARM PIVOT
90121-KF9-900
|
$22.73 | ||
|
Unavailable |
|||
|
#19
BOLT, SWINGARM PIVOT
90121-437-000
Superseded by 90121-KF9-900
|
$22.73 | ||
|
Unavailable |
|||
|
#20
BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)
90133-331-770
|
$2.65 | ||
|
Unavailable |
|||
|
#21
NUT, SELF-LOCK (12MM)
90353-045-000
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X22)
93500-06022
Superseded by 93500-06022-0A
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X22)
93500-06022-0A
|
$1.28 | ||
|
Unavailable |
|||
|
#23
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING (8MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X14)
95700-06014-08
Superseded by 95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#32
FITTING, GREASE (C.76)
96201-60000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
