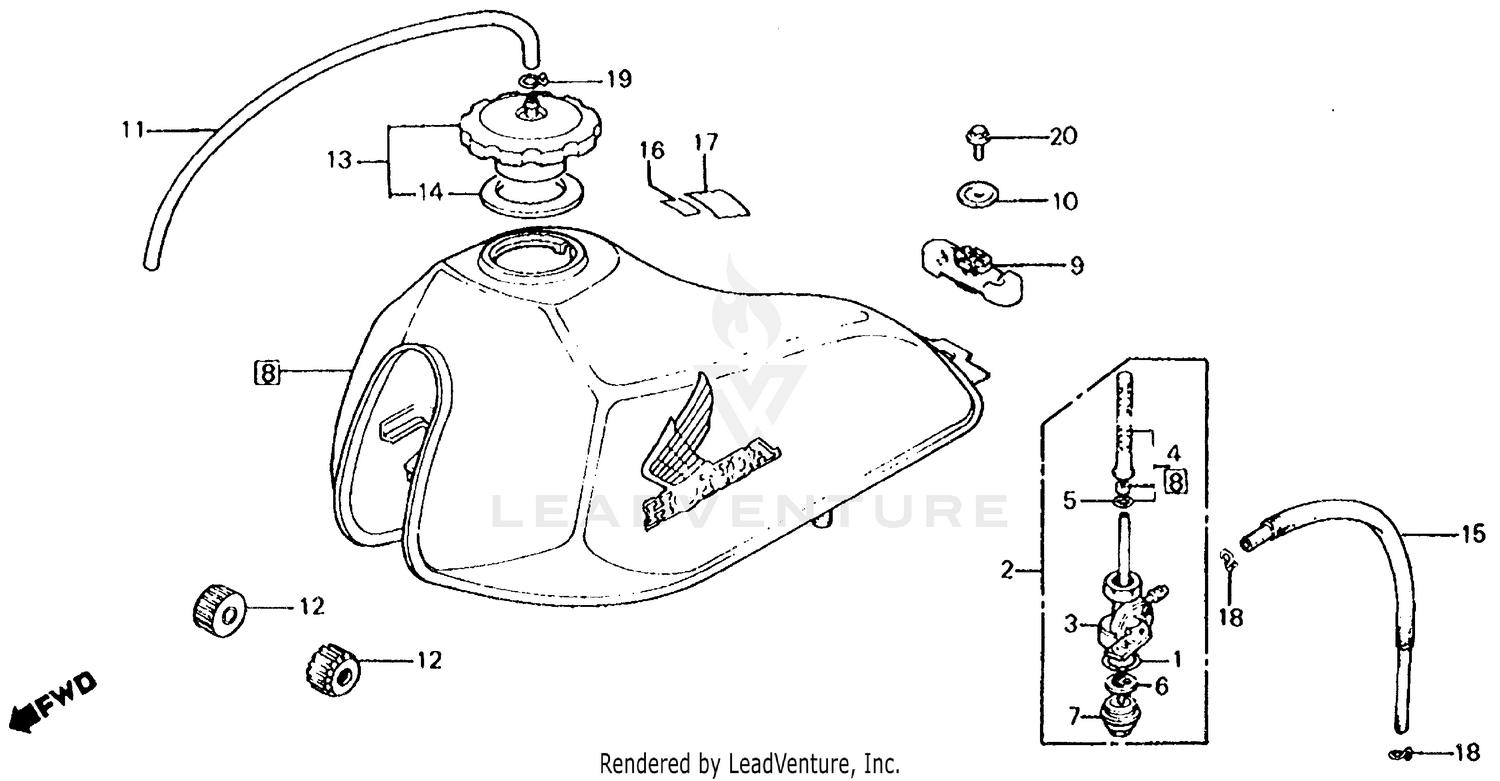

Fuel Tank 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)
16080-898-631
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16955-283-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16958-011-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#1
O-RING (2.4X18.6)
16958-028-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#2
PETCOCK ASSY.
16950-KB1-671
Superseded by 16950-KB1-672
|
$67.45 | ||
|
Unavailable |
|||
|
#2
PETCOCK ASSY.
16950-KB1-672
|
$67.45 | ||
|
Unavailable |
|||
|
#3
BODY, PETCOCK (NOT AVAILABLE)
16951-195-701
|
$44.90 | ||
|
Unavailable |
|||
|
#4
SCREEN SET, FUEL STRAINER
16952-KB1-671
|
$33.52 | ||
|
Unavailable |
|||
|
#5
O-RING (9X1.3)
16958-397-771
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER, CUP
16959-471-831
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TANK, FUEL *R110* (MONZA RED)
175A1-KF9-000ZA
Superseded by 1751P-KF9-010ZA
|
$407.81 | ||
|
Unavailable |
|||
|
#8
TANK, FUEL *R110* (MONZA RED)
175A1-KF9-010ZA
Superseded by 1751P-KF9-010ZA
|
$407.81 | ||
|
Unavailable |
|||
|
#8
TANK, FUEL *R110* (MONZA RED)
1751P-KF9-010ZA
|
$407.81 | ||
|
Unavailable |
|||
|
#9
RUBBER, RR. TANK
17509-437-000
|
$13.75 | ||
|
Unavailable |
|||
|
#10
WASHER, RR. TANK
17515-437-000
|
$6.62 | ||
|
Unavailable |
|||
|
#11
TUBE, FUEL CAP BREATHER
17530-437-000
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, FR. TANK
17611-437-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, FUEL TANK
17620-435-730
|
$51.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL FILLER CAP
17632-435-730
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, FUEL
17681-382-671
|
$5.27 | ||
|
Unavailable |
|||
|
#16
LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)
87510-147-670ZB
|
$2.13 | ||
|
Unavailable |
|||
|
#17
LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
87560-181-760ZB
|
$4.31 | ||
|
Unavailable |
|||
|
#18
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
