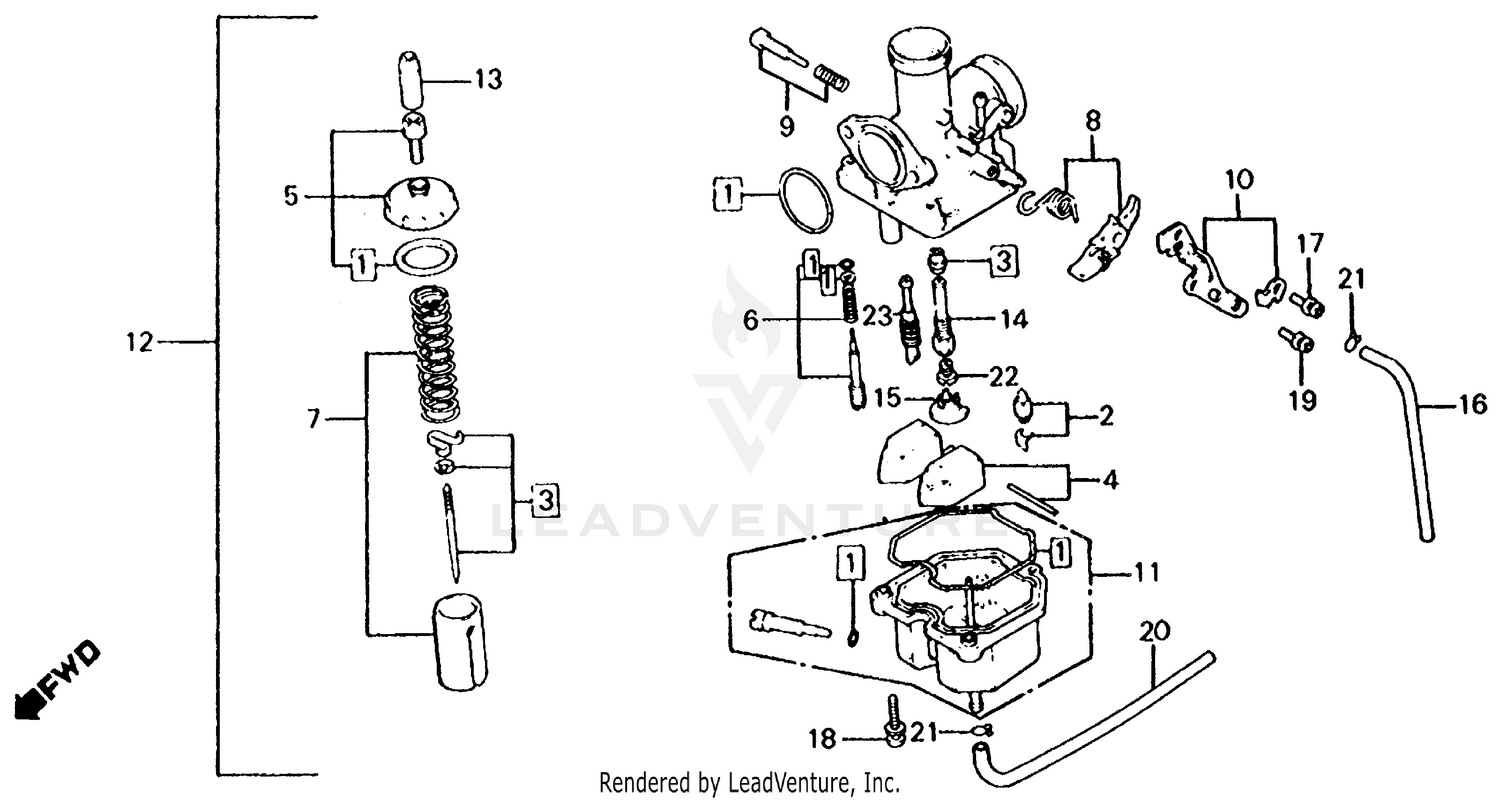

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-HB5-305
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-324-680
Superseded by 16010-HB5-305
|
$33.24 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-437-771
|
$28.11 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-405-004
|
$64.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-324-680
Superseded by 16014-324-681
|
$27.52 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-324-681
|
$27.52 | ||
|
Unavailable |
|||
|
#6
SCREW SET A
16016-KC2-970
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-413-751
Superseded by 16016-KC2-970
|
$30.71 | ||
|
Unavailable |
|||
|
#7
VALVE SET, THROTTLE (NOT AVAILABLE)
16022-440-004
|
$46.98 | ||
|
Unavailable |
|||
|
#8
LEVER SET, CHOKE
16025-427-004
|
$35.24 | ||
|
Unavailable |
|||
|
#9
SCREW SET B
16028-402-004
Superseded by 16028-KB1-D11
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE SET, STAY
16035-427-004
|
$30.79 | ||
|
Unavailable |
|||
|
#11
CHAMBER SET, FLOAT
16045-399-004
Superseded by 16045-399-014
|
$103.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
CHAMBER SET, FLOAT
16045-399-014
|
$103.58 | ||
|
Unavailable |
|||
|
#12
CARBURETOR ASSY. (NOT AVAILABLE)
16100-437-712
Superseded by 16100-437-713
|
$237.49 | ||
|
Unavailable |
|||
|
#12
CARBURETOR ASSY.
16100-437-713
|
$237.49 | ||
|
Unavailable |
|||
|
#13
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, NEEDLE JET
16165-437-771
|
$26.57 | ||
|
Unavailable |
|||
|
#15
HOLDER, JET
16168-382-014
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, AIR VENT
16199-427-004
|
$6.55 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (4X10)
93892-04010-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW-WASHER (5X12)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, FUEL
16199-402-004
Superseded by 16199-KG4-405
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#100)
99101-GHB-1000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#100)
99101-393-1000
Superseded by 99101-GHB-1000
|
$8.49 | ||
|
Unavailable |
|||
|
#22
JET, MAIN (#95)
99101-GHB-0950
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#95)
99101-393-0950
Superseded by 99101-GHB-0950
|
$10.62 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#38)
99103-KA3-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, SLOW (#38)
99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#38)
99103-440-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
