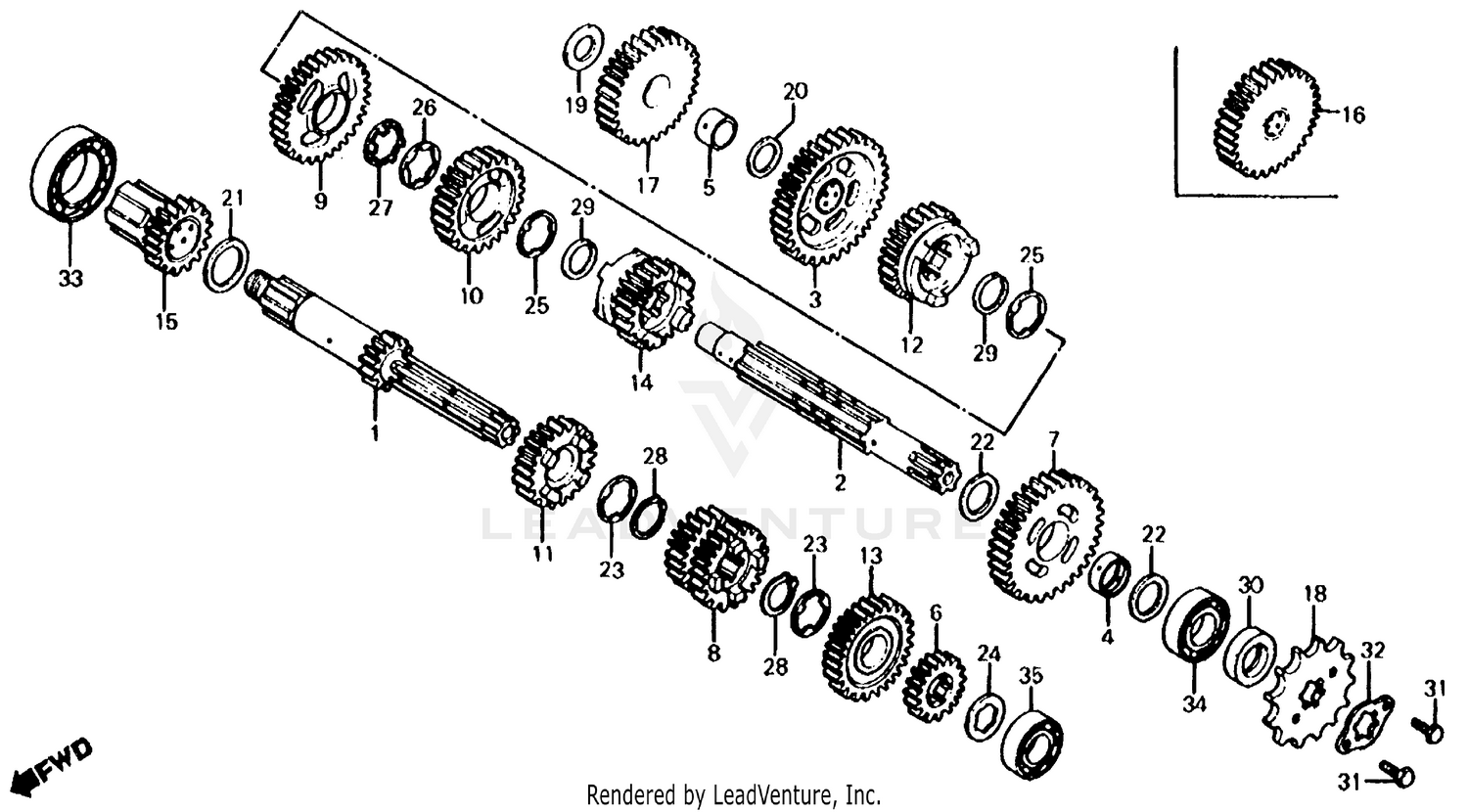

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (12T) (NOT AVAILABLE)
23211-437-000
|
$70.75 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-437-000
|
$110.96 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (37T)
23420-437-000
|
$74.22 | ||
|
Unavailable |
|||
|
#4
BUSH (20MM)
23431-437-000
|
$32.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSHING
23431-439-000
|
$15.22 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)
23441-437-000
|
$33.52 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (33T)
23451-437-000
Superseded by 23451-437-010
|
$74.24 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (33T)
23451-437-010
|
$74.24 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T,20T)
23461-437-000
Superseded by 23461-437-020
|
$155.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T,20T)
23461-437-010
Superseded by 23461-437-020
|
$155.15 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T,20T)
23461-437-020
|
$155.15 | ||
|
Unavailable |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)
23471-437-000
Superseded by 235A1-437-000
|
$63.03 | ||
|
Unavailable |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)
235A1-437-000
|
$63.03 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)
23491-437-000
Superseded by 23491-437-010
|
$45.27 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)
23491-437-010
|
$45.27 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT FIFTH (26T)
23501-437-000
|
$69.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FIFTH (24T) (NOT AVAILABLE)
23511-437-000
Superseded by 23511-437-010
|
$61.93 | ||
|
Unavailable |
|||
|
#12
GEAR, COUNTERSHAFT FIFTH (24T) (NOT AVAILABLE)
23511-437-010
|
$61.93 | ||
|
Unavailable |
|||
|
#13
GEAR, MAINSHAFT TOP (28T)
23512-437-000
|
$53.64 | ||
|
Unavailable |
|||
|
#14
GEAR, COUNTERSHAFT TOP (22T) (NOT AVAILABLE)
235B1-437-000
|
$63.09 | ||
|
Unavailable |
|||
|
#14
GEAR, COUNTERSHAFT TOP (22T) (NOT AVAILABLE)
23513-437-010
Superseded by 235B1-437-000
|
$63.09 | ||
|
Unavailable |
|||
|
#14
GEAR, COUNTERSHAFT TOP (22T)
23513-437-020
|
$122.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, STARTER (19T)
23520-437-000
|
$96.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR ONLY, IDLE STARTER (28T)
23531-437-310
|
$54.78 | ||
|
Unavailable |
|||
|
#18
SPROCKET, DRIVE (14T)
23801-KF9-900
Superseded by 23801-KF9-505
|
$41.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (14T)
23801-437-000
Superseded by 23801-KF9-505
|
$41.08 | ||
|
Unavailable |
|||
|
#19
WASHER, THRUST (15MM)
90451-365-000
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (16.5MM)
90452-437-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER A, THRUST (20MM)
90453-107-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (20MM)
90454-107-000
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (17MM)
90461-115-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPECIAL SPLINE (17MM) (NOT AVAILABLE)
90462-437-000
|
$2.09 | ||
|
Unavailable |
|||
|
#25
WASHER, SPLINE (22MM)
90463-437-000
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, COUNTERSHAFT THIRD SPLINE
90464-360-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90465-360-000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (OUTER) (22MM)
90601-437-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (20X34X7) (ARAI)
91201-030-013
Superseded by 91201-030-033
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (20X34X7)
91201-030-015
|
|||
|
Unavailable |
|||
|
#30
OIL SEAL (20X34X7) (ARAI)
91201-030-023
Superseded by 91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#30
OIL SEAL (20X34X7) (ARAI)
91201-030-025
Superseded by 91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#30
OIL SEAL (20X34X7) (ARAI)
91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#31
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#32
PLATE B, FIXING
95014-92100
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6006)
96100-60060-00
|
$15.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
|
#35
BEARING, RADIAL BALL (6202Z)
96120-62020-00
|
$13.35 | ||
|
Unavailable |
|||
