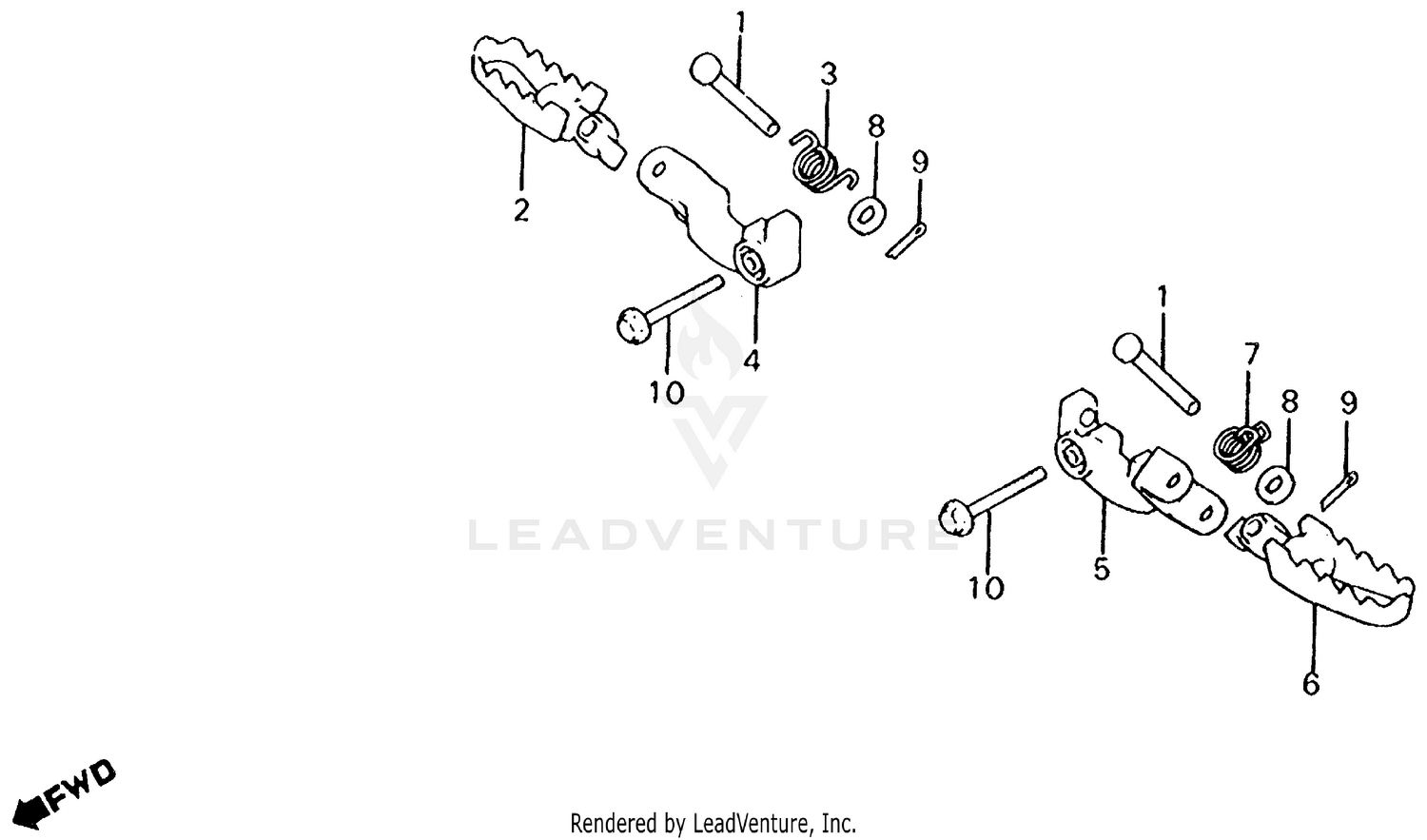

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-000
Superseded by 50603-033-010
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Unavailable |
|||
|
#2
FOOTPEG, R.
50616-428-000
|
$42.30 | ||
|
Unavailable |
|||
|
#3
SPRING, R. STEP RETURN
50617-KF9-900
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, R. STEP RETURN
50617-365-670
Superseded by 50617-KF9-900
|
$3.65 | ||
|
Unavailable |
|||
|
#4
BAR, R. STEP
50618-437-000
|
$55.86 | ||
|
Unavailable |
|||
|
#5
BAR, L. STEP
50624-437-000
|
$72.52 | ||
|
Unavailable |
|||
|
#6
FOOTPEG, L.
50642-428-000
|
$34.59 | ||
|
Unavailable |
|||
|
#7
SPRING, L. STEP RETURN
50644-MM9-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, L. STEP RETURN
50644-329-000
Superseded by 50644-MM9-000
|
$5.67 | ||
|
Unavailable |
|||
|
#8
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (8X35)
95700-08035-07
Superseded by 95701-08035-07
|
$1.60 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (8X35)
95701-08035-07
|
$1.60 | ||
|
Unavailable |
|||
