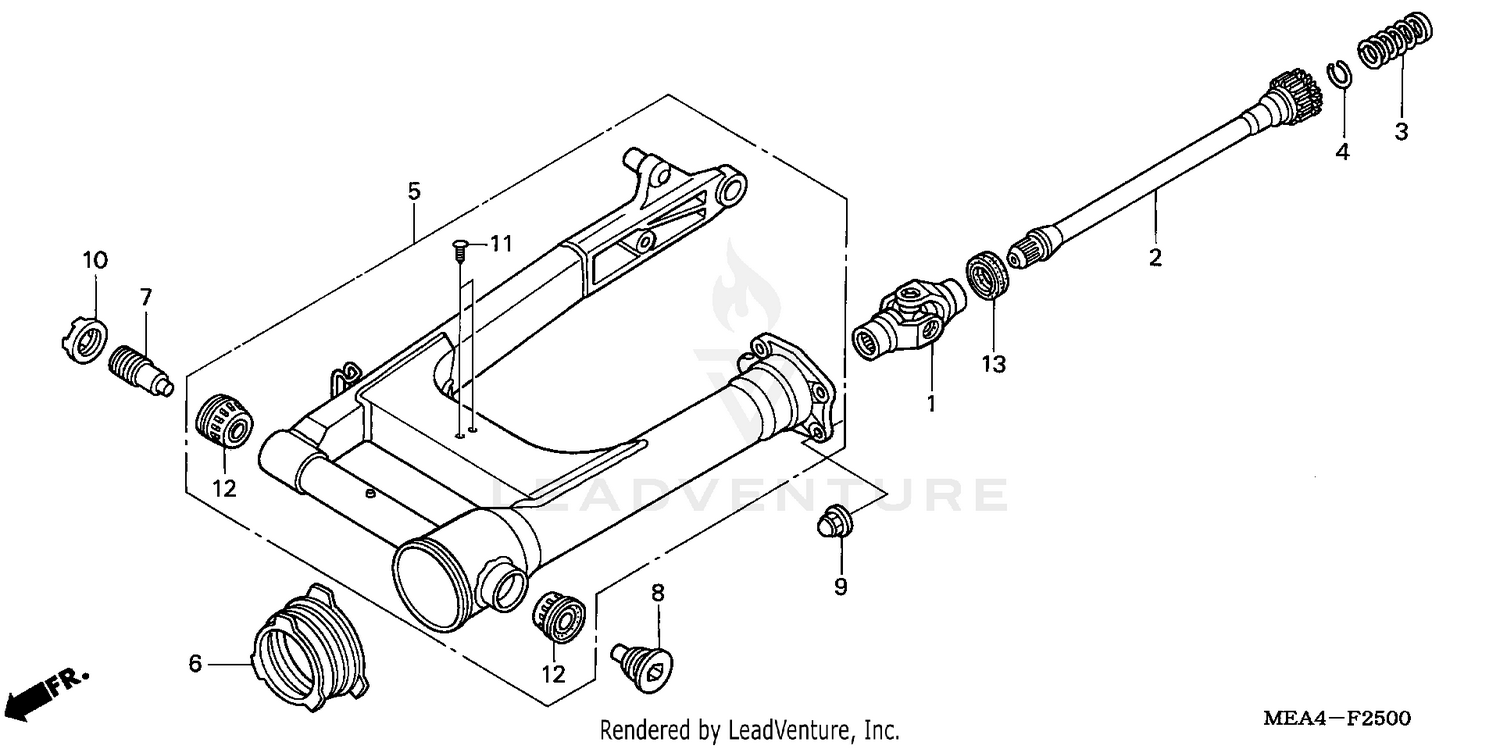

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, YOKE
40200-MCH-000
Superseded by 40200-MFR-670
|
$235.73 | ||
|
Available to order. Add to View Price |
|||
|
#1
JOINT, YOKE
40200-MFR-670
|
$235.73 | ||
|
Unavailable |
|||
|
#2
SHAFT, PROPELLER
40201-MCH-000
|
$98.18 | ||
|
Unavailable |
|||
|
#3
SPRING, PROPELLER SHAFT
40215-ME9-003
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, STOPPER
40221-MB0-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM ASSY., RR.
52100-MEA-670
Superseded by 52100-MEA-A20
|
$296.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM ASSY., RR.
52100-MEA-A20
|
$296.48 | ||
|
Unavailable |
|||
|
#6
BOOT, JOINT
52104-MCH-000
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, R. SWINGARM PIVOT
90121-MAH-A00
|
$13.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, R. SWINGARM PIVOT (L. SIDE)
90121-MAM-A60
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CAP (10MM)
90209-MM8-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CAP (10MM)
90308-MS9-000
Superseded by 90209-MM8-000
|
$6.85 | ||
|
Unavailable |
|||
|
#10
NUT, SWINGARM PIVOT LOCK
90355-469-000
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP (Honda Code 3488079)
90651-MT3-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING, TAPER ROLLER (17X40X13.25) (KOYO)
91066-HA7-672
|
$75.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (27X43X7)
91261-ME9-005
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
