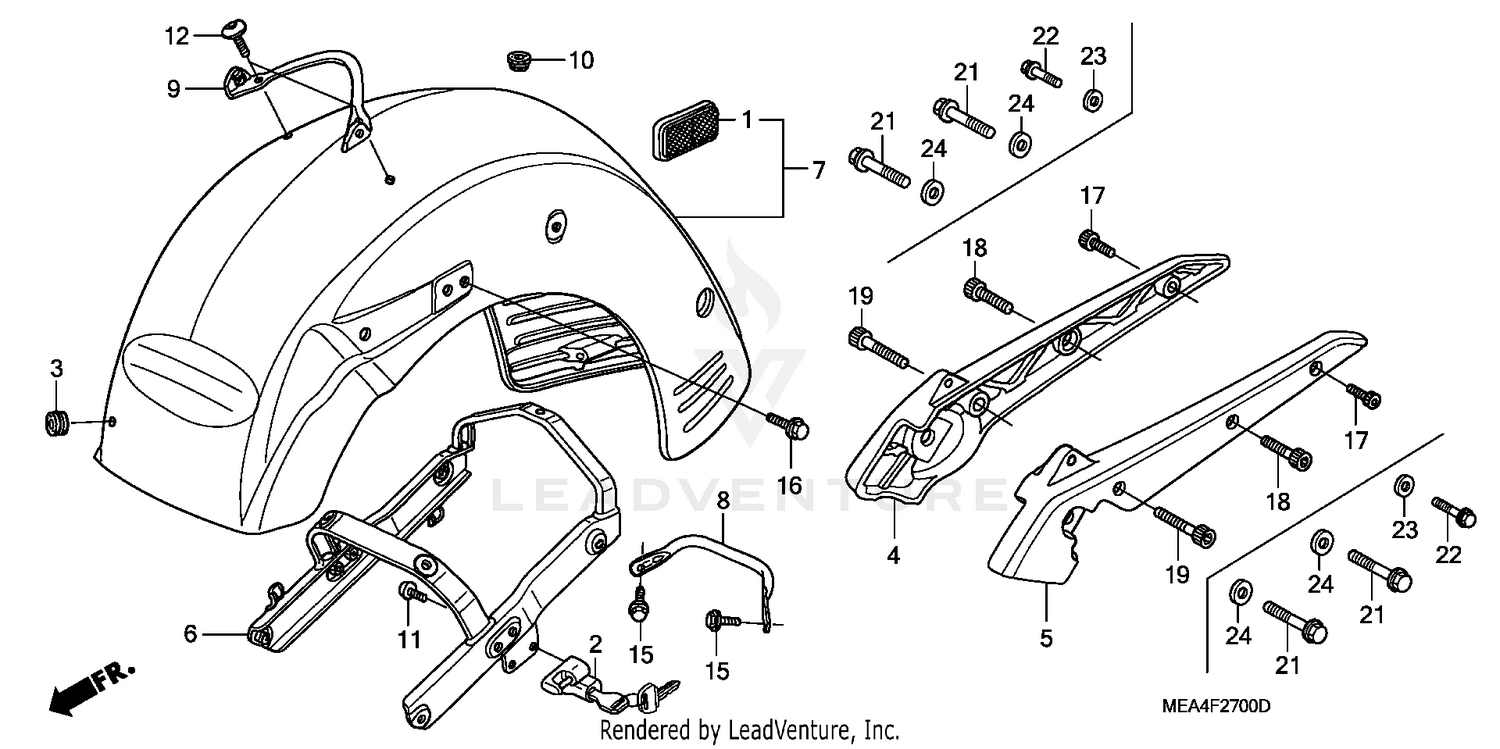

Rear Fender@grab Rail Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, SIDE REFLEX
33742-MR1-671
|
$17.13 | ||
|
Unavailable |
|||
|
#2
HOLDER ASSY., HELMET (COO)
50710-GCN-003
Superseded by 50710-GCN-305
|
$34.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, OIL TUBE
55204-GJ2-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRAB RAIL, R.
77330-MCV-000
|
$329.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRAB RAIL, L.
77340-MCV-000
|
$253.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAB RAIL (INNER)
77350-MCV-000
|
$110.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER SET, RR. *R274M* (DURANGO RED METALLIC)
80110-MEA-670ZE
|
$1,388.73 | ||
|
Unavailable |
|||
|
#7
FENDER SET, RR. (TYPE1)
80110-MCV-600ZA
Superseded by 80110-MCV-S10ZA
|
$1,498.92 | ||
|
Unavailable |
|||
|
#7
FENDER SET, RR. (TYPE1)
80110-MEA-670ZA
Superseded by 80110-MCV-S10ZA
|
$1,498.92 | ||
|
Unavailable |
|||
|
#7
FENDER SET, RR. *NH451M* (ORION SILVER METALLIC)
80110-MEA-670ZB
|
$1,421.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER SET, RR. *RP166M* (KELLY MAGENTA METALLIC)
80110-MEA-670ZN
|
$1,463.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, RR. FENDER
80112-MCV-000
|
$71.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, RR. SEAT
80115-MCV-000
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, RR. FENDER
80117-MCV-000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, ONE-WAY (6X12)
90105-KEB-620
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (8X16)
90128-MCH-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (8X22)
96600-08022-00
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (10X32)
96600-10032-00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (10X40)
96600-10040-00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
