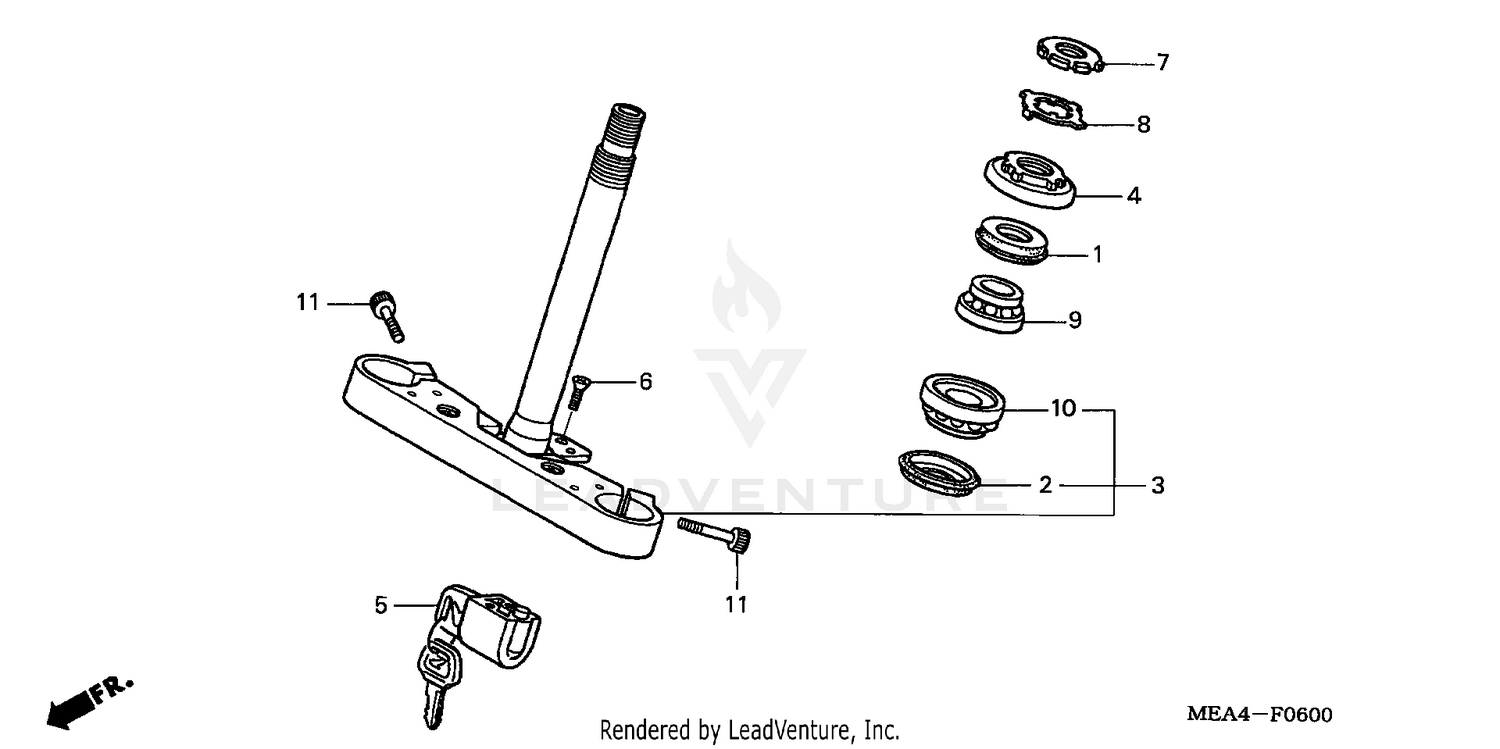

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUST SEAL, STEERING (UPPER) (ARAI)
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
STEM SUB-ASSY., STEERING
53219-MEA-670
|
$321.85 | ||
|
Unavailable |
|||
|
#4
THREAD, STEERING HEAD (UPPER)
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK, HANDLEBAR (HONDALOCK)
53600-GCN-003
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
THREAD, STEERING HEAD TOP (B)
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, HEAD PIPE (UPPER) (KOYO)
91015-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, HEAD PIPE (LOWER) (KOYO)
91016-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SOCKET (10X28)
90120-MEA-900
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
