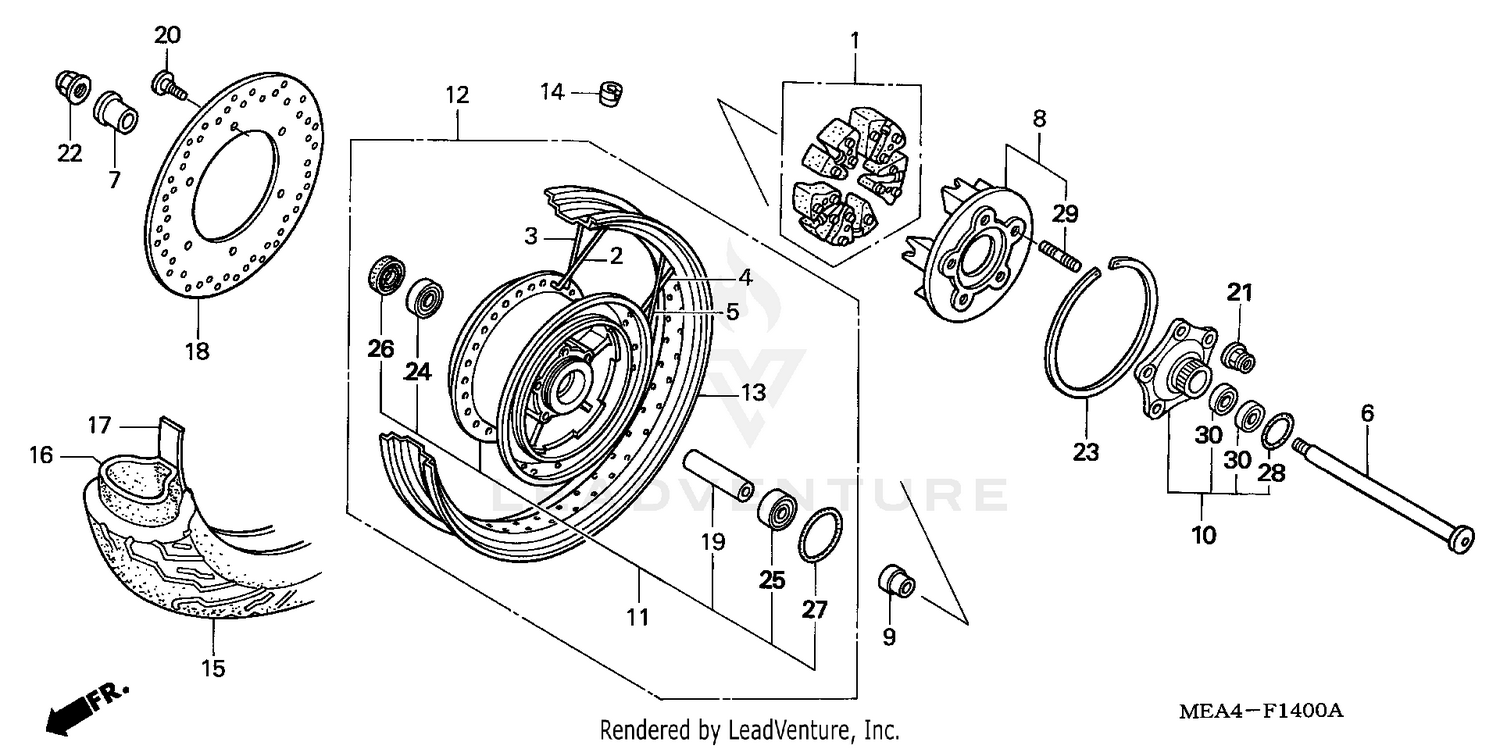

Rear Wheel (vtx1300s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MAZ-000
|
$71.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET A, RR. (R. INSIDE)
06420-MCV-A10
|
$3.63 | ||
|
Unavailable |
|||
|
#3
SPOKE SET B, RR. (R. OUTSIDE)
06421-MCV-A10
|
$3.63 | ||
|
Unavailable |
|||
|
#4
SPOKE SET C, RR. (L. INSIDE)
06422-MCV-A10
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPOKE SET D, RR. (L. OUTSIDE)
06423-MCV-A10
|
$3.63 | ||
|
Unavailable |
|||
|
#6
AXLE, RR. WHEEL
42301-MEA-670
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. WHEEL
42312-MCH-000
|
$42.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE B, FINAL DRIVEN
42614-MCH-000
|
$286.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR A, RR. AXLE DISTANCE
42624-MCH-000
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLANGE SET, FINAL DRIVEN
42630-MCH-000
|
$353.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB SUB-ASSY., RR.
42635-MCV-A10
|
$504.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
WHEEL SUB-ASSY., RR.
42650-MEA-670
Superseded by 42650-MEA-671
|
$753.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIM, RR. WHEEL
42701-MAH-003
Superseded by 42701-MAH-013
|
$197.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIM, RR. WHEEL
42701-MAH-013
|
$197.85 | ||
|
Unavailable |
|||
|
#14
WEIGHT, BALANCE (15G)
42704-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WEIGHT, BALANCE (20G)
42705-MEG-003
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
TIRE, RR. (170/80-15) (77H) (DUNLOP)
42711-MCV-A11
Superseded by 42711-MEM-671
|
$256.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, TIRE (DUNLOP)
42712-MR1-672
|
$50.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLAP, TIRE (45-15) (DUNLOP)
42713-MR1-672
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, RR. BRAKE
43251-MEA-671
|
$186.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, FR. AXLE DISTANCE
44620-MAH-000
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (18MM)
90306-MCH-003
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (INNER) (188)
90651-MCH-000
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6304UU)
91053-MM5-004
|
$38.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (20X47X20.6) (TOYO)
91053-MN5-003
|
$90.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (30X52X7)
91253-442-003
|
$16.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O-RING (61X2)
91302-MA6-003
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (50.5X3.5) (ARAI)
91358-MG9-003
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (50.5X3.5) (ARAI)
91358-MG9-004
Superseded by 91358-MG9-003
|
$4.73 | ||
|
Unavailable |
|||
|
#29
BOLT 2, STUD (12X32)
92900-12032-0E
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6905RS)
91052-KZ4-J21
|
$21.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
