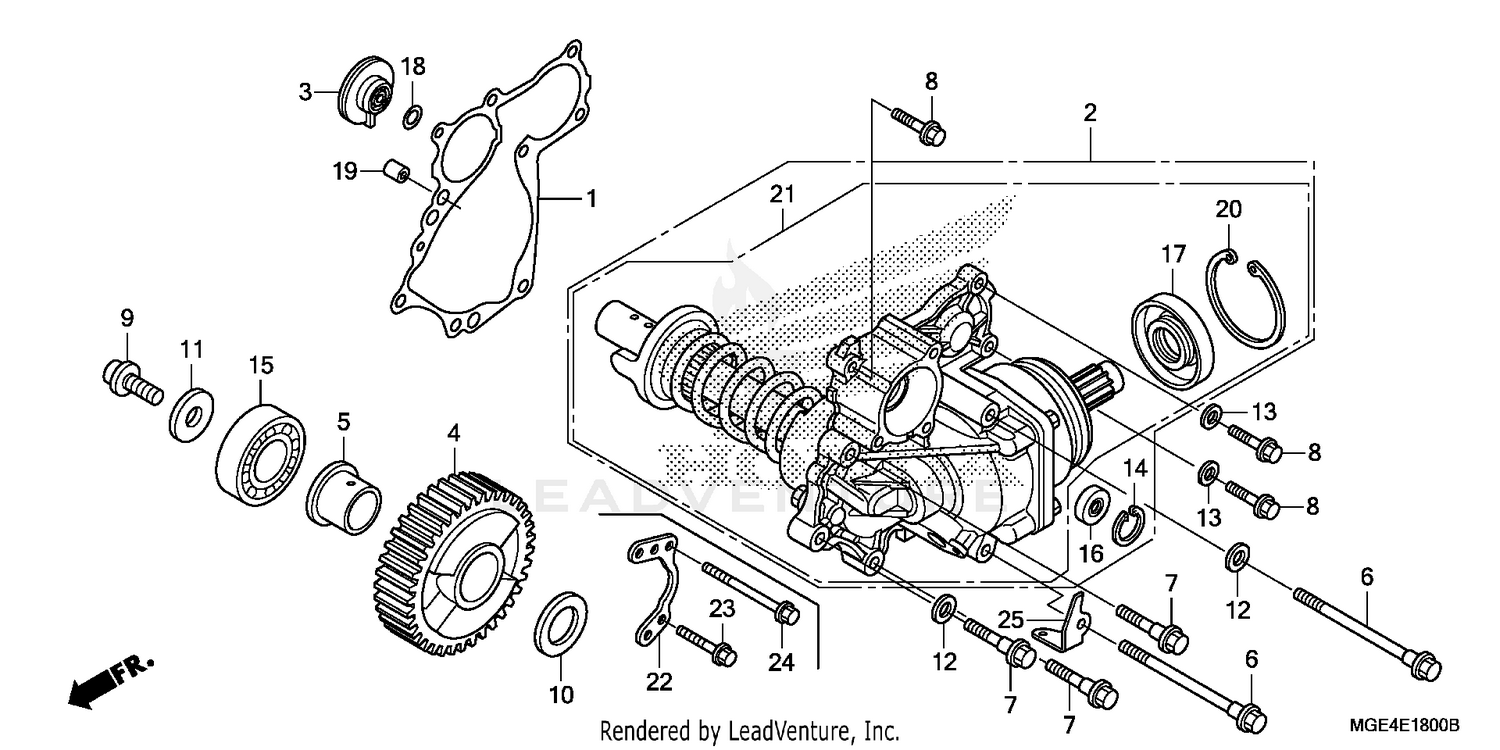

Side Gear Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, SIDE GEAR CASE
11663-MGE-003
|
$26.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY., SIDE GEAR
21100-MGE-700
|
$3,003.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, OIL GUIDE
23218-MGE-010
|
$26.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, FINAL DRIVEN (37T)
23541-MGE-000
|
$139.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR (25X30X28.6)
23733-MGE-000
|
$36.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (8X95)
90005-MGE-010
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, UBS (8X40)
90006-MGE-010
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X28)
90016-GHB-680
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL (10MM)
90037-ME9-000
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL (25X40.4X1.2)
90403-MGE-000
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X36X4)
90414-MGE-D00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (INNER) (26MM)
90603-MGE-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, BALL (6305)
91005-MGE-003
|
$27.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (8X25X8) (ARAI)
91204-MB0-013
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (28X66X8)
91205-MGE-003
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (11.5X3.5)
91309-PJ7-010
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (10X12)
94302-10120
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (INNER) (65MM)
94520-65120
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, HARNESS CLIP
32156-MGH-640
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
