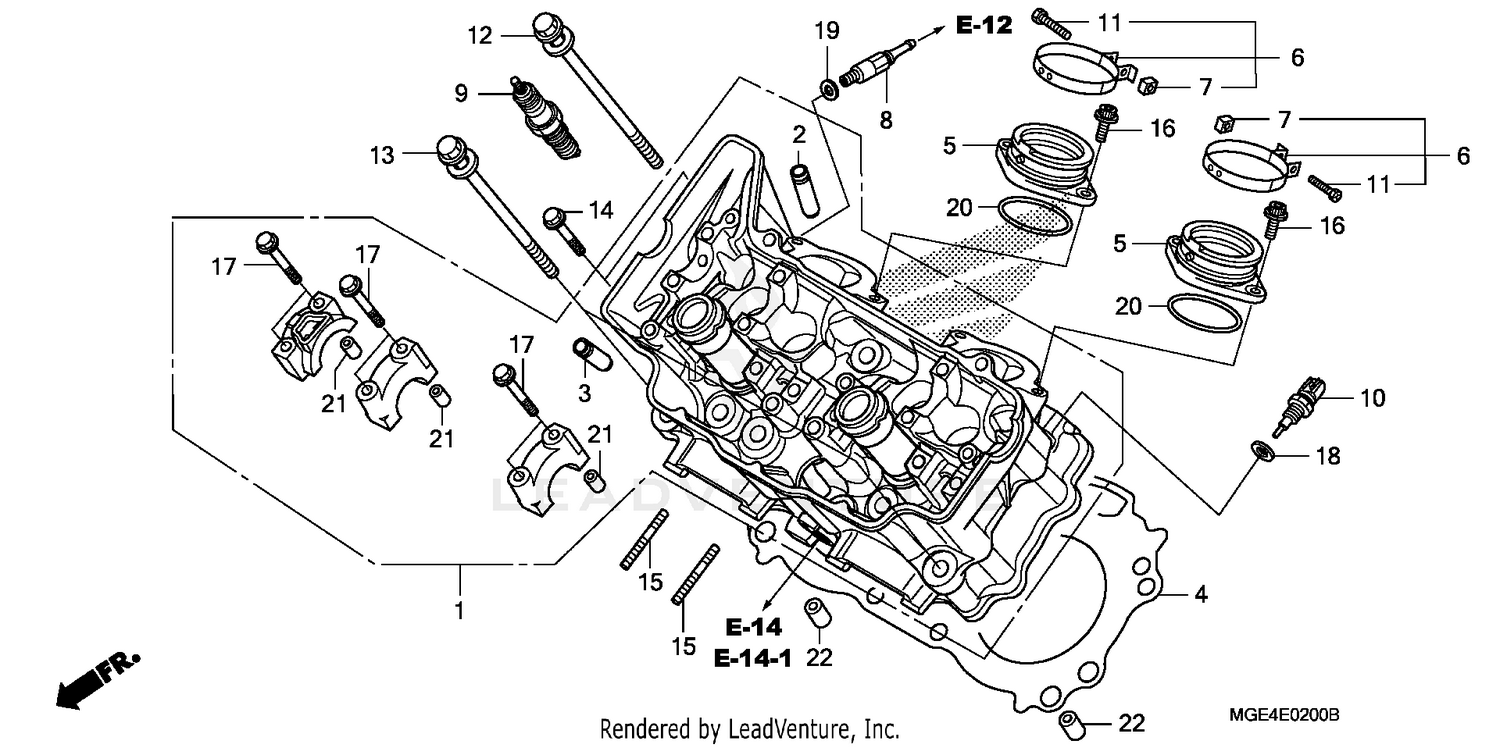

Cylinder Head (fr.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY., FR.
12010-MGE-020
|
$1,556.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MFL-305
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12205-MGE-305
|
$21.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FR. CYLINDER HEAD
12251-MGE-003
|
$91.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, THROTTLE BODY
16210-MGE-000
|
$60.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, INSULATOR
16218-MEL-000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, BLEEDING
19410-MFG-D00
|
$28.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (IMR9E-9HES) (NGK)
31912-MFL-003
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (VUH27ES) (DENSO)
31922-MEL-003
|
$29.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., WATER TEMPERATURE
37870-KRJ-901
|
$37.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, RECESSED (5X22)
90005-MEL-000
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (10X105)
90007-MBB-003
Superseded by 90007-MAT-000
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (10X105)
90007-MAT-000
|
$12.33 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (10X110)
90008-MGE-000
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X35)
90016-GHB-700
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (6X25)
90035-MGE-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE SOCKET (6X16)
90071-MEL-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X40)
90102-KE5-000
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECIAL (12MM)
90454-MC7-000
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET (SHOWA)
90544-439-930
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (48.5X2.5)
91301-MCH-003
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
