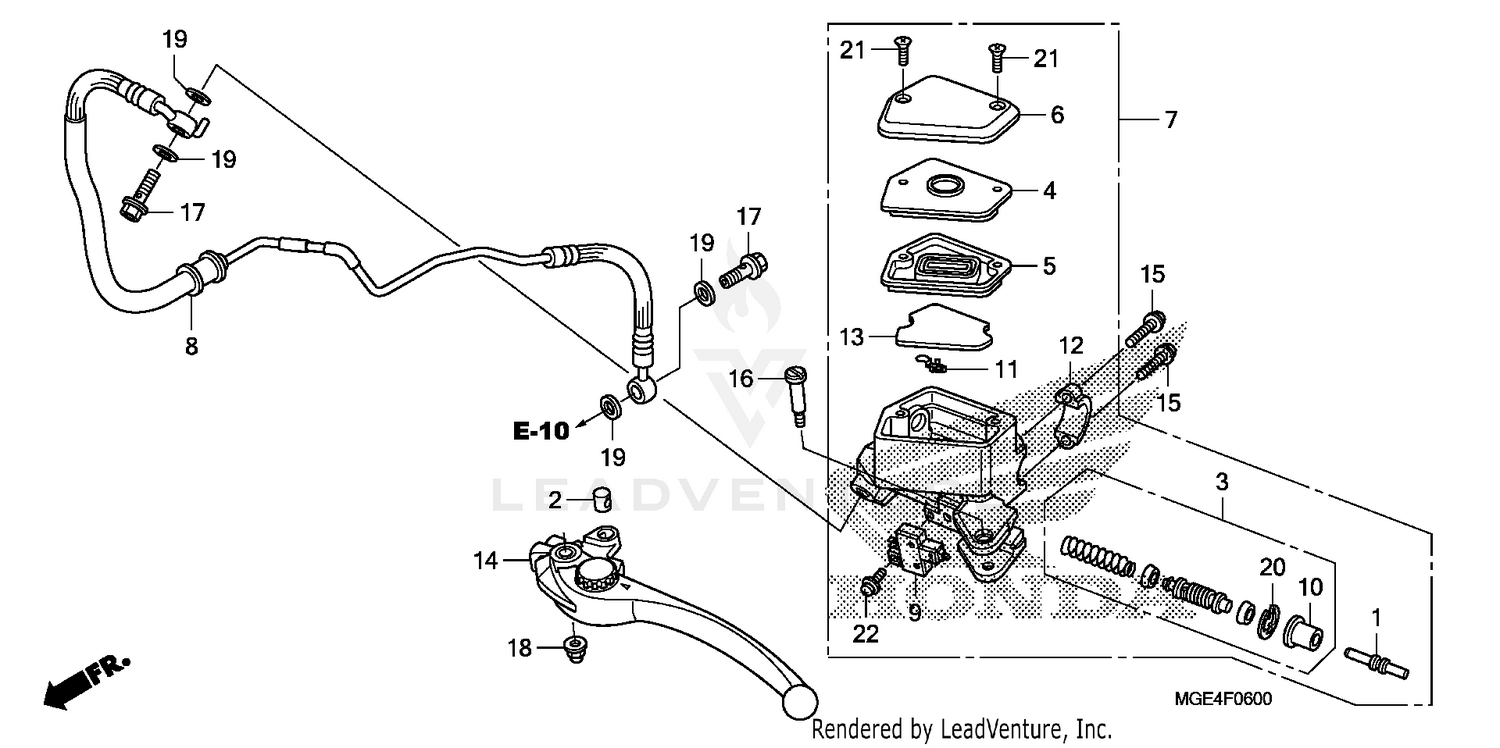

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD, PUSH
22884-MAT-E01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
22885-MB0-006
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON SET, MASTER CYLINDER
22886-MAT-E01
|
$69.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, DIAPHRAGM
22887-MGE-006
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM
22888-MGE-006
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER
22889-MGE-006
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., CLUTCH (COO)
22890-MGE-305
|
$437.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, CLUTCH
22900-MGE-003
|
$241.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT
45504-MAT-E01
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLOAT, FR. MASTER CYLINDER
45523-MGE-006
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER ASSY., L. HANDLE
53180-MEJ-305
Superseded by 53180-MEJ-016
|
$61.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
90010-GHB-660
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#16
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
