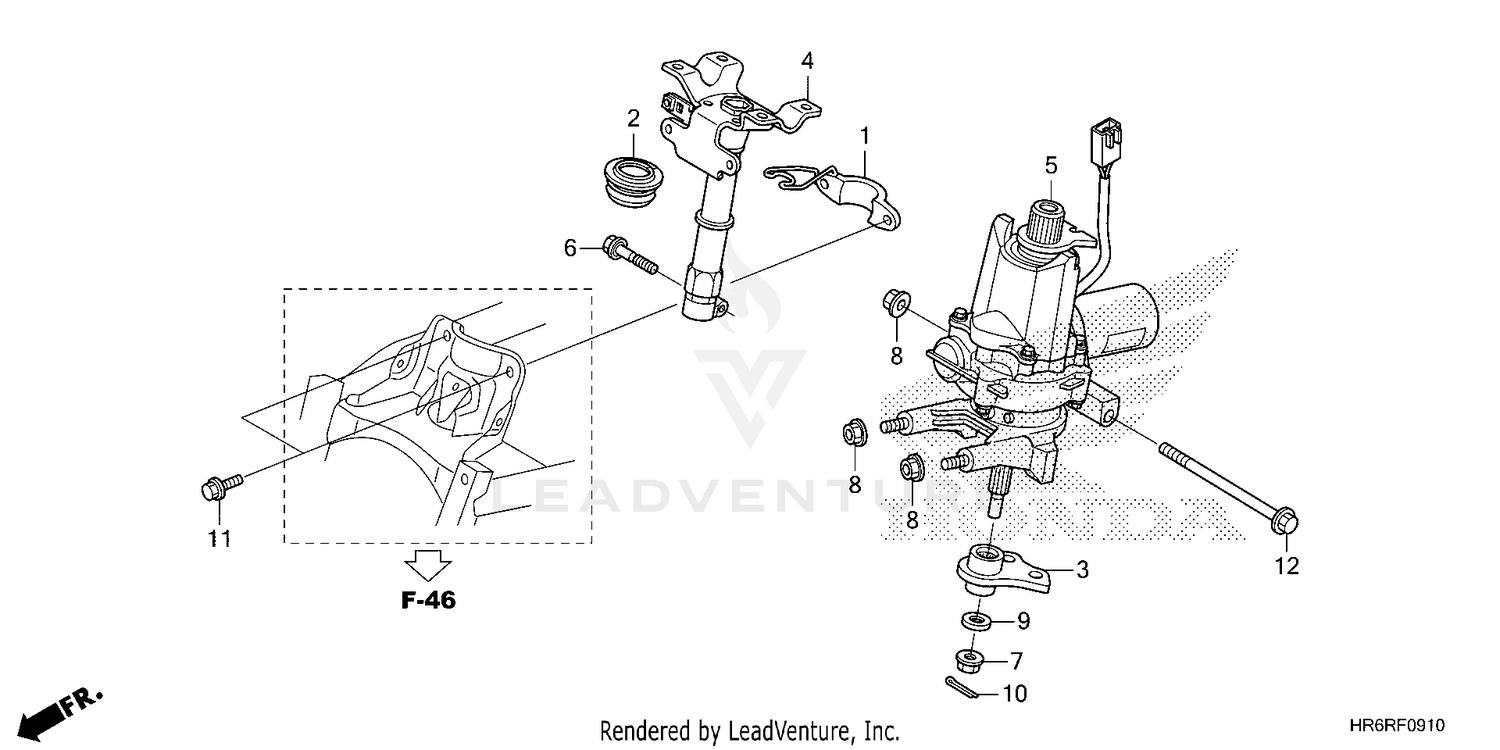

Steering Shaft (eps) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HLDR, STEERING SHAFT
53220-HR6-MF0
|
$16.22 | ||
|
Unavailable |
|||
|
#2
BUSH, STEERING
53221-HP1-003
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, STEERING
53230-HR4-A50
|
$31.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, STEERING
53310-HR3-A70
|
$110.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
EPS UNIT
53600-HR3-A71
|
$1,704.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X39)
90103-HP7-A30
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCK (14MM)
90213-S73-003
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST (14MM)
90417-HA0-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#10
PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X16)
95701-08016-08
|
$1.83 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (10X160)
95801-10160-00
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
