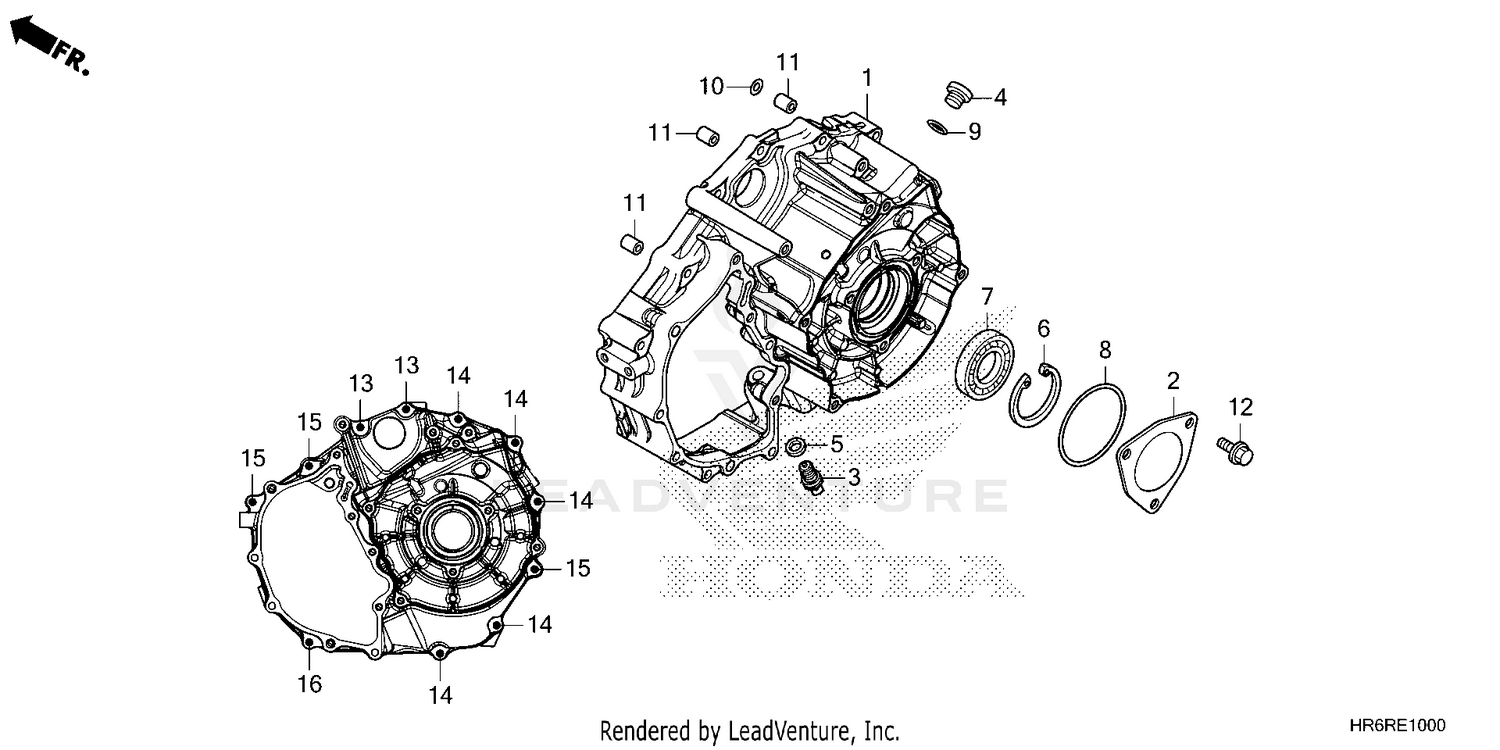

Rear Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. CRANKCASE
11340-HR6-B00
|
$272.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RR. COVER
11342-HP5-600
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, NEUTRAL
35600-HL4-003
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP (14MM)
90084-KY2-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL BOLT (10.2X15X1.4)
90545-MC0-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP (INNER) (42MM)
90602-GFZ-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, RADIAL BALL (6806)
91015-HR0-F21
|
$21.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (58X3)
91301-HR3-A40
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING (7.8X1.9) (NOK)
91313-MN5-004
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X65) (Honda Code 2552545)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
