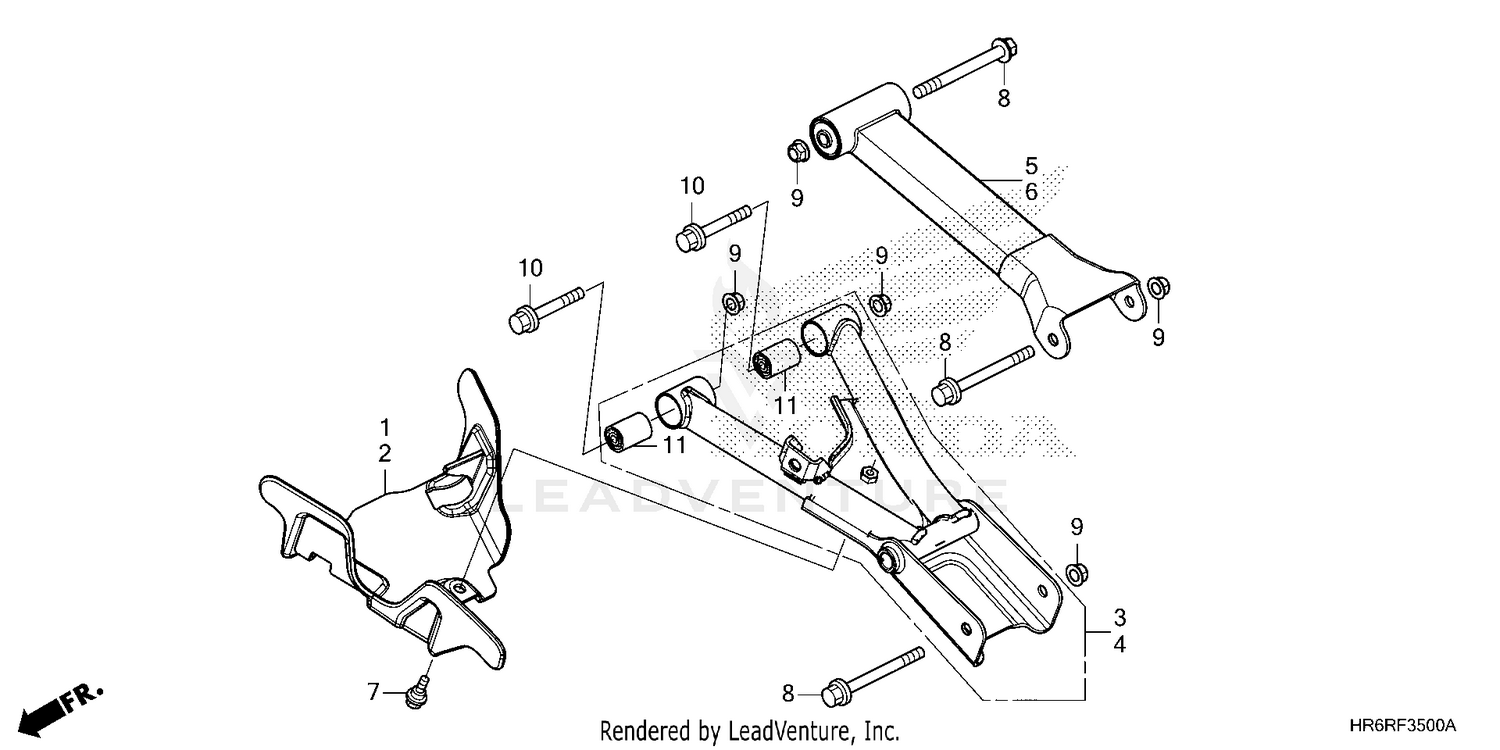

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, R. RR. BOOT
52315-HR6-A60
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, L. RR. BOOT
52325-HR6-A60
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, R. RR. (TYPE1)
52350-HR6-MF0ZA
|
$129.75 | ||
|
Unavailable |
|||
|
#4
ARM, L. RR. (TYPE1)
52360-HR6-MF0ZA
|
$124.65 | ||
|
Unavailable |
|||
|
#5
ARM, R. RR. (TYPE3)
52370-HR6-MJ0ZA
|
$130.91 | ||
|
Unavailable |
|||
|
#6
ARM, L. RR. (TYPE3)
52380-HR6-MJ0ZA
|
$129.05 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (10X110)
90121-HL1-A00
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, FR. ARM (OUTER)
51393-HC4-003
|
$34.02 | ||
|
Available to order. Add to View Price |
|||
