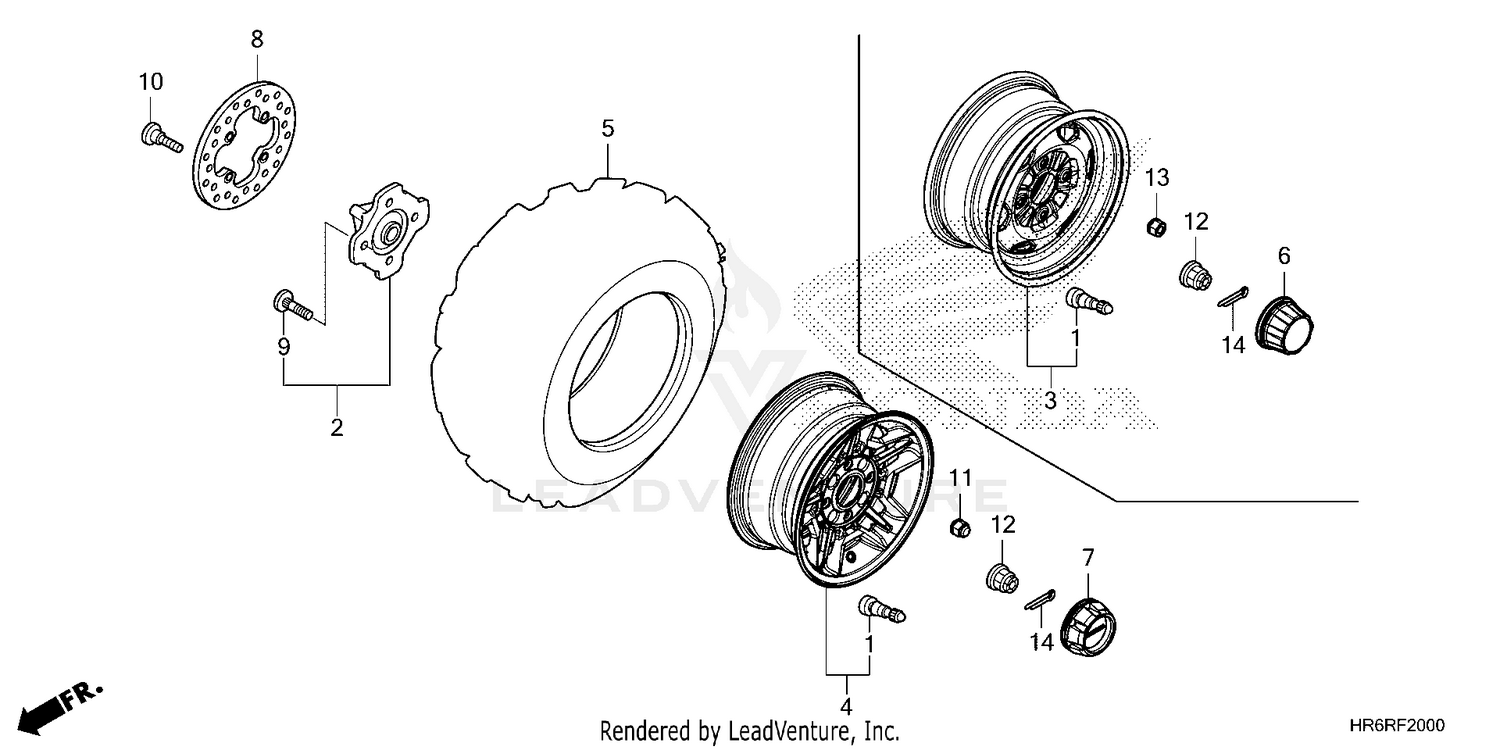

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, RIM (TR412)
42753-HF1-670
Superseded by 42753-HL3-A00
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB SUB-ASSY., FR.
44615-HR3-A20
|
$193.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WHEEL SUB-ASSY., FR.
44650-HR6-A60
|
$193.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
TIRE (25X8-12) (MAXXIS)
44711-HR4-AJ1
|
$94.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, WHEEL CENTER
44732-HR6-A60
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISK, FR. BRAKE (LONGZHONG)
45251-HR6-A62
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WHEEL (10X36)
90103-HN8-300
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FR. DISK (8X24) (SAGA)
90105-KR3-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WHEEL (FUSE RASHI)
90301-HR6-A61
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, AXLE (20MM)
90304-HM7-A10
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER (4.0X40)
94201-40400
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
