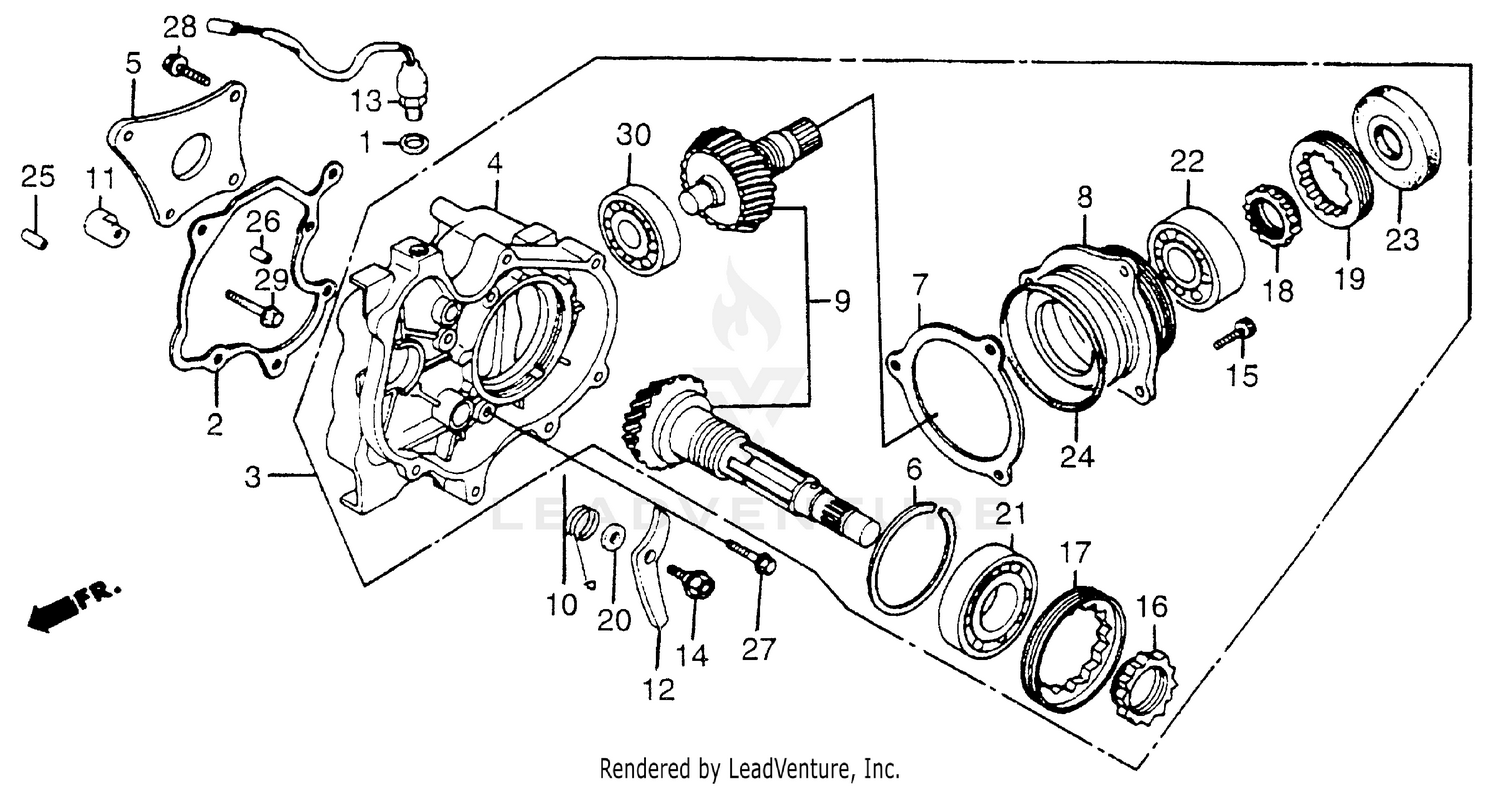

Side Gear Case + Cross Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR (10MM)
11205-969-000
|
$4.94 | ||
|
Unavailable |
|||
|
#2
GASKET, SIDE GEAR CASE
11397-969-000
Superseded by 11397-969-306
|
$3.45 | ||
|
Unavailable |
|||
|
#2
GASKET, SIDE GEAR CASE
11397-969-306
|
$3.45 | ||
|
Unavailable |
|||
|
#3
CASE ASSY., SIDE GEAR
21100-969-000
|
$1,209.37 | ||
|
Unavailable |
|||
|
#4
CASE, SIDE GEAR
21200-969-000
|
$544.16 | ||
|
Unavailable |
|||
|
#5
STAY, SIDE GEAR CASE
21205-969-000
|
$16.09 | ||
|
Unavailable |
|||
|
#6
SHIM A, FINAL DRIVE
21311-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM B, FINAL DRIVE
21312-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM C, FINAL DRIVE
21313-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM D, FINAL DRIVE
21314-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM E, FINAL DRIVE
21315-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM F, FINAL DRIVE
21316-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#6
SHIM G, FINAL DRIVE
21317-969-000
|
$14.24 | ||
|
Unavailable |
|||
|
#7
SHIM A, FINAL DRIVEN (0.40) (NOT AVAILABLE)
21341-969-000
|
$13.20 | ||
|
Unavailable |
|||
|
#7
SHIM B, FINAL DRIVEN (0.45)
21342-969-000
|
$16.90 | ||
|
Unavailable |
|||
|
#7
SHIM C, FINAL DRIVEN (0.50)
21343-969-000
|
$16.90 | ||
|
Unavailable |
|||
|
#7
SHIM D, FINAL DRIVEN (0.55)
21344-969-000
|
$16.90 | ||
|
Unavailable |
|||
|
#7
SHIM E, FINAL DRIVEN (0.60)
21345-969-000
|
$16.90 | ||
|
Unavailable |
|||
|
#7
SHIM F, FINAL DRIVEN (0.30)
21346-969-000
|
$16.21 | ||
|
Unavailable |
|||
|
#7
SHIM G, FINAL DRIVEN (0.35)
21347-969-000
|
$16.21 | ||
|
Unavailable |
|||
|
#8
HOLDER A, BEARING (NOT AVAILABLE)
21371-969-000
|
$109.62 | ||
|
Unavailable |
|||
|
#9
SHAFT SET, FINAL DRIVE
23200-969-000
|
$326.47 | ||
|
Unavailable |
|||
|
#10
SPRING, STOPPER LEVER (NOT AVAILABLE)
24718-969-000
|
$3.38 | ||
|
Unavailable |
|||
|
#11
CAM, STOPPER LEVER
24719-969-000
|
$22.20 | ||
|
Unavailable |
|||
|
#12
LEVER, REVERSE STOPPER
24720-969-000
Superseded by 24720-969-020
|
$17.22 | ||
|
Unavailable |
|||
|
#12
LEVER, REVERSE STOPPER
24720-969-010
Superseded by 24720-969-020
|
$17.22 | ||
|
Unavailable |
|||
|
#12
LEVER, REVERSE STOPPER
24720-969-020
|
$17.22 | ||
|
Unavailable |
|||
|
#12
LEVER, REVERSE STOPPER
24720-969-020
|
$17.22 | ||
|
Unavailable |
|||
|
#13
SWITCH ASSY., REVERSE
35600-969-003
|
$41.79 | ||
|
Unavailable |
|||
|
#14
PIVOT, SUB-TRANSMISSION DRUM STOPPER (NOT AVAILABLE)
90025-969-000
|
$4.03 | ||
|
Unavailable |
|||
|
#15
BOLT, SOCKET (8X22)
90061-MB0-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LOCK (28MM)
90243-ME5-000
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (70MM) (NOT AVAILABLE)
90244-969-000
|
$32.09 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK (24MM)
90245-969-000
|
$20.70 | ||
|
Unavailable |
|||
|
#19
NUT, LOCK (56MM)
90246-969-000
|
$33.24 | ||
|
Unavailable |
|||
|
#20
WASHER (10MM) (NOT AVAILABLE)
90401-969-010
|
$2.88 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (63/28)
91012-969-000
Superseded by 91009-HC0-003
|
$38.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (5205)
91014-969-003
|
$159.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (22X58X6) (NOK) (NOT AVAILABLE)
91206-969-003
Superseded by 91206-969-005
|
$7.24 | ||
|
Unavailable |
|||
|
#24
O-RING (72.5X2.2)
91301-969-003
|
$3.91 | ||
|
Unavailable |
|||
|
#25
PIN A, DOWEL (8X14) (YAMADA)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN A, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X25)
95700-08025-00
Superseded by 95701-08025-00
|
$2.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X20)
96000-060-2000
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X28)
96000-06028-00
Superseded by 96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (6302)
96100-63020-00
|
$10.80 | ||
|
Unavailable |
|||
