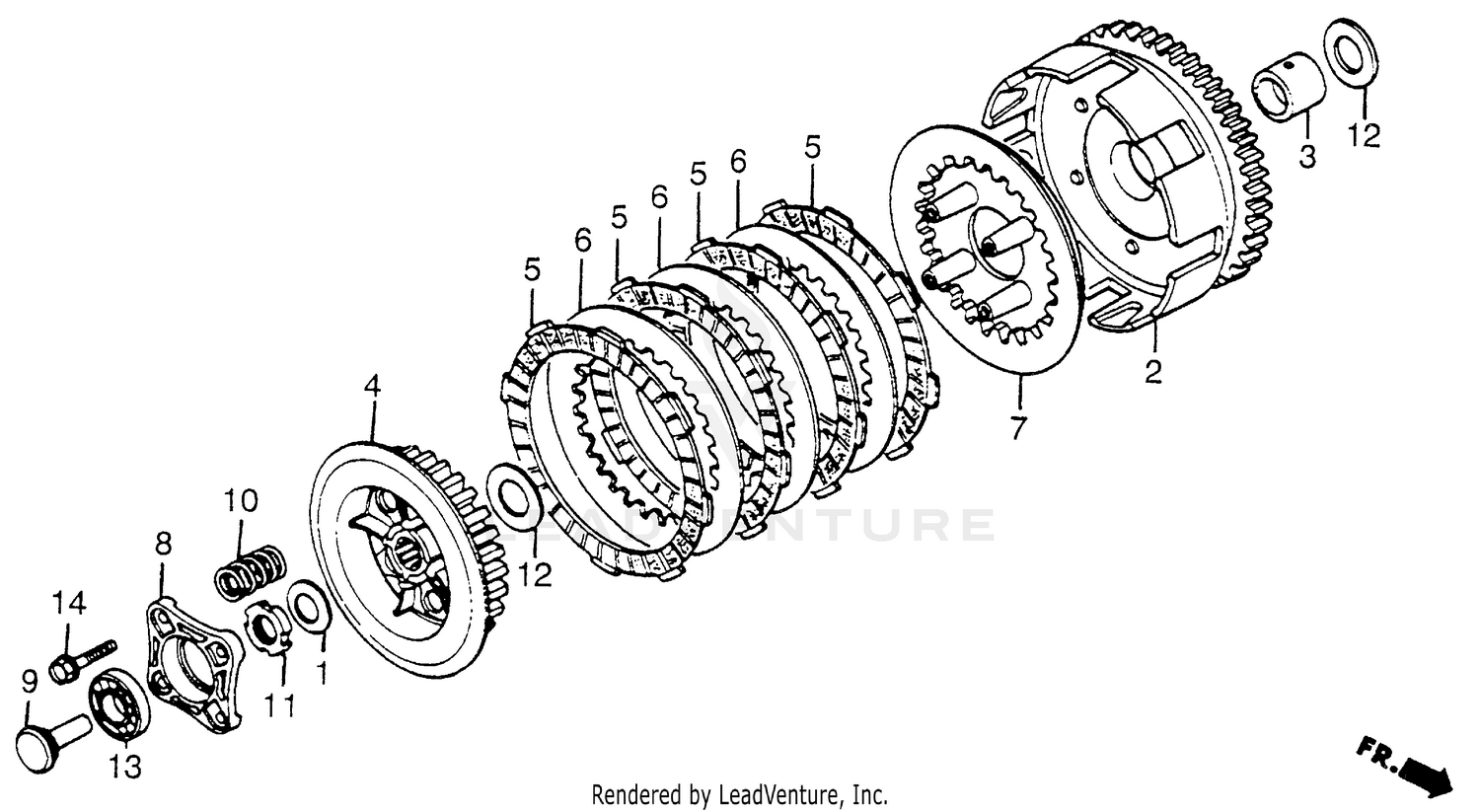

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, OIL FILTER ROTOR LOCKING
15451-107-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER)
22100-958-000
|
$236.55 | ||
|
Unavailable |
|||
|
#3
GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)
22116-958-000
|
$17.64 | ||
|
Unavailable |
|||
|
#4
CENTER, CLUTCH (NOT AVAILABLE)
22121-958-000
|
$46.27 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-GF6-000
Superseded by 22201-166-000
|
$21.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-166-000
|
$21.15 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH
22311-KN4-680
|
$7.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE, CLUTCH
22311-107-000
Superseded by 22311-KN4-680
|
$7.93 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH PRESSURE
22350-115-020
|
$49.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH LIFTER
22361-437-000
|
$17.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, CLUTCH LIFTER
22366-958-000
|
$13.09 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH
22401-958-000
|
$5.53 | ||
|
Unavailable |
|||
|
#11
NUT, LOCK (16MM)
90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, LOCK (16MM)
90231-200-010
Superseded by 90231-KCS-651
|
$5.27 | ||
|
Unavailable |
|||
|
#12
WASHER (20MM) (NOT AVAILABLE)
90432-958-000
|
$6.66 | ||
|
Unavailable |
|||
|
#13
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
