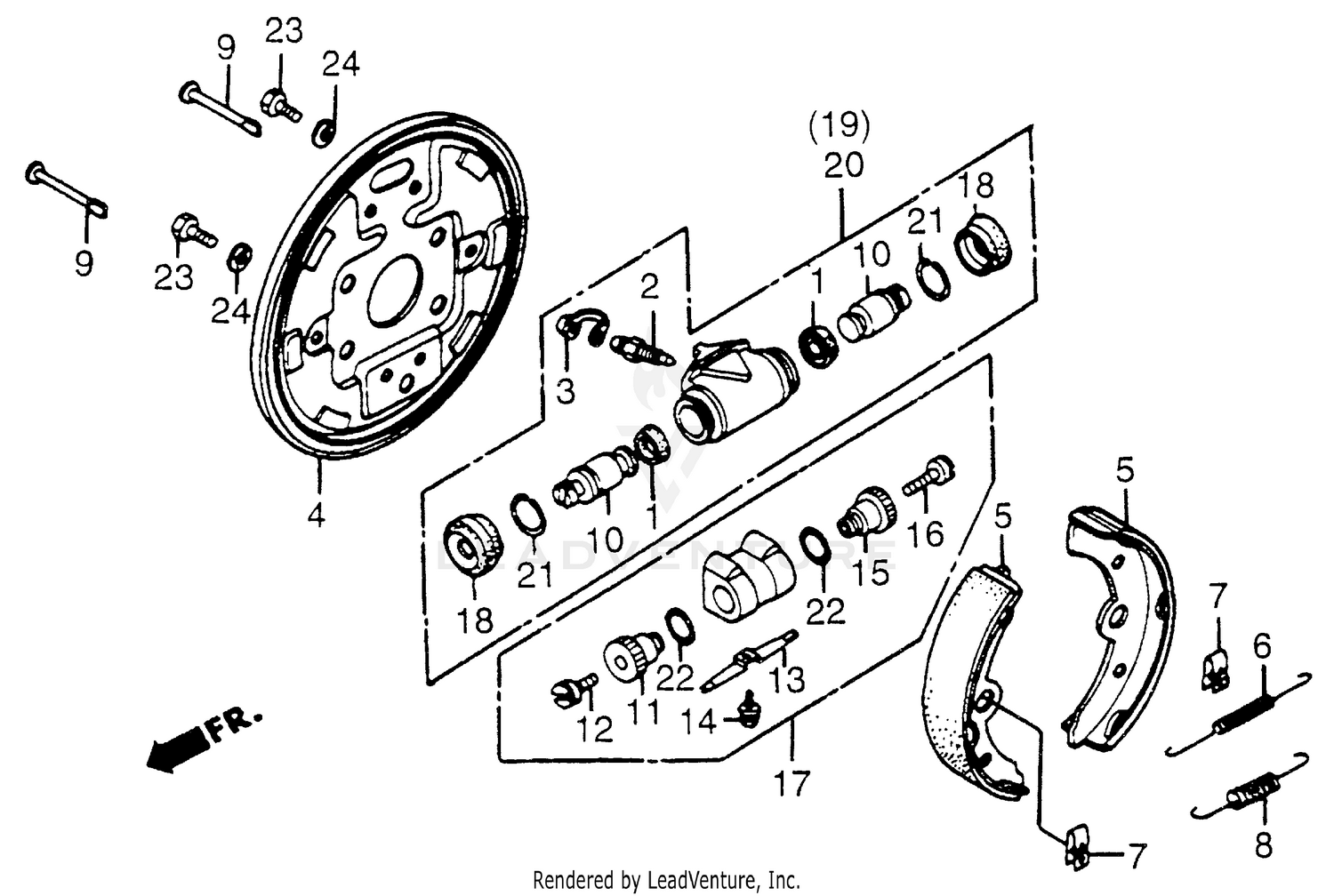

Front Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUP, PISTON
43341-602-003
|
$6.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLATE, BACK
45110-VM5-003
|
$52.29 | ||
|
Unavailable |
|||
|
#5
SHOE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45151-VM0-003
Superseded by 45151-VM0-771
|
$10.48 | ||
|
Unavailable |
|||
|
#5
SHOE (NOT AVAILABLE)
45151-VM0-771
|
$10.48 | ||
|
Unavailable |
|||
|
#6
SPRING A, BRAKE
45171-VM0-003
|
$3.78 | ||
|
Unavailable |
|||
|
#7
SPRING, SHOE CLAMP
45172-SA0-003
Superseded by 45172-S04-003
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SHOE CLAMP
45172-S04-003
|
$1.83 | ||
|
Unavailable |
|||
|
#8
BRAKE, SPRING B
45173-VM0-003
|
$3.78 | ||
|
Unavailable |
|||
|
#9
PIN, TENSIONER
45175-VM0-003
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON, WHEEL CYLINDER
45314-VM0-003
|
$17.73 | ||
|
Unavailable |
|||
|
#11
NUT, R. ADJUSTER
45316-VM0-003
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, R. FR. ADJUSTING
45317-634-013
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, LOCK
45318-VM0-003
|
$6.84 | ||
|
Unavailable |
|||
|
#14
SCREW-WASHER (4X6)
45319-634-003
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, L. ADJUSTER
45336-VM0-003
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, L. ADJUSTING
45337-634-013
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER ASSY.
45340-HA8-003
|
$65.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER ASSY.
45340-VM0-003
Superseded by 45340-HA8-003
|
$65.81 | ||
|
Unavailable |
|||
|
#18
BOOT, WHEEL CYLINDER
45342-VM0-003
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CYLINDER ASSY., R. (NOT AVAILABLE)
45350-VM5-003
|
$48.00 | ||
|
Unavailable |
|||
|
#20
CYLINDER ASSY., L. (NOT AVAILABLE)
45370-VM5-003
|
$61.24 | ||
|
Unavailable |
|||
|
#21
CLIP, PISTON
90651-VM0-003
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14X1.5)
91351-VM0-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X12)
92000-06012-0H
Superseded by 92101-06012-0H
|
$1.43 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X12)
92000-06012-08
Superseded by 92101-06012-0H
|
$1.43 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X20)
92101-06012-0H
|
$1.43 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
