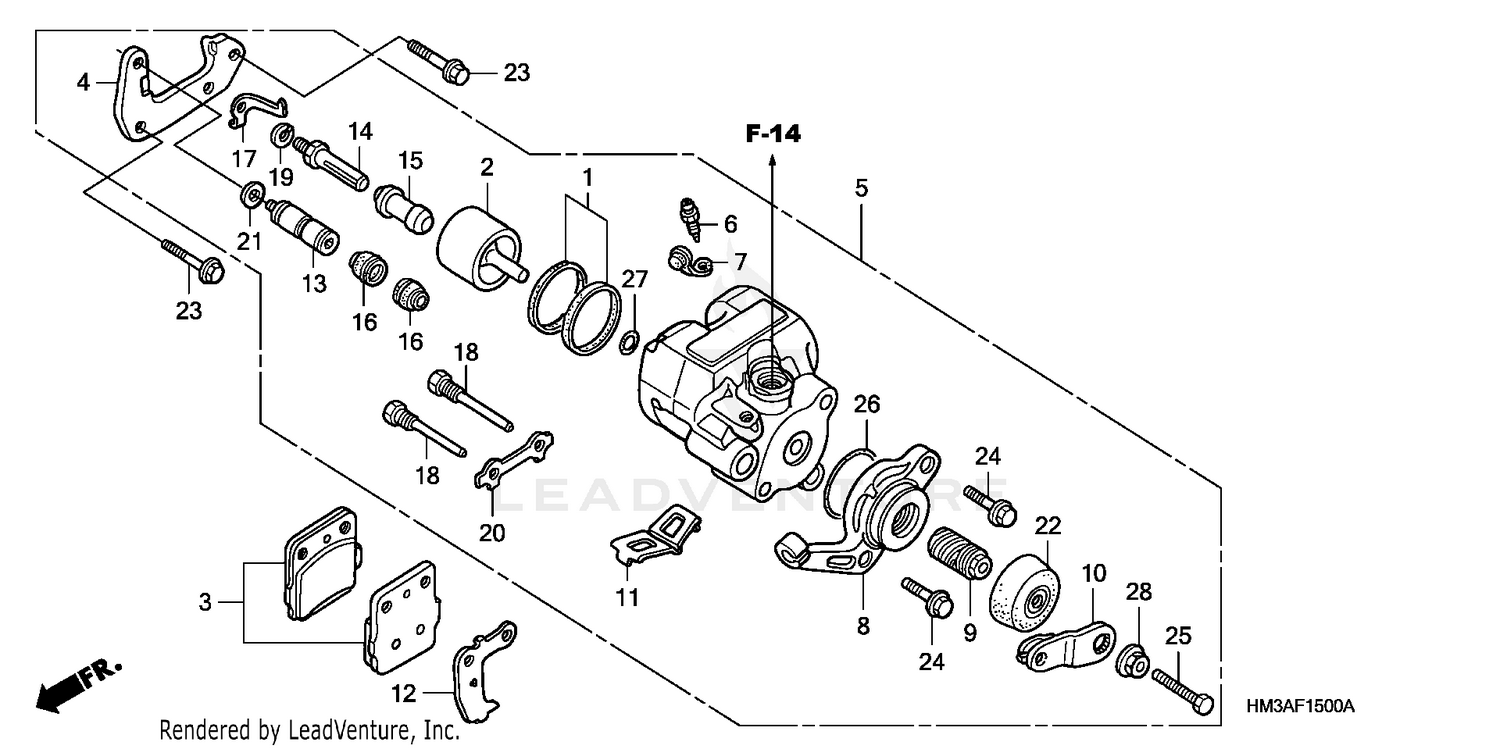

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06451-961-405
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (NISSIN)
43109-HC0-681
|
$132.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, RR. (NISSIN)
43120-HA5-305
|
$51.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, RR.
43210-HC0-671
|
$80.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SUB-ASSY., RR. BRAKE
43250-HM3-305
|
$466.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE, PARKING
43360-HM3-006
|
$39.59 | ||
|
Unavailable |
|||
|
#9
SHAFT, L.
43361-961-006
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM
43362-HA2-006
|
$11.58 | ||
|
Unavailable |
|||
|
#11
SPRING, PAD
45108-166-006
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM
45114-GE3-601
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SLIDE
45115-166-006
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, PIN
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOOT, PIN
45133-166-016
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
INDICATOR, R.
45213-HC0-006
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, HANGER
45215-166-006
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE
45216-166-006
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, TONGUED
45217-166-006
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CONICAL SPRING
45218-166-006
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL, MASTER CYLINDER
46184-611-000
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X28)
90102-KV3-700
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (8X25)
90116-410-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (8X40)
90126-961-006
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (31)
91357-964-006
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (P8)
91358-964-006
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-WASHER (8MM)
94071-08080
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
