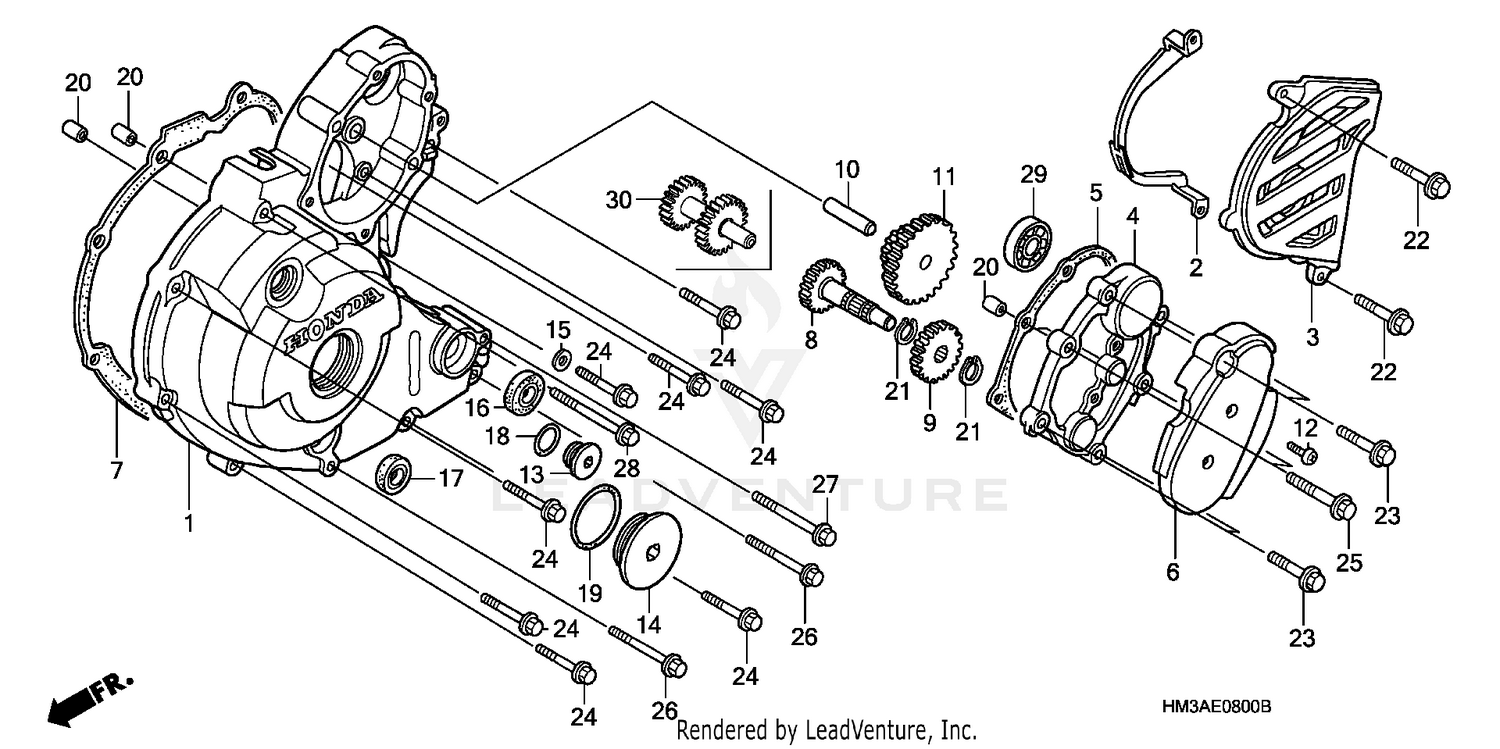

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-HM3-670
|
$182.02 | ||
|
Unavailable |
|||
|
#2
GUIDE, DRIVE CHAIN
11350-HM3-A00
|
$30.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, L. RR. CRANKCASE
11351-HM3-670
|
$32.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, STARTING GEAR
11355-HM3-670
|
$111.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, STARTING GEAR COVER
11356-HM3-670
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, STARTING GEAR COVER
11357-HM3-670
|
$22.01 | ||
|
Unavailable |
|||
|
#7
GASKET, L. CRANKCASE COVER
11395-HM3-670
|
$30.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, STARTER REDUCTION (21T)
28130-HM3-670
|
$45.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR C, STARTER REDUCTION (23T)
28131-HM3-670
|
$36.75 | ||
|
Unavailable |
|||
|
#10
SHAFT, REDUCTION GEAR
28132-KK3-830
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, STARTER REDUCTION (68T/26T)
28140-HM3-670
|
$159.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (4X12)
90017-HA0-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (14MM)
90084-KY2-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP (30MM)
90087-HB5-000
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (11MM)
90425-300-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
OIL SEAL (13X28X7) (KOYO)
91201-HA0-003
Superseded by 91203-HC4-005
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (13X28X7) (KOYO)
91203-HC4-005
|
$8.09 | ||
|
Unavailable |
|||
|
#17
OIL SEAL (12X24X5) (NOK)
91203-436-004
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP, OUTER (15MM)
94510-15000
|
$1.20 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X55)
96001-06055-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
