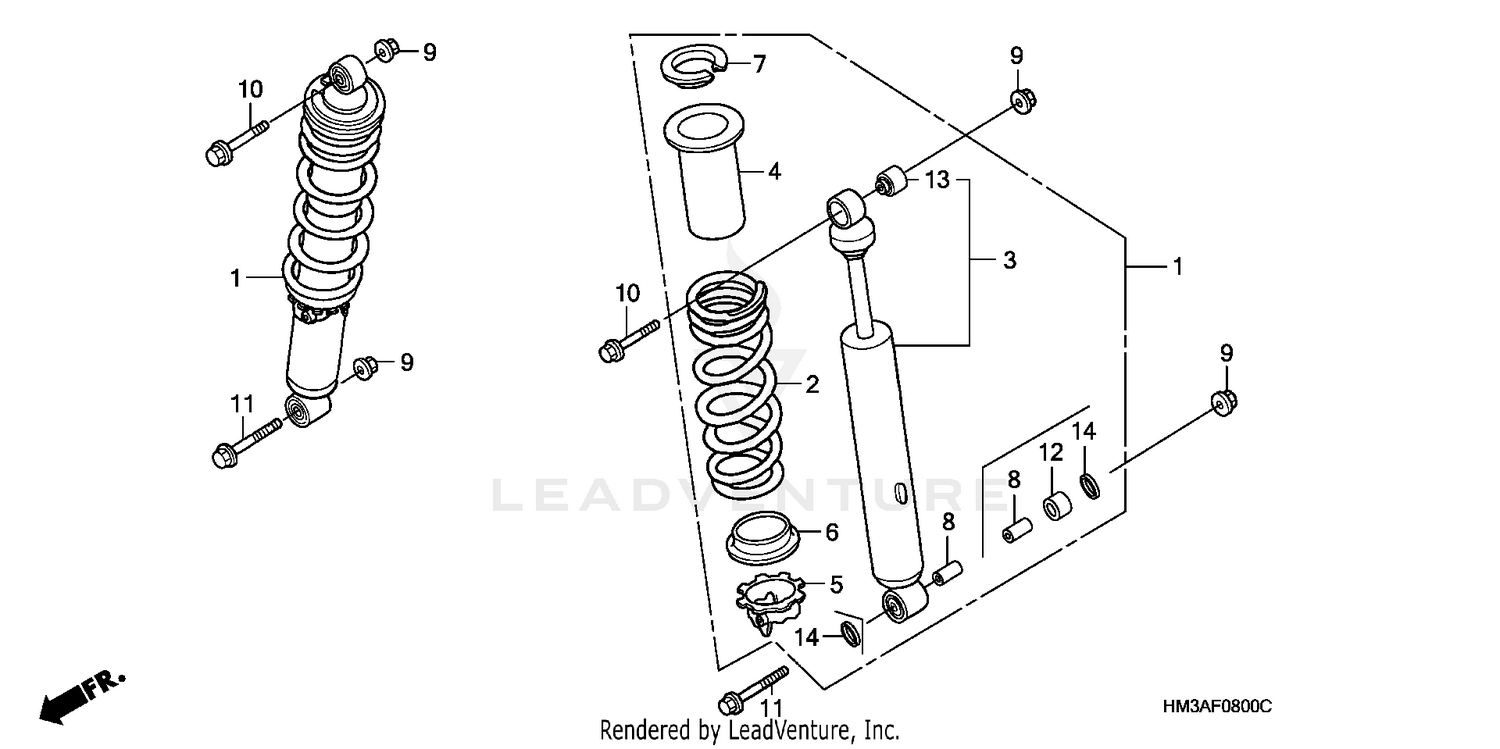

Front Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., FR.
51400-HM3-A01
|
$358.69 | ||
|
Unavailable |
|||
|
#2
SPRING, FR. FORK
51401-HM3-004
|
$165.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, FR.
51410-HM3-A01
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FR. DUST
51415-HC0-004
|
$25.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, SPRING
51422-HC0-004
|
$39.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SPRING (A)
51423-HC0-004
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPRING (B)
51424-HC0-004
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. FORK (LOWER)
51486-HC0-004
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X40)
95801-10040-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X50)
95801-10050-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
