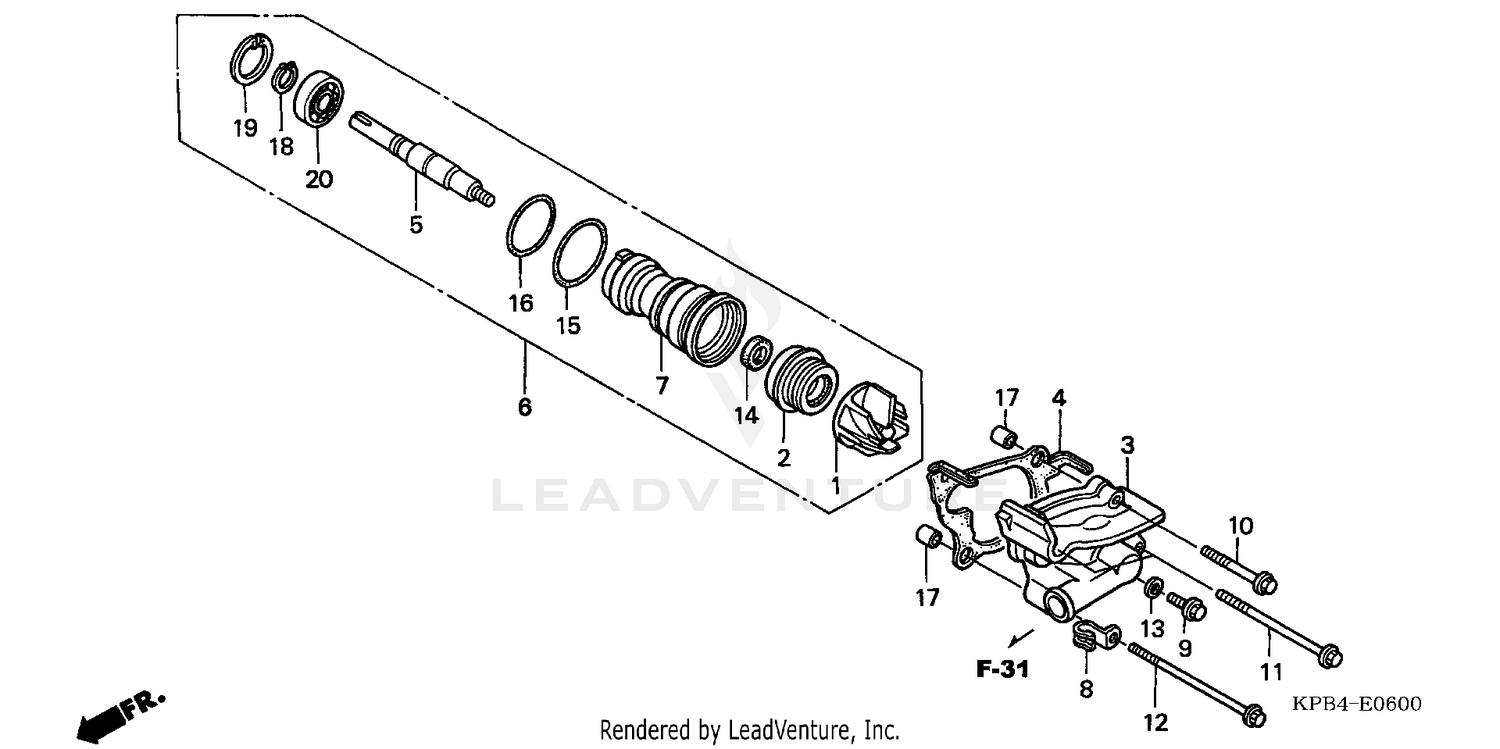

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER, WATER PUMP
19215-KAB-000
|
$59.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, MECHANICAL
19217-MAL-300
|
$64.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER, WATER PUMP
19221-KAB-000
|
$143.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
19229-KAB-010
Superseded by 19229-KAB-020
|
$3.52 | ||
|
Unavailable |
|||
|
#5
SHAFT, WATER PUMP
19241-KAB-000
|
$49.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, WATER PUMP
19250-KAB-010
|
$277.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, WATER PUMP SHAFT
19251-KAB-000
|
$76.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, IGNITION CABLE
32906-061-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X12) (NSHF)
90004-GHB-610
|
$3.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X40) (NSHF)
90004-GHB-710
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X95) (NSHF)
90004-GHB-820
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X118)
90084-KCY-670
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER A (6MM)
90478-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (15X24X5)
91201-GG0-003
Superseded by 91204-GK8-003
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (15X24X5)
91201-812-013
Superseded by 91204-GK8-003
|
$6.11 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (15X24X5)
91201-812-015
Superseded by 91204-GK8-003
|
$6.11 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (15X24X5)
91204-GK8-003
|
$6.11 | ||
|
Unavailable |
|||
|
#15
O-RING (35.2X2.6)
91301-KE1-003
Superseded by 91301-KE1-004
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (35.2X2.6)
91301-KE1-004
|
$5.05 | ||
|
Unavailable |
|||
|
#16
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (INNER) (28MM)
94520-28000
|
$1.33 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
