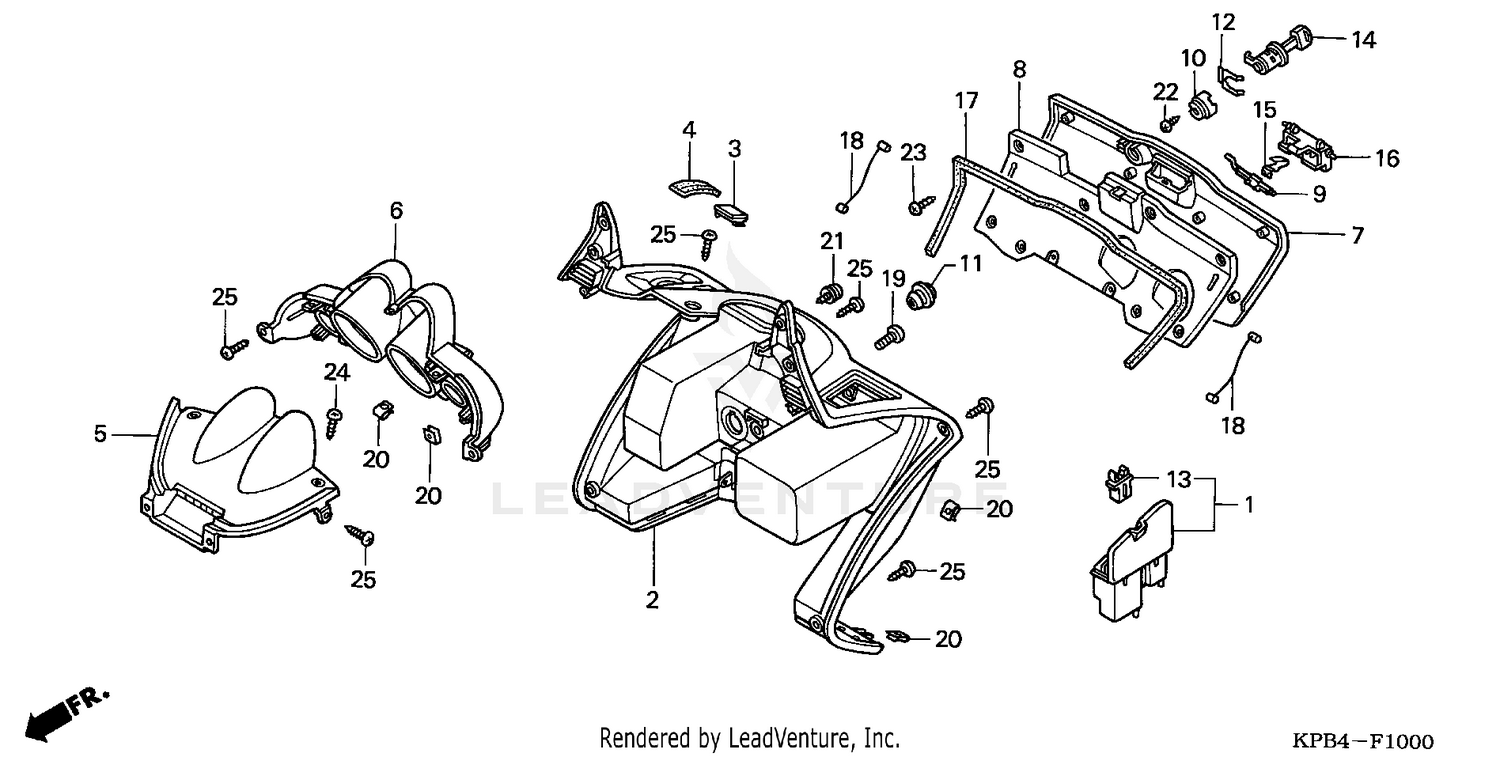

Inner Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX ASSY., TICKET *NH220R* (SMOKE GRAY)
64250-KPB-000ZA
|
$32.05 | ||
|
Unavailable |
|||
|
#2
COVER (INNER) *NH220R* (SMOKE GRAY)
64310-KPB-000ZA
|
$135.92 | ||
|
Unavailable |
|||
|
#3
CAP, SWITCH HOLE *NH220R* (SMOKE GRAY)
64311-KPB-000ZA
|
$6.84 | ||
|
Unavailable |
|||
|
#4
COVER, BRAKE LOCK
64315-KPB-000
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
VISOR, FR. METER *NH220R* (SMOKE GRAY)
64336-KPB-000ZA
|
$28.51 | ||
|
Unavailable |
|||
|
#6
VISOR, RR. METER *NH220R* (SMOKE GRAY)
64337-KPB-000ZA
|
$23.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID (OUTER) *NH220R* (INNER LID) (SMOKE GRAY)
64405-KPB-000ZA
|
$79.14 | ||
|
Unavailable |
|||
|
#8
LID (INNER) *NH220R* (INNER LID) (SMOKE GRAY)
64415-KPB-000ZA
|
$21.32 | ||
|
Unavailable |
|||
|
#9
ARM, LID LOCK
64416-KPB-000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, LID LOCK
64417-KPB-000
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET B, SIDE PANEL
70529-657-670
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, LOCK KEY SETTING
75581-673-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
LATCH, TICKET BOX
77235-KPB-000
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK ASSY., BOX LID (INNER)
77260-KPB-000
|
$24.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, GLOVE BOX
77504-SJ6-013
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK, DOCUMENT *NH220R* (SMOKE GRAY)
77507-S70-013ZC
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, BOX (INNER)
81146-KPB-010
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, LID
81219-KPB-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL (6X8)
90112-KFG-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPRING (4MM)
90302-SA4-003
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X10)
93891-05010-07
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, TAPPING (3X8)
93901-22110
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X10)
93903-342G0
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (4X12)
93903-34380
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, TAPPING (4X16)
93903-34480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
