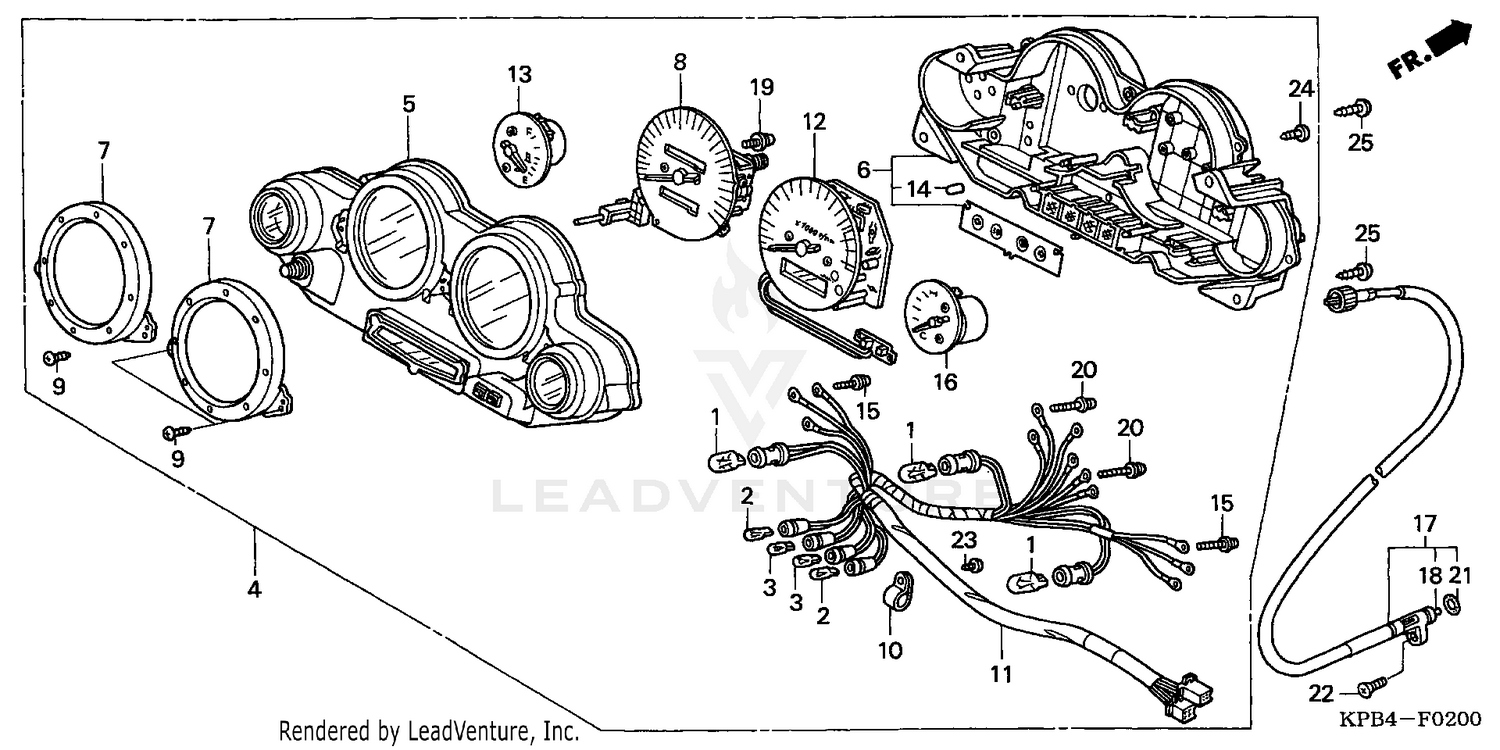

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
34908-MB9-871
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, WEDGE BASE (12V3W) (TOSHIBA)
34908-KM1-671
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, WEDGE BASE (12V 1.7W) BULB, WEDGE BASE (12V1.4W)
34908-MG9-951
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
METER ASSY., COMBINATION
37100-KPB-671
|
$890.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE ASSY. (UPPER)
37102-KPB-008
|
$53.87 | ||
|
Unavailable |
|||
|
#6
CASE ASSY. (LOWER)
37103-KPB-008
|
$91.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, METER
37105-KPB-008
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPEEDOMETER (MPH/KPH)
37200-KPB-601
|
$238.36 | ||
|
Unavailable |
|||
|
#9
SCREW, TAPPING (3X14)
37214-KV7-671
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
37215-MB6-831
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
SOCKET
37223-KPB-008
|
$129.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
TACHOMETER (RPM)
37250-KPB-008
|
$211.88 | ||
|
Unavailable |
|||
|
#13
FUEL METER
37300-KPB-008
|
$96.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, CUSHION
37304-198-901
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (3X22)
37305-KE5-008
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
METER, TEMPERATURE
37400-KPB-008
|
$73.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE ASSY., SPEEDOMETER
44830-KS4-010
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE (INNER)
44831-KS4-000
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER, SPECIAL (4X10)
90035-166-008
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (3X18)
90133-SL9-003
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (6.8X1.9)
91301-027-000
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (6.8X1.9) O-RING B (6.8X1.9)
91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#21
O-RING (6.8X1.9)
91310-MC7-003
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#22
SCREW, OVAL (5X16)
93700-05016-0G
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING (4X16)
93903-24420
|
$0.95 | ||
|
Unavailable |
|||
|
#25
SCREW, TAPPING (5X16)
93903-25310
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
