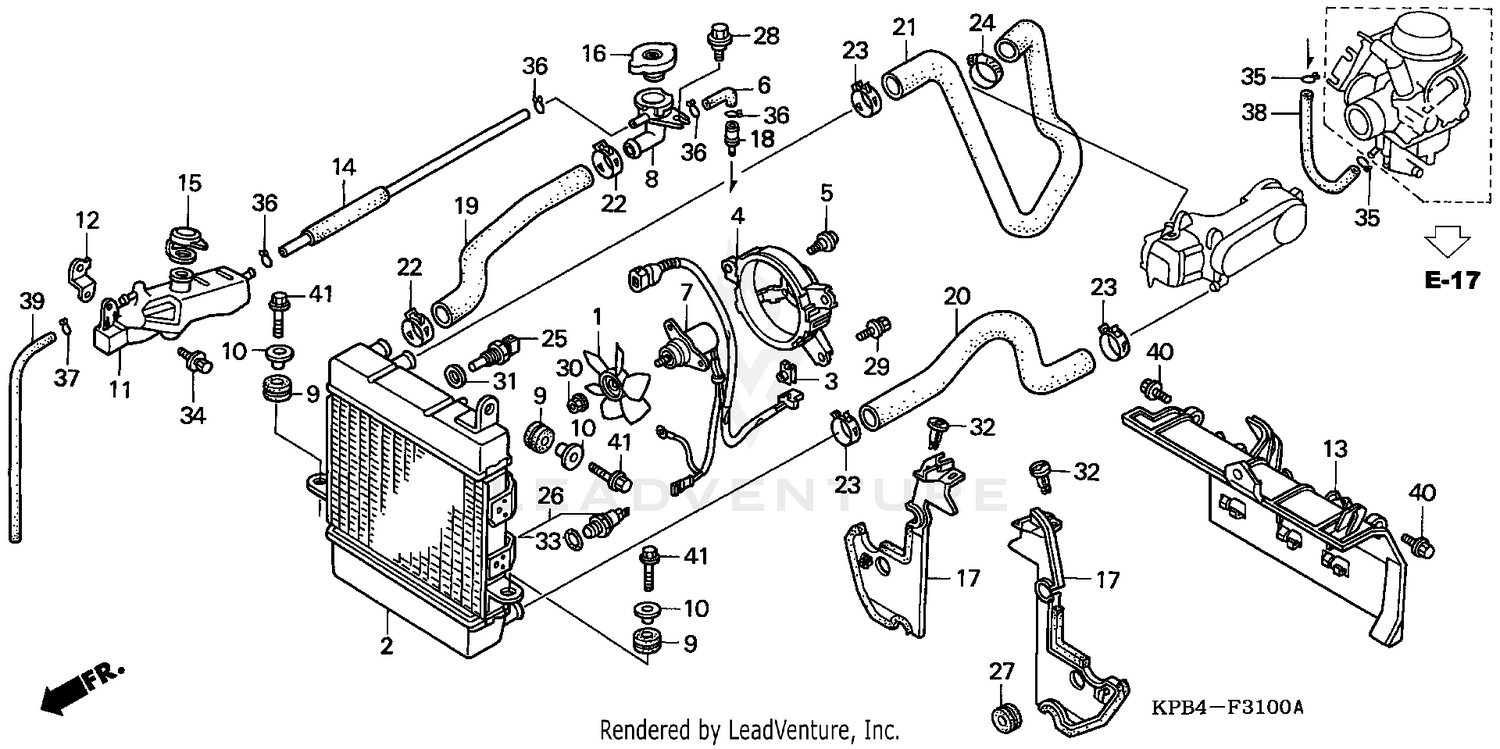

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FAN, COOLING
19009-KT7-000
|
$66.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-KFG-J01
Superseded by 19010-KTB-003
|
$349.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD
19015-KFG-J01
|
$54.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN (4X8.5)
19016-KEA-003
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, CARBURETOR FILLER
19017-KFG-D10
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, CARBURETOR FILLER
19017-KFG-000
Superseded by 19017-KFG-D10
|
$3.25 | ||
|
Unavailable |
|||
|
#7
MOTOR, COOLING FAN
19030-KFG-J01
|
$181.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
NECK, FILLER
19039-KM1-004
|
$33.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVE
19101-KFG-000
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, RESERVE TANK
19102-KFG-000
|
$4.45 | ||
|
Unavailable |
|||
|
#13
DUCT B, AIR
19103-KFG-000
|
$45.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, RESERVE TANK
19104-KPB-000
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, RESERVE TANK
19104-MB0-700
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RADIATOR FILLER
19111-KE1-003
Superseded by 19111-KE1-013
|
$41.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RADIATOR FILLER
19111-KE1-013
|
$41.78 | ||
|
Unavailable |
|||
|
#17
DUCT A, AIR
19120-KFG-000
|
$28.71 | ||
|
Unavailable |
|||
|
#18
JOINT, TUBE
19126-KM1-010
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, FILLER
19126-KPB-000
|
$10.46 | ||
|
Unavailable |
|||
|
#20
HOSE A, WATER
19501-KFG-J00
|
$20.26 | ||
|
Unavailable |
|||
|
#21
HOSE B, WATER
19503-KFG-J00
|
$31.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HOSE (22-29MM)
19513-MF5-000
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HOSE (22-29MM)
19513-MM4-003
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#22
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#23
CLIP B, HOSE
19514-ME9-003
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#25
SENSOR, WATER TEMPERATURE
36151-KFG-003
|
$45.07 | ||
|
Unavailable |
|||
|
#26
SWITCH ASSY., THERMO
37760-MT2-003
Superseded by 37760-MR1-003
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET, DRAIN HOLE (25MM)
82871-671-000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT-WASHER (6X16)
90120-KCR-003
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, TOOTHED (3MM)
90308-KM3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPECIAL (12MM)
90454-MC7-000
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, TRIM (Honda Code 4529715)
90683-GAZ-003
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#34
BOLT-WASHER (6X12)
93404-06012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, TUBE (B7) CLIP, TUBE (B6.5)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CLIP, TUBE (C11)
95002-70000
|
$1.72 | ||
|
Unavailable |
|||
|
#38
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BULK HOSE, VACUUM (7X3000) (7X730)
95005-70003-30M
|
$28.40 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
