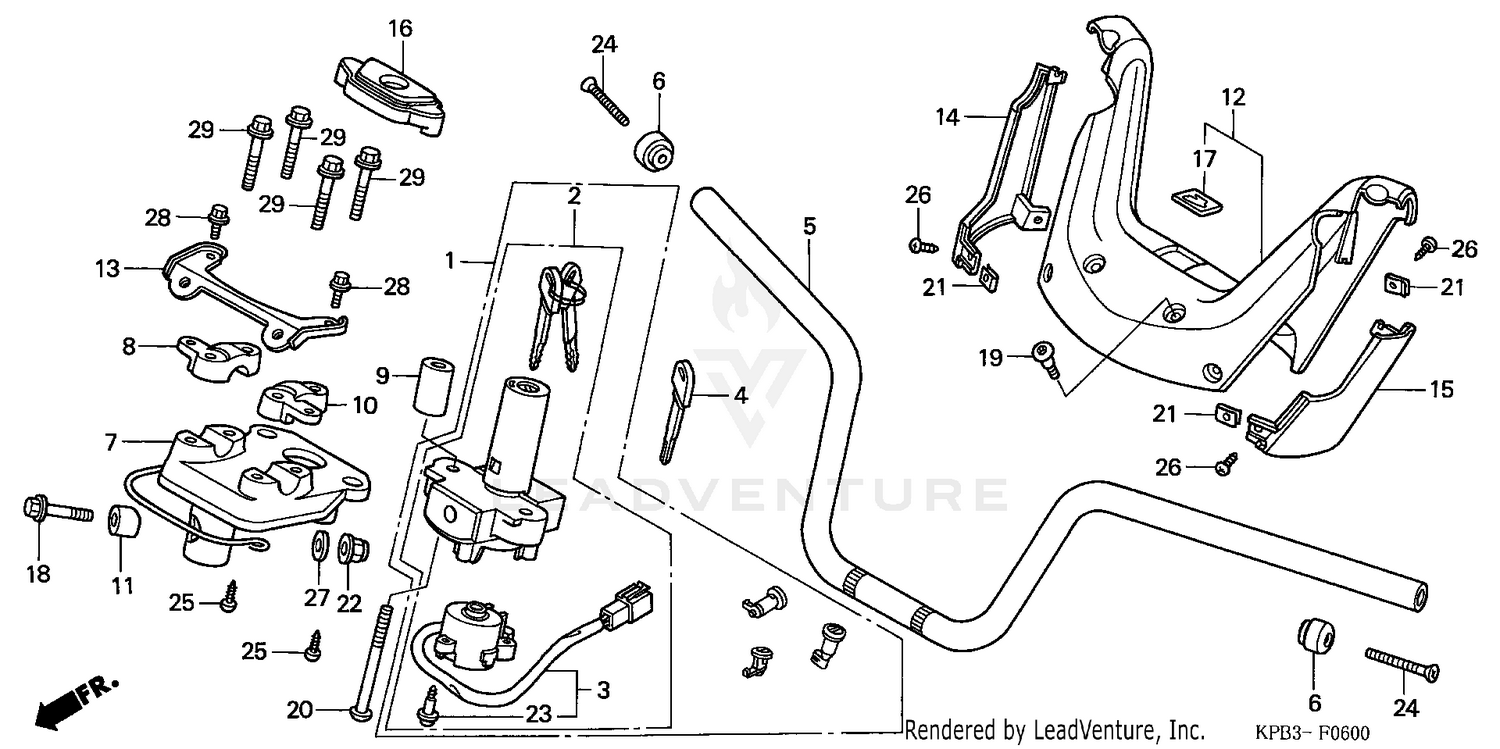

Handlebar@handle Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK SET
35010-KPB-670
|
$176.53 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK
35100-KPB-641
|
$132.38 | ||
|
Unavailable |
|||
|
#3
BASE, CONTACT
35101-KPB-007
|
$45.22 | ||
|
Unavailable |
|||
|
#4
KEY, BLANK
35121-KPB-007
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
HANDLEBAR
53100-KPB-010
|
$127.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT, HANDLE
53104-KY6-010
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
POST, HANDLE
53110-KPB-000
|
$83.66 | ||
|
Unavailable |
|||
|
#8
HOLDER, R. HANDLE (UPPER)
53111-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, HANDLE
53118-KPB-000
|
$5.09 | ||
|
Unavailable |
|||
|
#10
HOLDER, L. HANDLE (UPPER)
53121-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, HANDLE SETTING
53125-GN5-900
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HANDLE (UPPER) *NH220R* (SMOKE GRAY)
53250-KPB-000ZA
|
$66.00 | ||
|
Unavailable |
|||
|
#13
STAY, HANDLE COVER
53255-KPB-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, R. HANDLE (LOWER) *NH220R* (SMOKE GRAY)
53261-KPB-000ZA
|
$14.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, L. HANDLE (LOWER) *NH220R* (SMOKE GRAY)
53271-KPB-000ZA
|
$19.08 | ||
|
Unavailable |
|||
|
#16
COVER, MAIN SWITCH *NH220R* (SMOKE GRAY)
53281-KPB-640ZA
|
$9.76 | ||
|
Unavailable |
|||
|
#17
EMBLEM, WING MARK
86150-MN8-300
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (10X50)
90106-GN5-900
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL (6MM)
90106-KCZ-000
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ONE-WAY (8X58)
90164-KPB-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING (4MM)
90302-KPB-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING (3X16)
91059-KY2-711
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, OVAL (6X35)
93700-06035-0G
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (3X8)
93901-32120
|
$0.87 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING (4X12)
93903-34380
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (10.5X22X1.6)
94101-10800
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X35)
95701-08035-08
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
