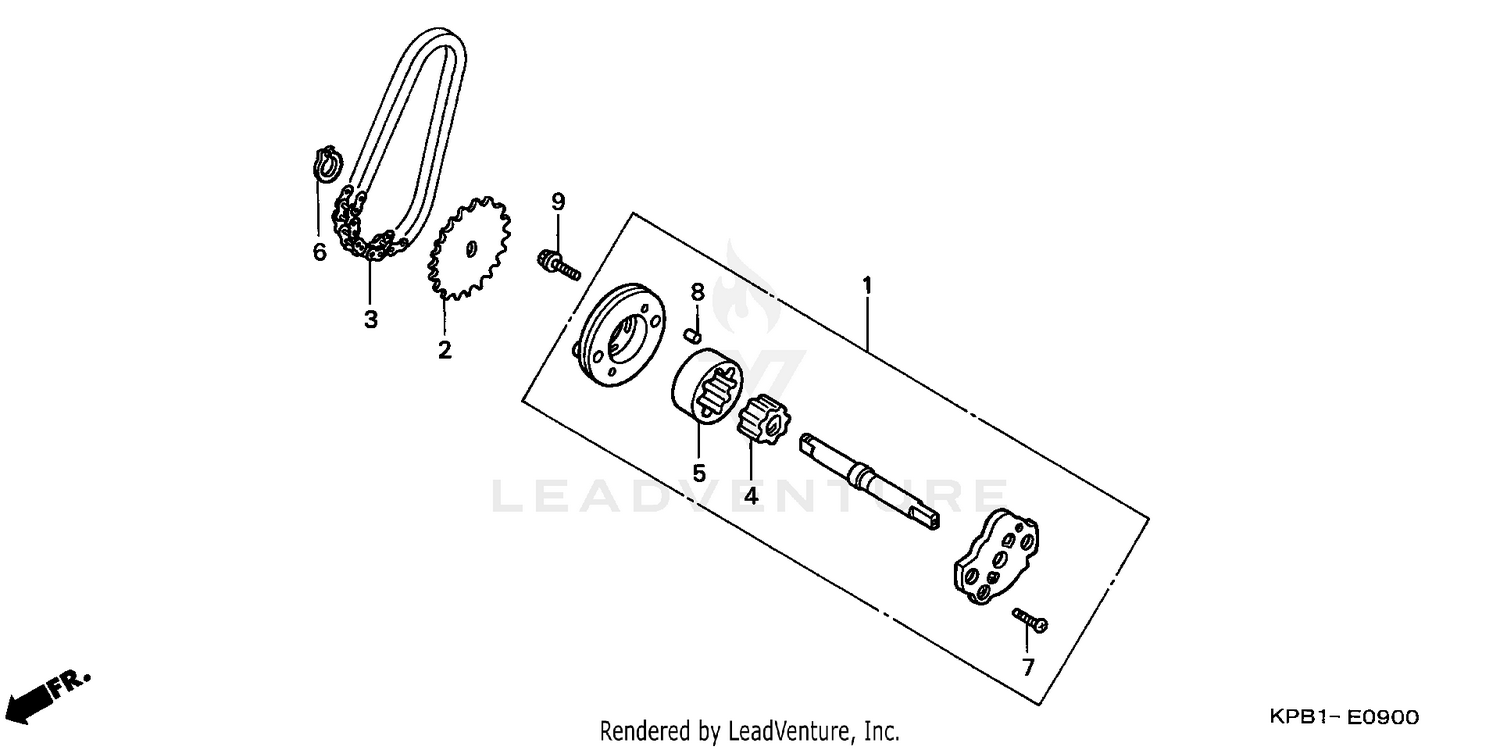

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-KAB-000
|
$82.40 | ||
|
Unavailable |
|||
|
#2
SPROCKET, OIL PUMP DRIVEN
15133-KAB-000
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, OIL PUMP
15141-KAB-003
|
$22.29 | ||
|
Unavailable |
|||
|
#4
ROTOR, OIL PUMP (INNER)
15331-KAB-000
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR, OIL PUMP (OUTER) (YAMADA) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)
15332-921-003
|
$30.61 | ||
|
Unavailable |
|||
|
#6
CIRCLIP (OUTER) (8MM)
90604-HA0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN (3X12)
93500-03012-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCREW, PAN (3X12)
93500-03012-1A
Superseded by 93500-03012-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#8
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
