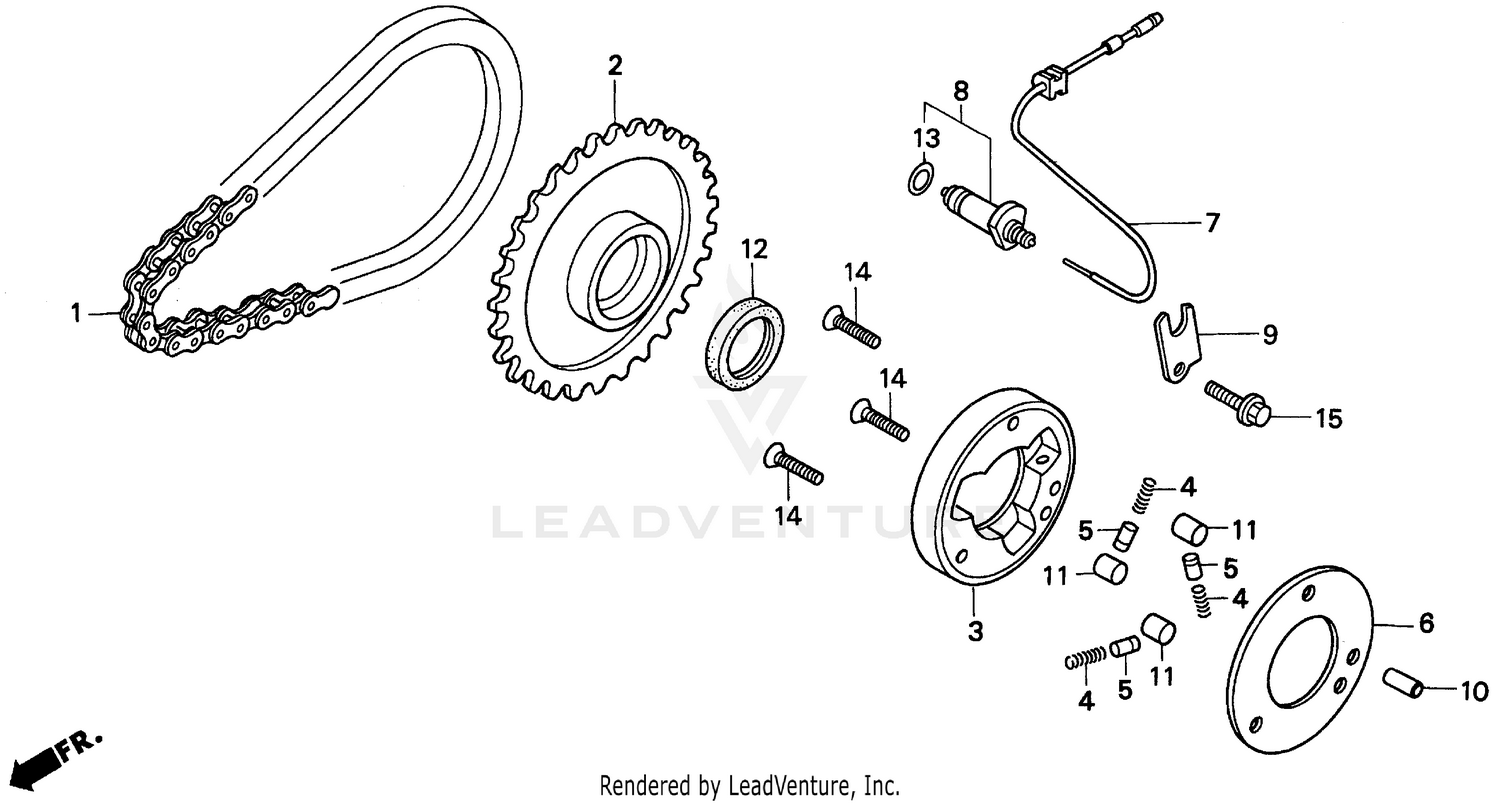

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, STARTING (56L)
28101-KB4-671
|
$46.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, STARTING (38T)
28110-KB4-671
|
$118.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH, STARTER (OUTER)
28120-201-040
|
$105.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, STARTING CLUTCH ROLLER
28125-253-020
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, STARTING CLUTCH ROLLER SPRING
28126-253-030
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, STARTING CLUTCH SIDE
28128-253-030
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-WIRE, NEUTRAL SWITCH
32975-KC2-960
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONTACT, NEUTRAL SWITCH
35750-GS3-003
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, NEUTRAL SWITCH SETTING
35752-KEN-620
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, KNOCK (6X17.5)
90701-250-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER (10.2X9.5)
91101-253-020
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (22X31X5) (ARAI)
91205-965-003
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (7X1.7)
91312-107-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, FLAT (6X20)
93600-06020-0A
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
