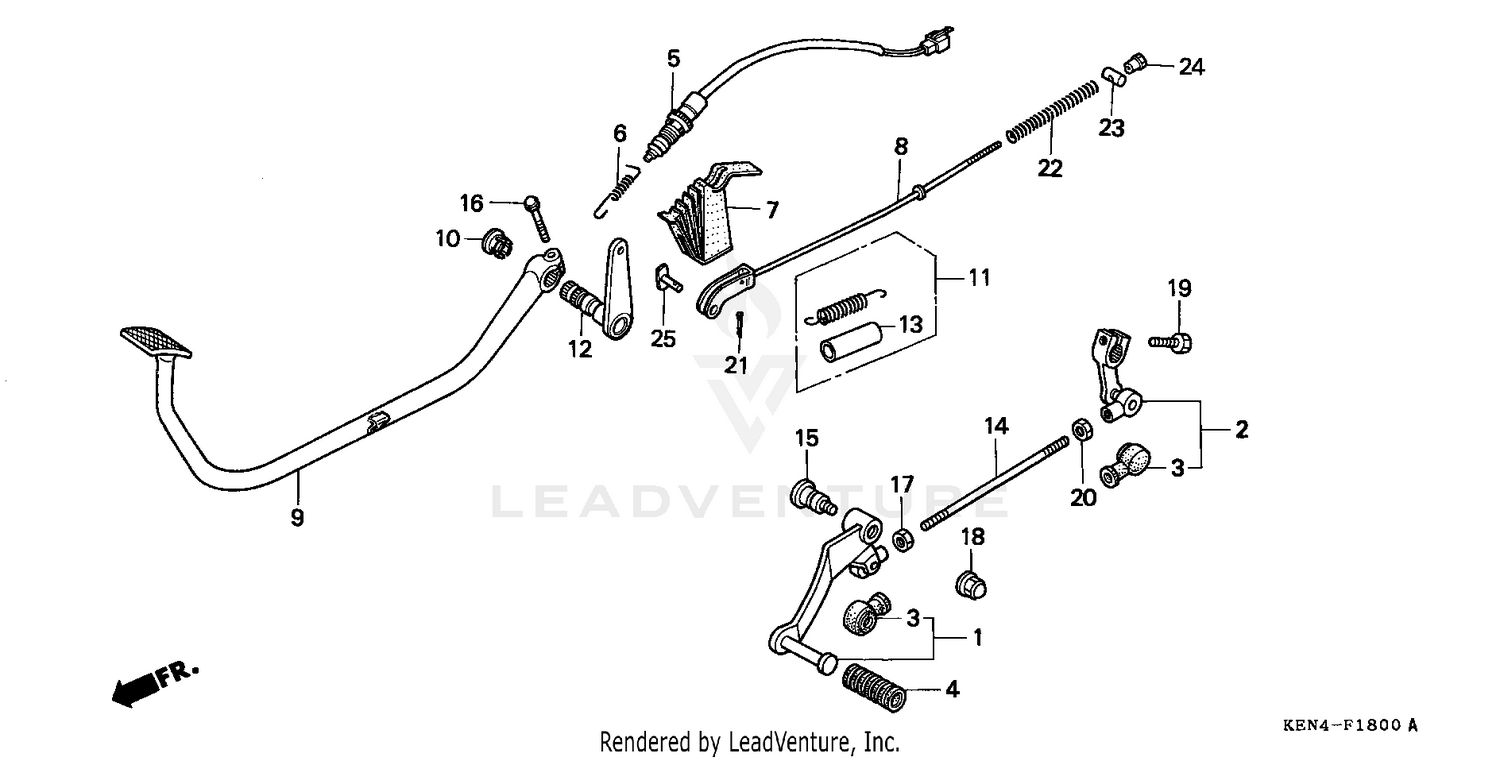

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24705-KEB-305
Superseded by 24705-KEB-900
|
$101.64 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, GEARSHIFT
24705-KEB-900
|
$101.64 | ||
|
Unavailable |
|||
|
#2
ARM, GEARSHIFT
24710-KEB-901
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-KR3-671
Superseded by 35350-KR3-672
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-KR3-672
|
$18.20 | ||
|
Unavailable |
|||
|
#6
SPRING, STOP SWITCH
35357-KR3-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, RR. BRAKE ARM
43411-KR3-000
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, RR. BRAKE
43451-KEN-670
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE (COO)
46500-KEN-305
|
$109.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE (COO)
46500-KEN-670
Superseded by 46500-KEN-305
|
$109.95 | ||
|
Unavailable |
|||
|
#10
CAP, RR. BRAKE SPINDLE
46511-KR3-000
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING ASSY., RR. BRAKE RETURN
46513-KR3-600
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, RR. BRAKE PIVOT
46515-KR3-000
|
$71.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, BRAKE PEDAL SPRING
46516-KR3-600
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, TIE ROD
90065-KR3-000
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CHANGE PIVOT
90115-KAF-000
|
$23.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, SPECIAL FLANGE (8X25)
90123-MM2-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE CAP (8MM)
90208-438-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X20) BOLT, FLANGE (6X20)
92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING A, BRAKE ROD
95014-73300
Superseded by 95014-73100
|
$1.47 | ||
|
Unavailable |
|||
|
#23
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, JOINT (C)
95015-53000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
