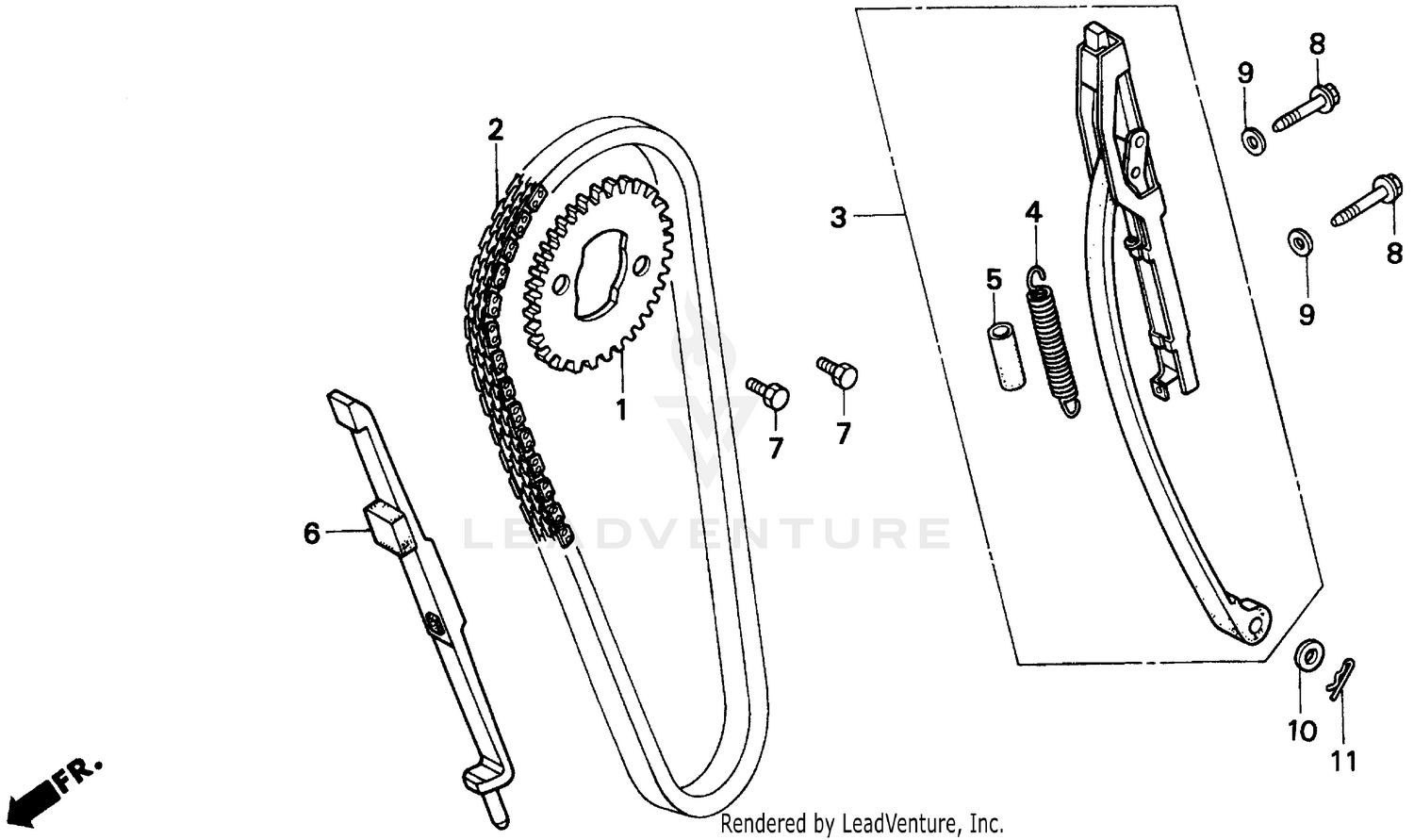

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (38T)
14321-KB4-671
|
$47.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (98L)
14401-KBG-671
|
$200.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
14500-KB4-670
|
$212.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CAM CHAIN TENSIONER
14516-KB4-670
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, TENSIONER SPRING
14539-KB4-670
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, CAM CHAIN
14550-KB4-671
|
$45.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. KNOCK (7X12) BOLT, FLANGE KNOCK (7X14)
90086-413-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SPECIAL (6X28)
90125-KB4-670
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER A, TACHOMETER
90444-611-920
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, LOCK (6MM)
94251-06000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
