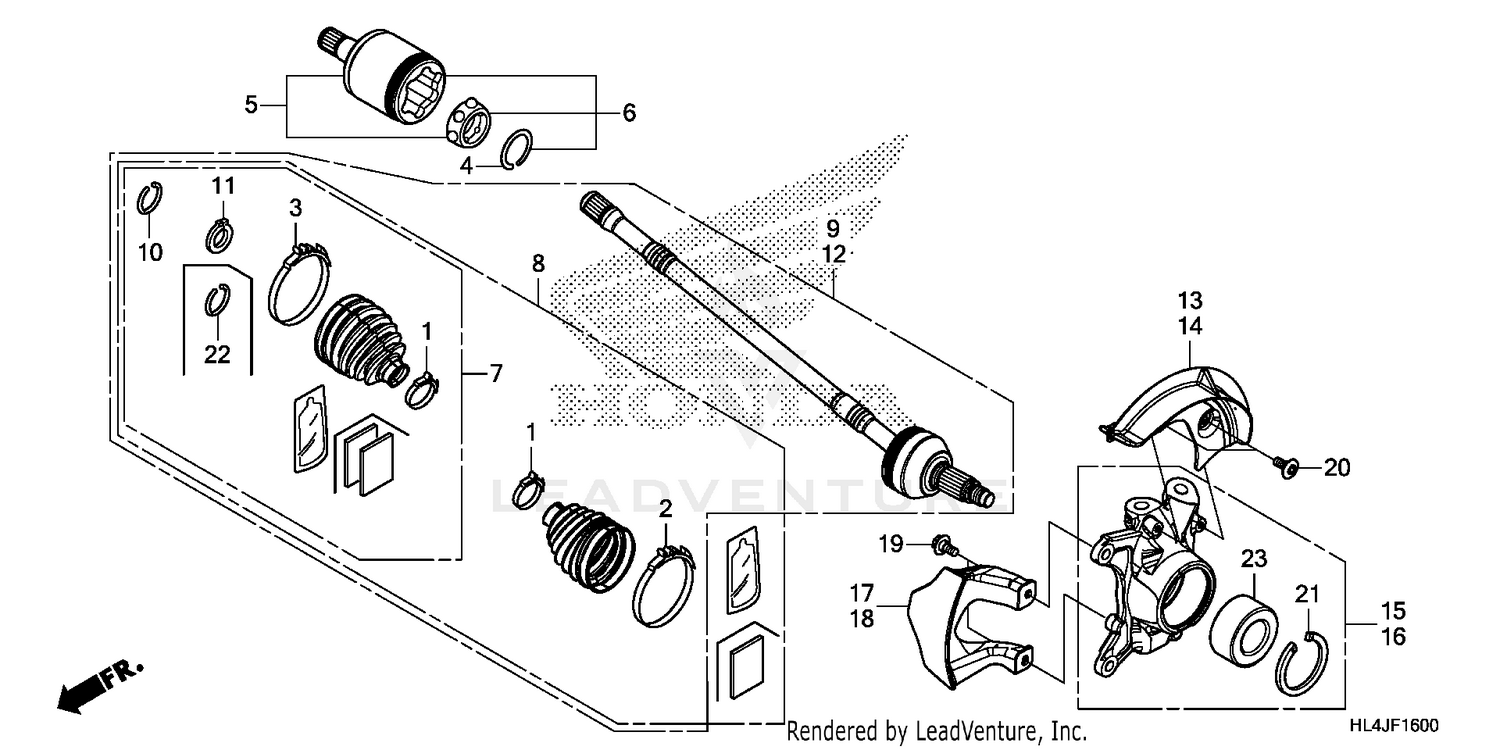

Front Knuckle@driveshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SHAFT BOOT
42215-HL4-F41
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND B, OUTBOARD
42216-HL4-F41
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND B, INBOARD
42226-HL4-F41
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT COMP, INBOARD
44220-HL4-F41
Superseded by 44220-HL4-F42
|
$120.80 | ||
|
Unavailable |
|||
|
#7
BOOT SET, FR. INBOARD
44230-HL4-F41
|
$65.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET, FR.
44240-HL4-F41
|
$94.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT SET, R. FR. DRIVE
44250-HL4-F41
|
$294.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING B, INBOARD SNAP
90654-HL4-F41
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT SET, L. FR. DRIVE
44350-HL4-F41
|
$294.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPLASH GUARD, R. FR.
45255-HL4-A00
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPLASH GUARD, L. FR.
45256-HL4-A00
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
KNUCKLE ASSY., R. FR.
51200-HL4-A00
|
$608.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNUCKLE ASSY., L. FR.
51250-HL4-A00
|
$608.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, R. FR. OUTBOARD
51325-HL4-A00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, L. FR. OUTBOARD
51326-HL4-A00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (6X15)
90114-HP0-A00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (75)
90651-HL3-A40
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, OUTBOARD SNAP
90653-HL4-F41
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, ANGULAR BALL (40X74X36)
91054-HL3-A41
|
$39.55 | ||
|
Available to order. Add to View Price |
|||
