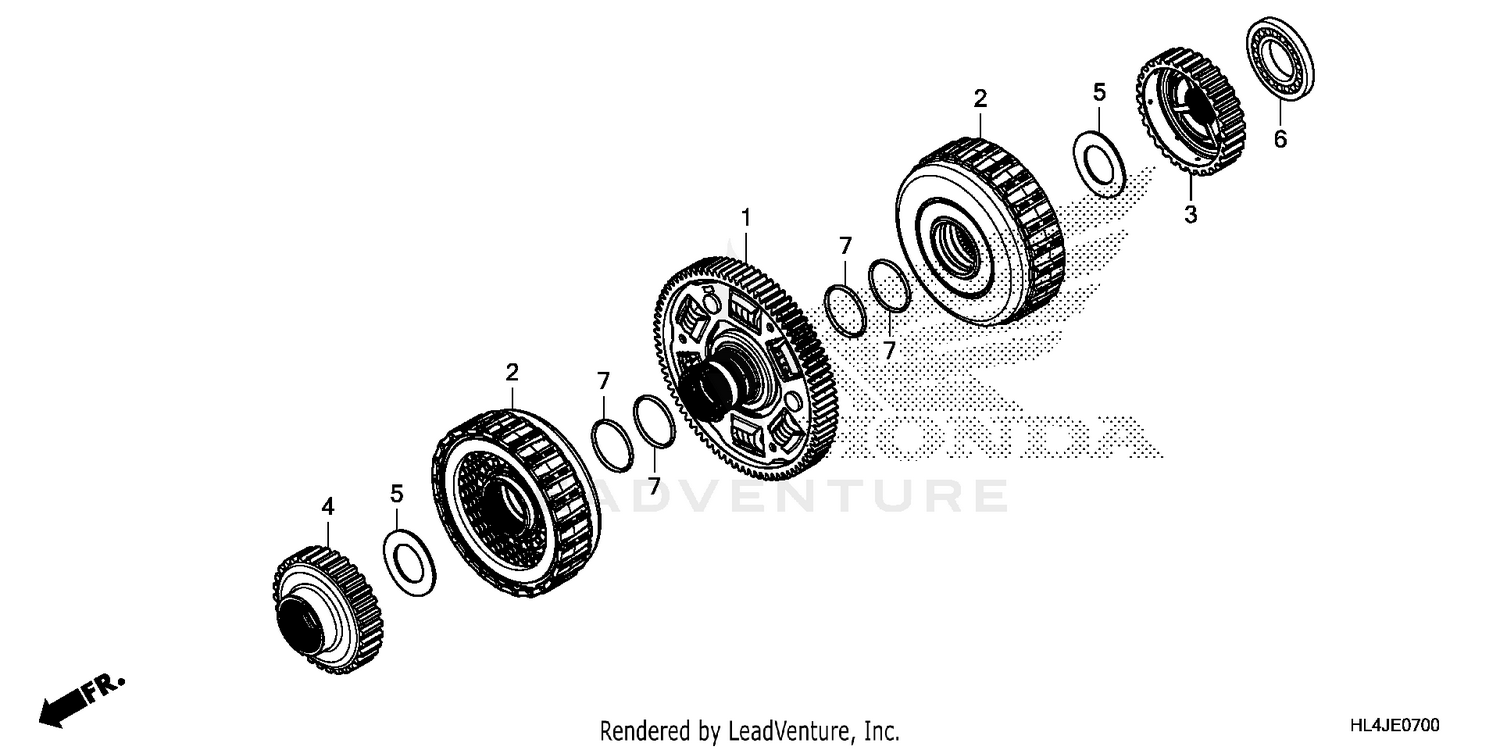

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN (81T)
22100-HL4-003
|
$741.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH ASSY.
22500-HL4-003
|
$581.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, FIRST CLUTCH GEAR (30T)
23405-HL4-010
|
$166.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, SECOND CLUTCH GEAR (30T)
23406-HL4-000
|
$101.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (29.5X50X2)
90403-HL4-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, RADIAL BALL (40X68X7.5)
91029-HL4-003
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (35X2.2)
91302-RGC-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
