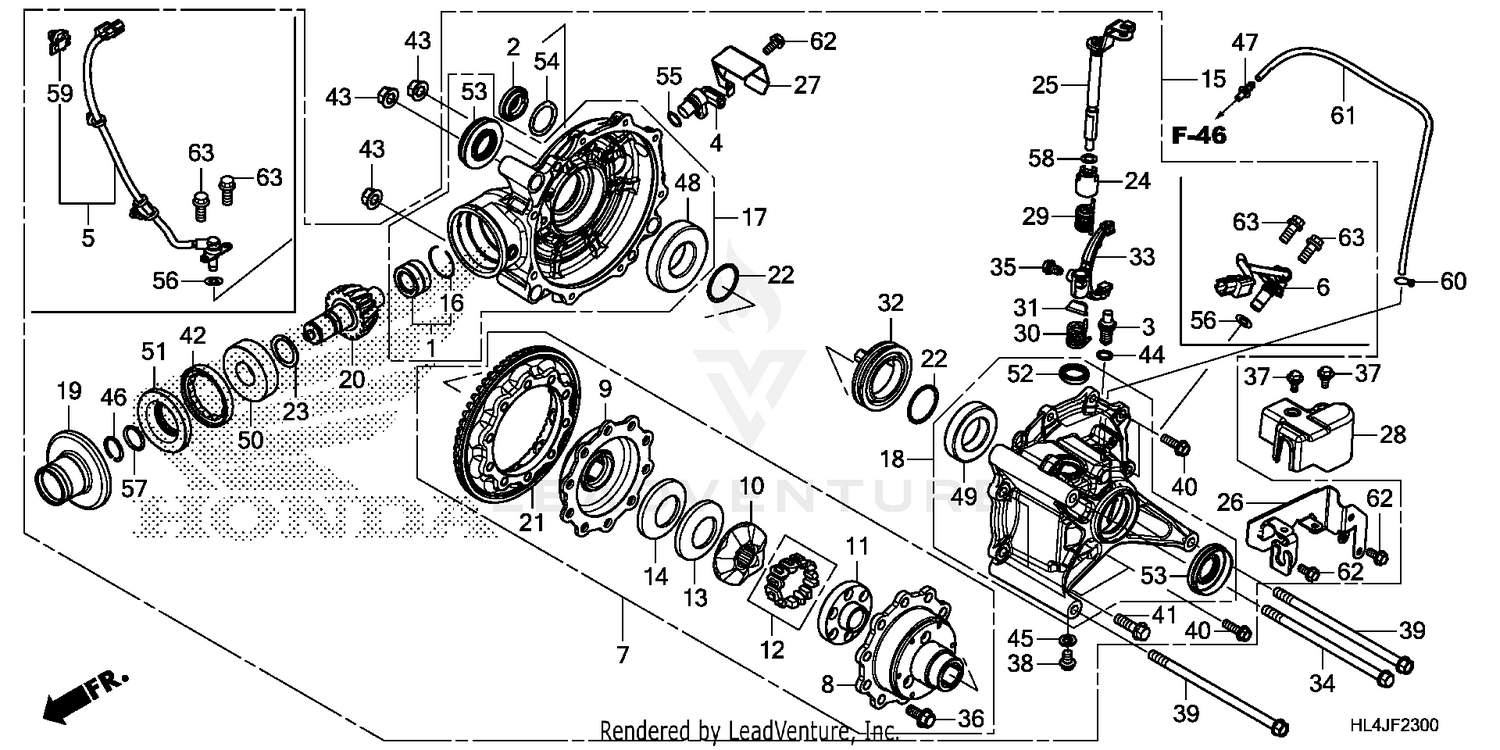

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06911-HL4-A00
|
$29.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., NEUTRAL
35600-HN7-003
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, R. RR. WHEEL SPEED
38510-HL4-F41
|
$215.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR, L. RR. WHEEL SPEED
38515-HL4-F41
|
$215.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIFFERENTIAL ASSY., RR.
41100-HL4-A01
|
$784.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, RR. DIFFERENTIAL
41111-HL4-A01
|
$116.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RR. DIFFERENTIAL CASE
41112-HL4-A01
|
$48.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, FACE (68) (A)
41131-HL4-A01
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAM, FACE (68) (B)
41132-HL4-A01
|
$29.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOLLOWER SET, CAM
41140-HL4-A01
|
$63.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM A (1.3)
41151-HL4-A01
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM B (1.4)
41152-HL4-A01
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM C (1.5)
41153-HL4-A01
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM D (1.6)
41154-HL4-A01
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM E (1.7)
41155-HL4-A01
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, DIFFERENTIAL SIDE CONED
41161-HL4-A01
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, RR. FINAL
41300-HL4-F40
Superseded by 41300-HL4-F42
|
$1,279.35 | ||
|
Unavailable |
|||
|
#15
GEAR, RR. FINAL
41300-HL4-F41
Superseded by 41300-HL4-F42
|
$1,279.35 | ||
|
Unavailable |
|||
|
#16
RING, STOPPER
41305-HL4-A00
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE SUB-ASSY., RR. FINAL GEAR
41311-HL4-F40
|
$168.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER SUB-ASSY., RR. FINAL GEAR
41312-HL4-F40
|
$153.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, RR. PINION
41330-HL4-A00
|
$38.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, RR. PINION (16T)
41421-HL4-A00
|
$261.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, RR. RING (54T)
41431-HL4-A00
|
$349.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM A, FINAL GEAR (0.64)
41447-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM B, FINAL GEAR (0.70)
41448-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM C, FINAL GEAR (0.76)
41449-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM D, FINAL GEAR (0.82)
41450-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM E, FINAL GEAR (0.88)
41451-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM F, FINAL GEAR (0.94)
41452-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM G, FINAL GEAR (1.00)
41453-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM H, FINAL GEAR (1.06)
41454-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM I, FINAL GEAR (1.12)
41455-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM J, FINAL GEAR (1.18)
41456-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM K, FINAL GEAR (1.24)
41457-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM L, FINAL GEAR (1.30)
41458-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM M, FINAL GEAR (1.36)
41459-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM N, FINAL GEAR (1.42)
41460-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM O, FINAL GEAR (1.48)
41461-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM P, FINAL GEAR (1.54)
41462-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM Q, FINAL GEAR (1.60)
41463-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM A, PINION GEAR (1.32)
41450-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM B, PINION GEAR (1.38)
41451-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM C, PINION GEAR (1.44)
41452-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM D, PINION GEAR (1.50)
41453-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM E, PINION GEAR (1.56)
41454-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM F, PINION GEAR (1.62)
41455-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIM G, PINION GEAR (1.68)
41456-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, RR. DIFFERENTIAL LOCK
41607-HL4-A00
|
$30.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHAFT, RR. DIFFERENTIAL LOCK
41630-HL4-A00
|
$58.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, RR. DIFFERENTIAL LOCK
41710-HL4-A00
|
$31.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, RR. SPEED SENSOR
41721-HL4-A00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, RR. DIFFERENTIAL LOCK ARM
41727-HL4-A00
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING A, RR. DIFFERENTIAL LOCK
41803-HL4-A00
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING B, RR. DIFFERENTIAL LOCK
41804-HL4-A00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
STOPPER, RR. DIFFERENTIAL LOCK SHAFT
41805-HL4-A00
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
SLEEVE, RR. DIFFERENTIAL LOCK
41827-HL4-A00
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#33
SWINGARM, DIFFERENTIAL LOCK
41850-HL4-A00
|
$94.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, ENGINE HANGER (10X188)
90101-KCW-850
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SPECIAL (6MM)
90102-HL4-A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (10X23)
90104-HL4-A00
|
$30.08 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FR. FENDER FIXING
90106-MM9-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (10X200)
90117-166-600
Superseded by 95800-10200-00
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (10X200)
95800-10200-00
|
$6.11 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, LOCK (72MM)
90242-HL1-A00
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, NEUTRAL SWITCH
90443-KR0-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
CLIP, PISTON PIN
90601-ZG3-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#47
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#48
BEARING, RADIAL BALL (6208)
91056-HL4-A01
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING, RADIAL BALL (6008)
91057-HL4-A01
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#50
BEARING, RADIAL BALL (63/28)
91064-HL4-A01
|
$37.85 | ||
|
Available to order. Add to View Price |
|||
|
#51
OIL SEAL (36X75X8)
91251-HL3-A01
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#52
OIL SEAL (24X32X5)
91252-HL4-A01
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#53
OIL SEAL,53X70X7
91254-HL4-F41
Superseded by 91254-HL4-F43
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#53
OIL SEAL,53X70X7
91254-HL4-F42
Superseded by 91254-HL4-F43
|
$8.62 | ||
|
Unavailable |
|||
|
#54
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#56
O-RING (1.5X9.5)
91306-MG3-000
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#56
O-RING (1.5X9.5)
91306-105-690
Superseded by 91306-MG3-000
|
$2.43 | ||
|
Unavailable |
|||
|
#57
O-RING (24X3)
91312-KM9-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#58
O-RING (8.5X1.5) (L. SIDE ONLY)
91352-GAZ-930
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLIP, CONNECTOR
91565-S3Y-003
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#61
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)
95005-35001-30M
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
