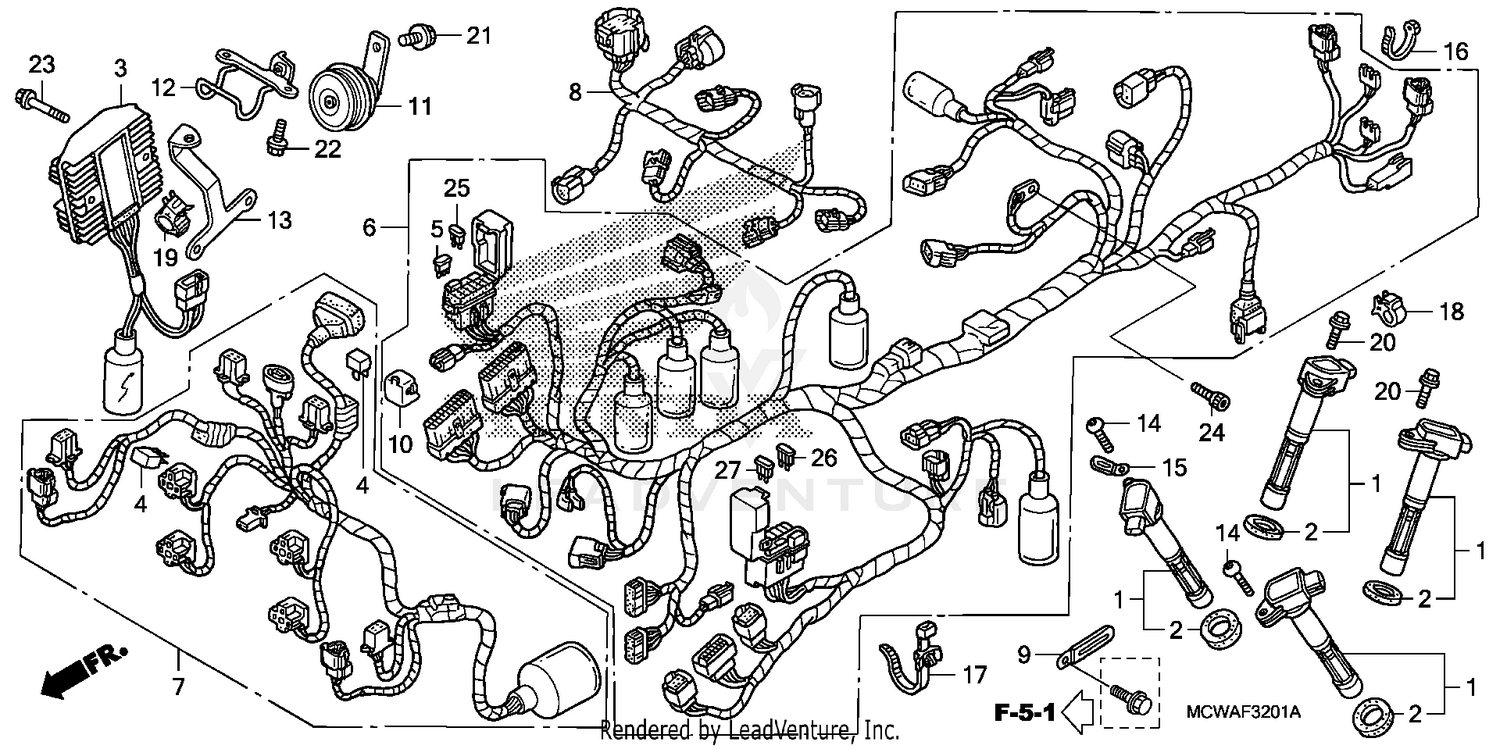

Wire Harness (abs) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, PLUG HOLE
30520-MCW-H30
|
$129.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATOR
31600-MCW-D61
|
$271.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER, SILICON
31700-MM8-610
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-MCW-K70
|
$979.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, FR.
32102-MCW-K60
|
$158.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUB-HARNESS, INJECTOR
32103-MCW-D00
|
$121.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, WIRE HARNESS
32170-443-850
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
HORN (HIGH)
38110-MCW-D01
|
$44.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, HORN
50155-MCW-D00
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, R. FR. SIDE COWL
64514-MCW-D00
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6X22)
90085-KFB-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP (4X50)
90601-KJ9-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
STRAP, CABLE
90672-MCW-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X12)
95701-08012-07
|
$1.88 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (6X12)
96600-06012-08
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
